Photo Index - Grand Rapids Sash Pulley Co. - "Quint" Sash pulley drill

Machinery Photo Index

Manufactured/Badged by:
Grand Rapids Sash Pulley Co.
Grand Rapids Sash Pulley Co.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Other
Machine Size:	1" x 5
Submitted By:	Tony Cruz

Machine Specifications
Description/Model:	"Quint" Sash pulley drill
Date of Manufacturer:	unknown
Serial Number:	unknown
Last Updated	4/2/2007 6:26:34 PM

Comments:

This came as part of a Parks Planing Mill Special I bought a while back. The machine was used to produce windows in the Ironbound section of Newark, NJ. The assembly was mounted over a horizontal table. The rod was adjusted to orient the fixture parallel with the table and of course kept the fixture from spinning. I always thought the pulley mortises were made with a brace and bit. This makes much more sense. A Google search yeilded only 1 listing of a similar 3 bit fixture sold on the American Artifacts website. Patrick Haire also mentions a 3 bit drill in a drill press listing.

The bits are all 1", the center 3 are longer and provide clearance for the pulley. The end bits are shorter and limited with the depth stop provide a mortise for flange. I guess the bit point also acts as a predrill for the mounting screw.

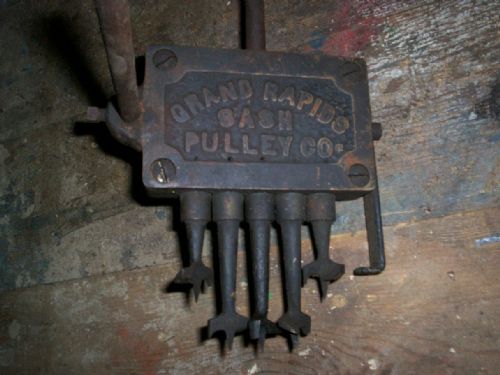

Photo 1:

Comments: front
Source: My Kodak

Direct Link
IMG Code

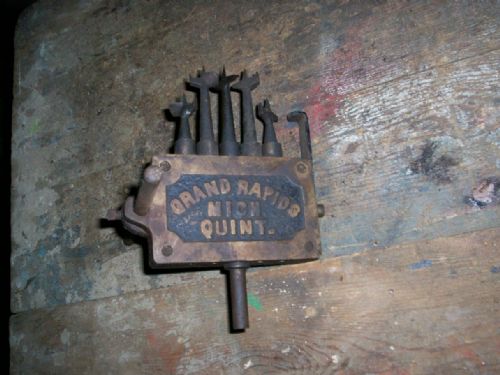

Photo 2:

Comments: back
Source: My Kodak

Direct Link
IMG Code

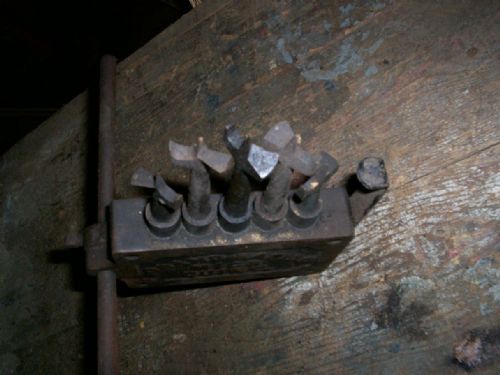

Photo 3:
