Photo Index - Sears | Craftsman - 113.12550

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
Emerson Electric Co., St. Louis, MO; Ferguson, MO; Paris, TN

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Motor
Machine Size:	1/2 hp - 1725 rpm - 56 frame
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	113.12550
Date of Manufacturer:	1977
Serial Number:
Last Updated	3/24/2024 6:33:46 PM

Comments:

>>MACHINE<<
Craftsman/Emerson general application power tool, sleeve bearing, dual shaft motor.
1/2 hp,115V, 8.7A, capacitor start-induction run.
Shafts: 1/2” dia x 1.5” with flat, 5/8” dia x 1-7/8” with 3/16” keyway.
Rigid base with adjustable orientation.
Note: Most catalog entries for this motor list it as a single 1/2" shaft.

>>HISTORY<<
September 2018:
Obtained at ArnFest with IRM 113.213710 drill press.
(Drill press damaged beyond repair and parted out.)

March 2024:
Test run with reversing switches.

Connections with Craftsman 2982/Furnas A14 to MOTOR:
A – T5, 1 – open, 2 – REV LEAD, B – LINE (black), 3 – T1, 4 – REV LEAD, LINE (white) – T4

Connections with Craftsman 2018/Furnas R4C to MOTOR:
1 – REV LEAD, 2 – LINE (white) & T1, 3 – T5, 4 – REV LEAD, 5 – T4, 6 – LINE (black)

Photo 1:

Comments: Fan end.
Source: iPhone 12Pro camera-existing light

Direct Link
IMG Code

Photo 2:

Comments: Terminal box end. Wood screw in place of missing rubber oil plug.
Source: iPhone 12Pro camera-existing light

Direct Link
IMG Code

Photo 3:

Comments: Shaft cover removed.
Source: iPhone 12Pro camera-existing light

Direct Link
IMG Code

Photo 4:

Comments: Tag.
Source: iPhone 12Pro camera-existing light

Direct Link
IMG Code

Photo 5:

Comments: Terminal box.
Source: iPhone 12Pro camera-existing light

Direct Link
IMG Code

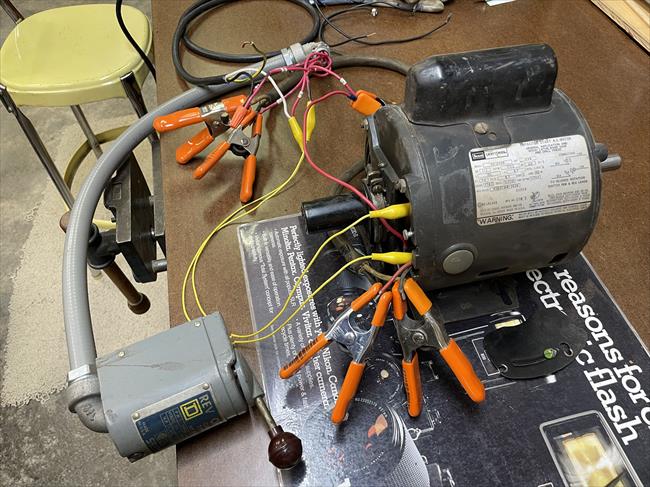

Photo 6:

Comments: Test run with reversing switch.
