Photo Index - Eck Dynamo & Motor Co. - 1/4 hp ?

Machinery Photo Index

Manufactured/Badged by:
Eck Dynamo & Motor Co.
Belleville. NJ

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Motor
Machine Size:
Submitted By:	William Richardson

Machine Specifications
Description/Model:	1/4 hp ?
Date of Manufacturer:	early 1900s
Serial Number:	35511
Last Updated	7/9/2020 8:58:30 AM

Comments:

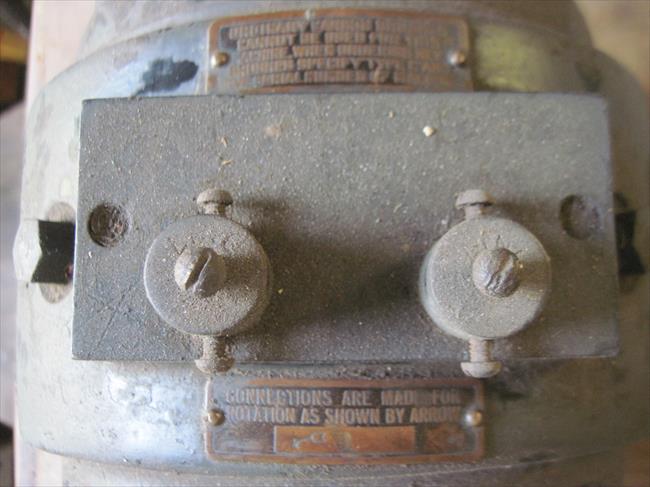

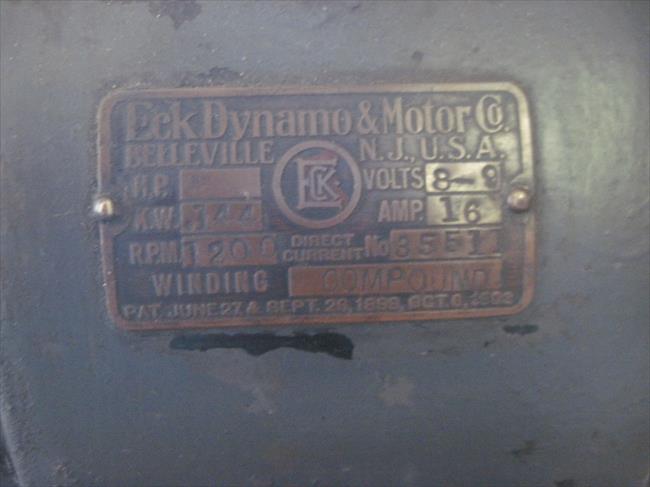

I don't have a lot of history on this motor. I purchased it from a couple out in the country north of Buffalo, NY. They had gotten the motor and a shop full of vintage machinery from an older gentleman that had been a neighbor and is now deceased. I paid $20.00 for the motor and it was the last shop item that they had. I believe that the original paint for the motor was black. Information given on the manufacturers data tag is interesting, from photo #1; HP is not given, but I and the p.o. believe it to be 1/4, Volts 8-9, KW .144, Amp 16, RPM 1200, Direct Current, (what I think is the serial $?) #35511, Winding COMPOUND. The Pat. info in small print is June 27 & Sept 26, 1899 and Oct 6, 1903. The arbor measures 1 1/4" and the steel pulley is 3 1/2". There are two brass tags on the top of the motor's case, from photo #2 the top tag reads....Ordinary Carbon Brushes Cannot Be Used For This Machine. When Ordering New Brushes Specify Type "C" And Giver Serial Number Of Machine. The lower tag reads.......Connections Are Made For Rotation As Shown By Arrow. There is a small arrow pointing to the left, below the print. The motor weighs quite a bit, that dimension will be added. The motor does turn, but I do not know if it will work, I have not tested it electrically.

Patent #s relative to the dates given. June 27, 1899: 627, 488 cut/paste this link into your browser for more info: http://www.datamp.org/patents/displayPatent.php?pn=627488&id=65923
Sept 26, 1899: 633, 641 cut/paste this link into your browser for more info: http://www.datamp.org/patents/displayPatent.php?pn=633641&id=57419
Oct 6, 1903: 740, 635 cut/paste this link into your browser for more info: http://www.datamp.org/patents/displayPatent.php?pn=740635&id=65098

Photo 1:

Comments: Eck Dynamo & Motor Co. Belleville, NJ, USA
Source: my Canon

Direct Link
IMG Code

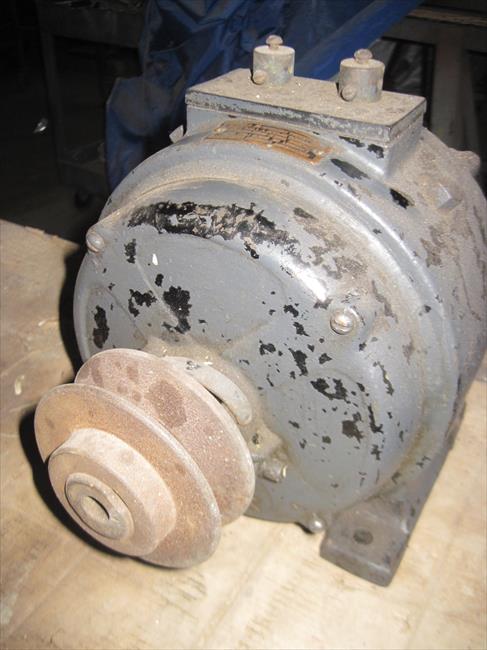

Photo 2:

Comments: Eck Dynamo & Motor Co. Belleville, NJ, USA
Source: my Canon

Direct Link
IMG Code

Photo 3:

Comments: Eck Dynamo & Motor Co. Belleville, NJ, USA
Source: my Canon

Direct Link
IMG Code

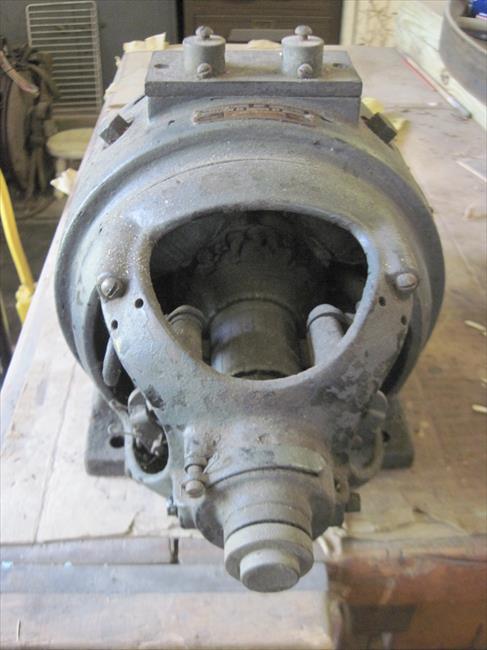

Photo 4:

Comments: Eck Dynamo & Motor Co. Belleville, NJ, USA
Source: my Canon

Direct Link
IMG Code
