Photo Index - C. O. Porter Machinery Co. - Pin Router

Machinery Photo Index

Manufactured/Badged by:
C. O. Porter Machinery Co.
Grand Rapids, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Other
Machine Size:	1/2" collet 3HP 2 speed
Submitted By:	John George

Machine Specifications
Description/Model:	Pin Router
Date of Manufacturer:	1972
Serial Number:
Last Updated	1/25/2006 12:00:00 AM

Comments:

Bought 5/05 Heredon furniture auction, Spruce Pine, NC. FOR $177.10 . approx i,ooo lbs guessing, Motor is frame specific with built in pivot eyes and spring tension is adjustable, Modern wide belt drive. Belt is woven material 2" wide no more then 1/8" thick. T he motor is 3 HP 3450 rpm @ 60 Hz and 2850 @ 50 Hz which produces speeds of 20,700 rpm and 17,280 rpm . 220/440 3~ . This design is well thought out and simply designed to run in production and maintained by the total neglect departmentuntil it was replaced by Shoda 5 head CNC s which are pobably on the way to Mexico or south america because china only buys in order to copy. its interesting they don't like RED when it comes to there GPN. Well, the smaller footpedal when depressed, lowers the following pin into the template, pushing further down presses the large foot pedal down which raises the router up into the the work piece to be copied under the template. pushing the large pedal only releases the router bit back safely under the machine table , while at the same time releases the overarm following pin.This allows you to safely keep both hands on the tempale at all times while concentrating on what you're doing. It also has limiting adjustments to accomplish this safely also has a hand brake lever and spindle lock for bit changes. Well built solid design 90% AMERICAN MADE in 1972 before getting your hands dirty was bad, boy I must really be old!

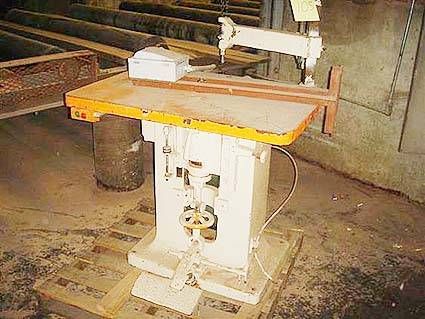

Photo 1:

Comments: thought it might be a Northfield or Moak
Source: Fugi

Direct Link
IMG Code

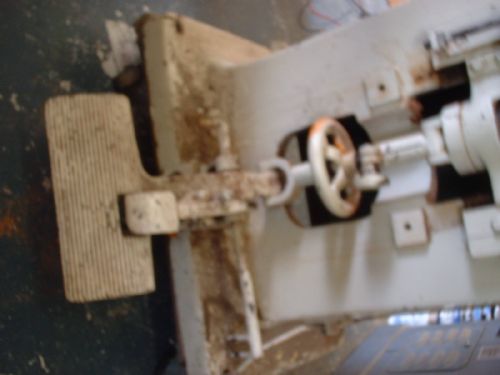

Photo 2:

Comments: you can see the both pedals and hand brake and other adjustments and stops
Source: Fugi

Direct Link
IMG Code

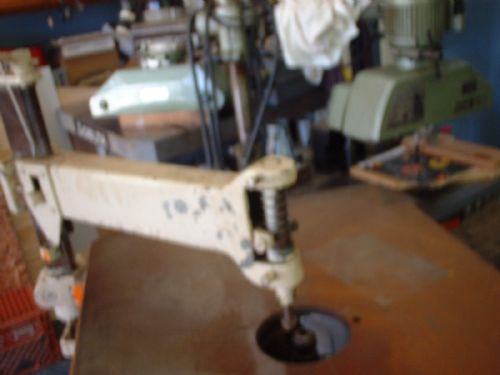

Photo 3:

Comments: Oh that tablle looks like its time to beat the hell out of it with some sandpaper
