Photo Index - Burke Machine Tool Co. - # 2 horzontal mill 2hp

Machinery Photo Index

Manufactured/Badged by:
Burke Machine Tool Co.
Cleveland, OH; Conneaut, OH; Cincinnati, OH

True Manufacturer:
Burke Machine Tool Co., Cleveland, OH; Conneaut, OH; Cincinnati, OH

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Mill, Horizontal
Machine Size:	30" X axis feed
Submitted By:	Chaz Jones

Machine Specifications
Description/Model:	# 2 horzontal mill 2hp
Date of Manufacturer:	????
Serial Number:	#2 6552
Last Updated	5/14/2017 6:52:11 AM

Comments:

I acquired this machine through Ebay. I can't find an information on the Burke #2 anywhere. It has a huge 2hp motor, a NMTB 40 spindle, and a rack and pinion for the X axis. The seller told me he bought the machine from an old brass foundry, I had to clean out about 10 pounds of brass chips when I first received it. Most of the ways look great still has the oil scraping visible. The spindle has no run out and the X axis is within .0005

Photo 1:

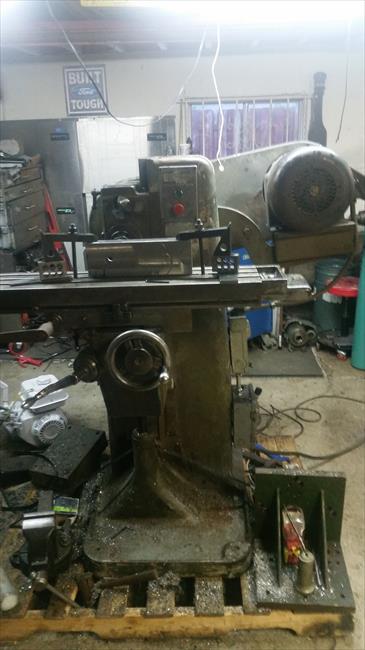

Comments: overview
Source: Cjones88

Direct Link
IMG Code

Photo 2:

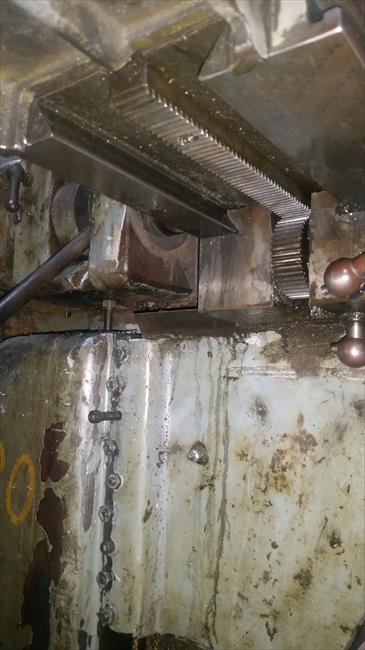

Comments: Spindle height adjustment rack and pinion
Source: Cjones88

Direct Link
IMG Code

Photo 3:

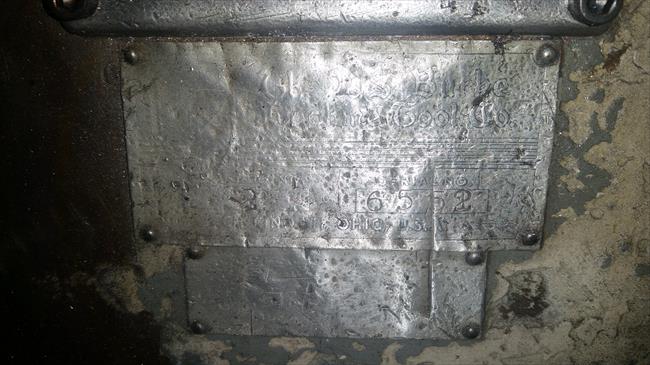

Comments: "U.S. Burke Machine Tool Co." #2 6552 Cincinnati, Ohio, U.S.A.
Source: Cjones88

Direct Link
IMG Code

Photo 4:

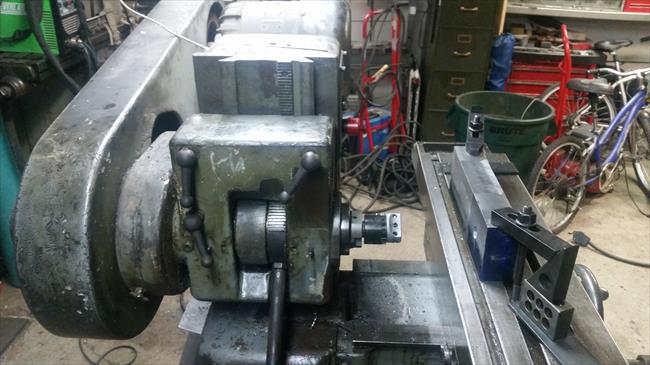

Comments: X Axis Rack and Pinion. and look at how many Gib loacking screws there are on the knee.
Source: Cjones88

Direct Link
IMG Code

Photo 5:

Comments: 2 four step pulleys and a clutch in the middle
Source: Cjones88

Direct Link
IMG Code

Photo 6:

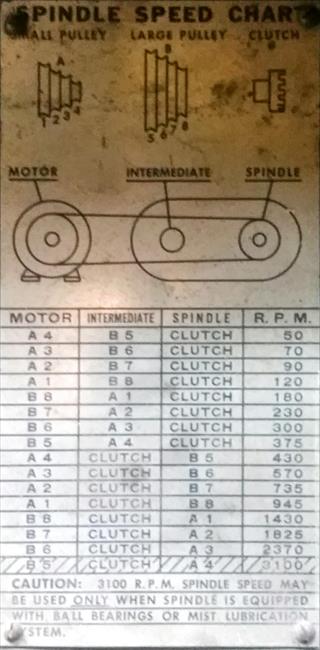

Comments: Spindle speed chart
Source: Cjones
