Photo Index - Lewis Machine Tool Co. - 14" table

Machinery Photo Index

Manufactured/Badged by:
Lewis Machine Tool Co.
Los Angeles, CA

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Shaper, Wood
Machine Size:	1/2" x 3" spindle
Submitted By:	Reuben Deumling

Machine Specifications
Description/Model:	14" table
Date of Manufacturer:	1947 est.
Serial Number:
Last Updated	1/17/2018 2:11:20 AM

Comments:

This shaper superficially resembles the small Herberts (also badged as Craftsman) round-tabled shapers from the thirties, but the differences are numerous. If/as I learn more about this manufacturer I'll move the listing accordingly.
The table elevation is adjusted by means of a well machined split nut that engages a set of threads machined into the main casting. Both that table and the split nut are clamped with an Allen cap screw to the main casting that contains the bearings and captures the 2" cast pulley. The machined column the table slides up and down is 3" in diameter. The ring in the table is 3-7/8" in diameter, and the table casting at the perimeter is 1/2" thick. All in all a very simple machine with some nice attention to both the castings and the machining. The round table is 14" in diameter and as received includes two sets of tapped holes for mounting a fence. One set is 8" center to center, the other 5-3/8". Based on their relation to the webbing on the underside of the table I suspect the more widely spaced set is original. Maximum vertical travel of the table is 3/4".

catalog cut here: http://www.owwm.org/viewtopic.php?f=1&t=162704&start=15

/RD original posting: 7/5/2015

Photo 1:

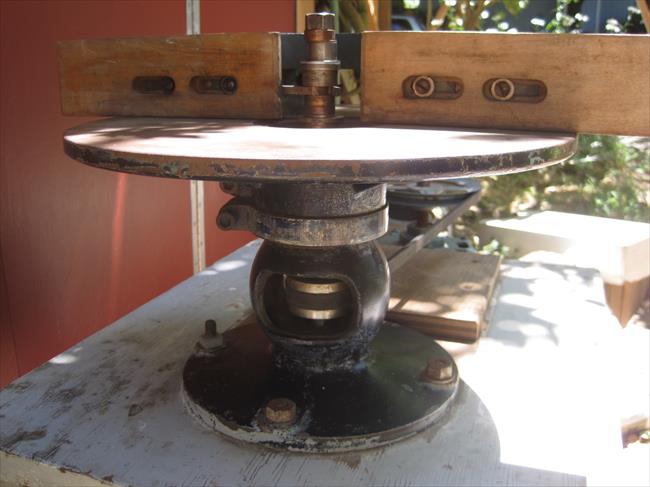

Comments: full frontal view with later Craftsman fence
Source: own photo

Direct Link
IMG Code

Photo 2:

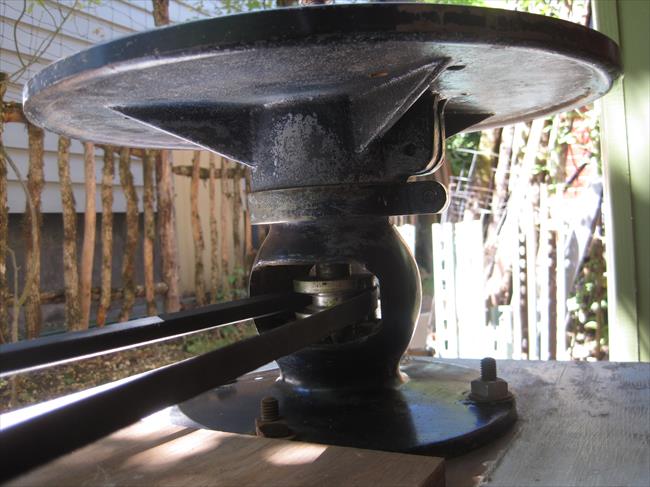

Comments: view from below the table
Source: own photo

Direct Link
IMG Code

Photo 3:

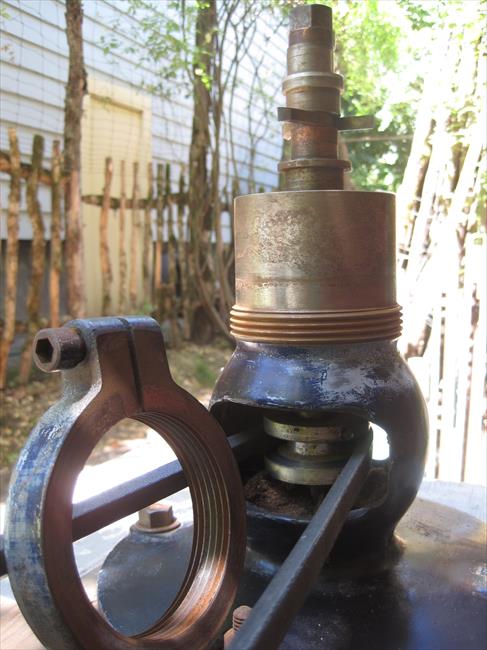

Comments: column, threads, and nut
Source: own photo

Direct Link
IMG Code

Photo 4:

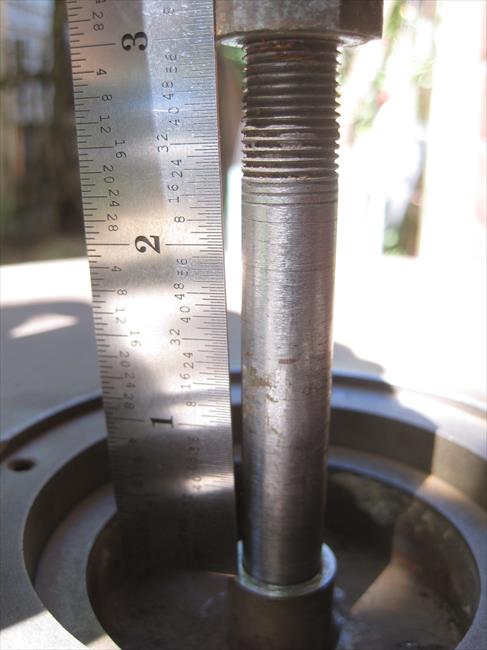

Comments: spindle 1/2" x 3"
Source: own photo

Direct Link
IMG Code

Photo 5:

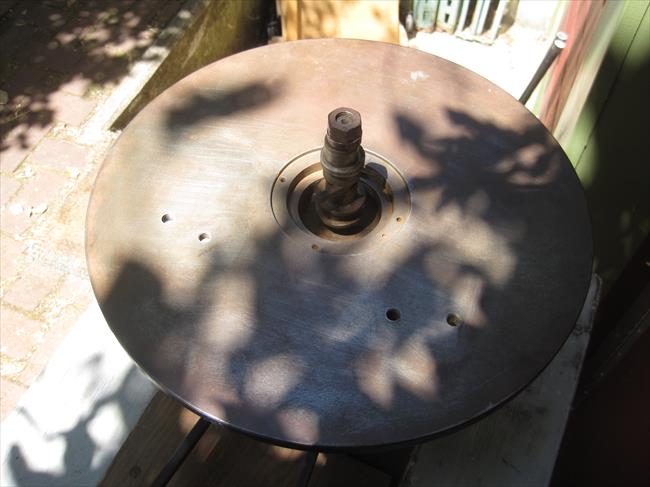

Comments: table from above
Source: own photo

Direct Link
IMG Code

Photo 6:

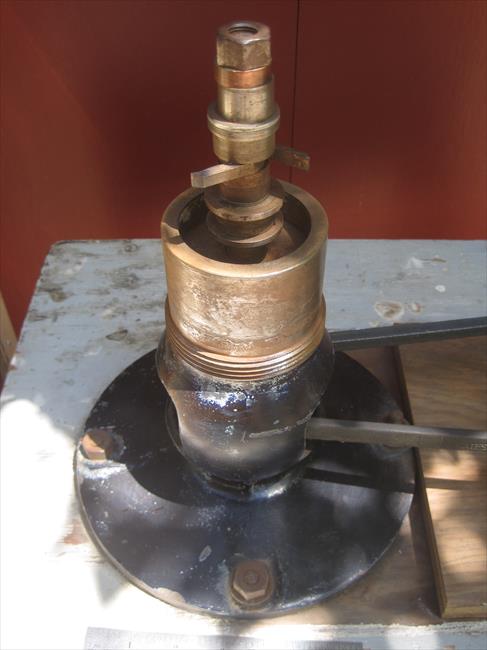

Comments: shaper without table
