Photo Index - Elliot Woodworker, Ltd. - No. 5 Combination Woodworker

Machinery Photo Index

Manufactured/Badged by:
Elliot Woodworker, Ltd.
Detroit, MI; Toronto, ON; Belleville, ON

True Manufacturer:
Elliot Woodworker, Ltd., Detroit, MI; Toronto, ON; Belleville, ON

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Combo Machine
Machine Size:	Various
Submitted By:	Jeff Joslin

Machine Specifications
Description/Model:	No. 5 Combination Woodworker
Date of Manufacturer:	1918
Serial Number:
Last Updated	5/16/2013 8:30:43 AM

Comments:

Additional photographs of the same No. 5 Combination Woodworker.

Photo 1:

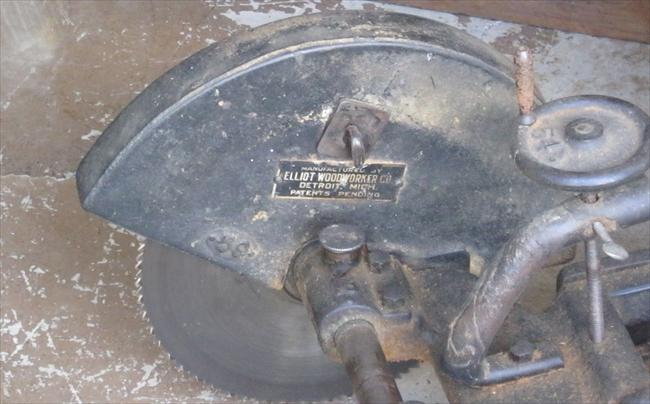

Comments: Saw arbor and blade with dept-of-cut adjustment
Source: eBay seller "stonehousevintage"

Direct Link
IMG Code

Photo 2:

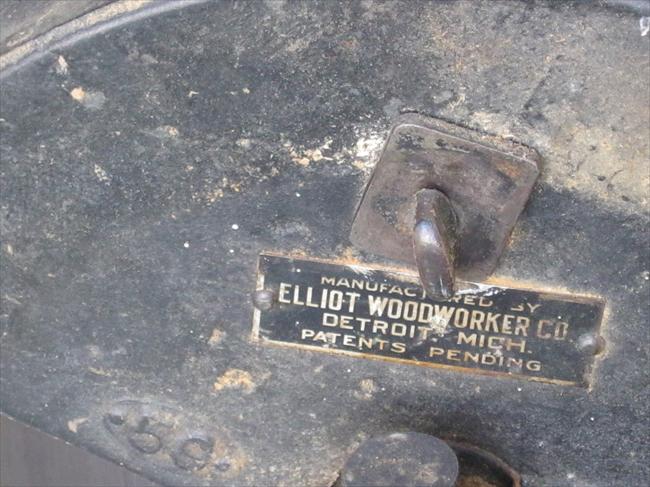

Comments: Label. The thumbscrew may be for locking the guard open. The "59" on the guard is likely a part number.
Source: eBay seller "stonehousevintage"

Direct Link
IMG Code

Photo 3:

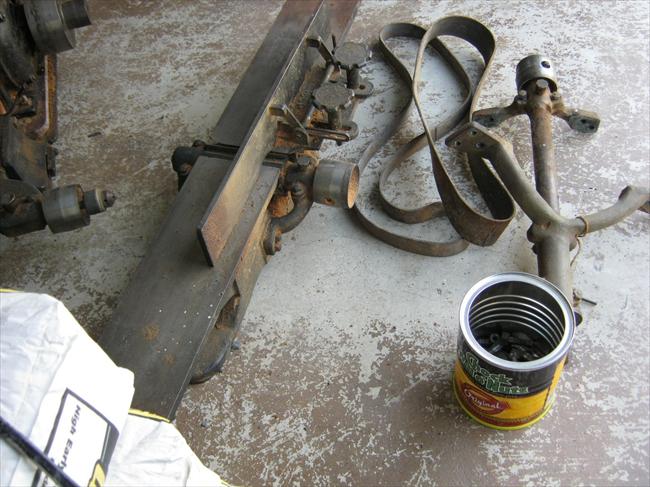

Comments: The jointer, with the other end of the saw arbor in the foreground. There's a drill chuck on the end of the arbor.
Source: eBay seller "stonehousevintage"

Direct Link
IMG Code

Photo 4:

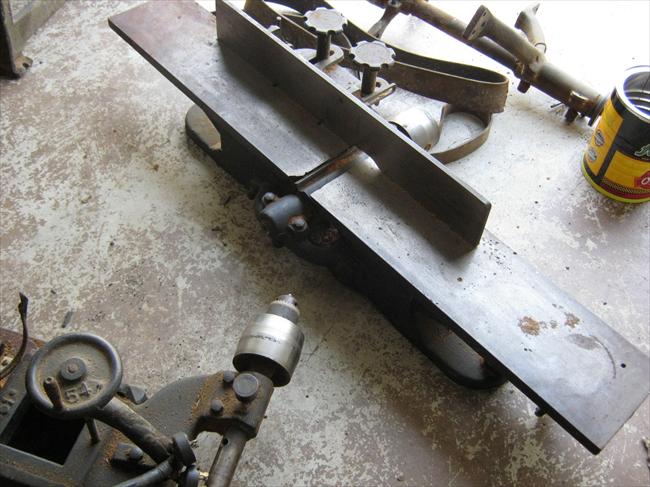

Comments: Another view of the jointer showing the fence mechanism. I don't understand the idler pulley setup on the right
Source: eBay seller "stonehousevintage"

Direct Link
IMG Code

Photo 5:

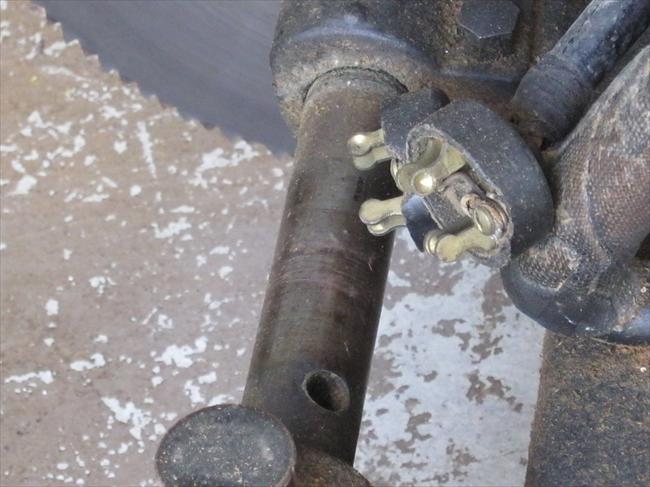

Comments: Unusual electricl connections. There's only one motor so why more than one connection?
Source: eBay seller "stonehousevintage"

Direct Link
IMG Code

Photo 6:

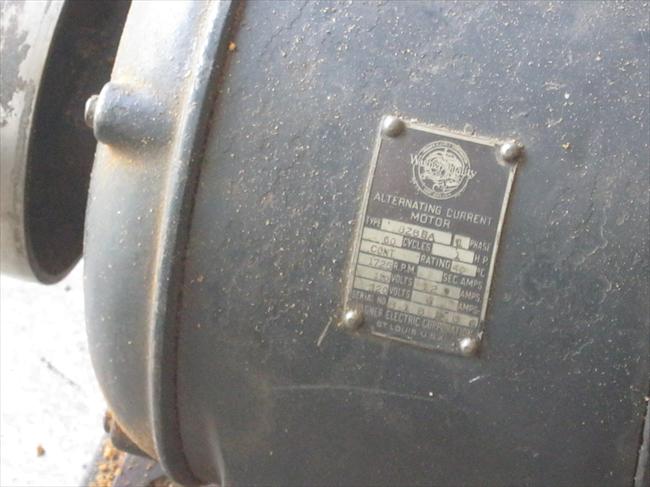

Comments: Wagner motor. 1 HP, 110/220 volts, 60 Hz.
Source: eBay seller "stonehousevintage"
