Photo Index - King Manufacturing Co. - M-4 power feeder offset mounting

Machinery Photo Index

Manufactured/Badged by:
King Manufacturing Co.
Corinth, MS

True Manufacturer:
King Manufacturing Co., Corinth, MS

Machine Specifications
Description/Model:	M-4 power feeder offset mounting
Date of Manufacturer:	1970±
Serial Number:	51127
Last Updated	8/4/2011 11:02:38 PM

Comments:

The last of this series showing the Model 60 offset attachment and how the feeder attaches.

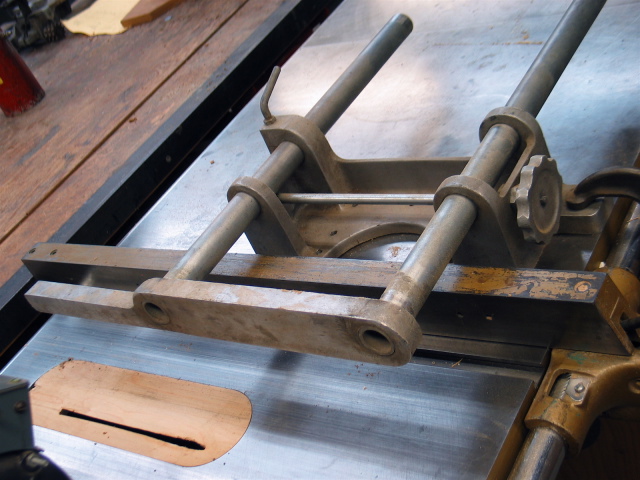

Photo 1:

Comments: Offset attachment. The feeder clamps to the tail in the back. The attachment is c-clamped to the table.
Source: my camera

Direct Link
IMG Code

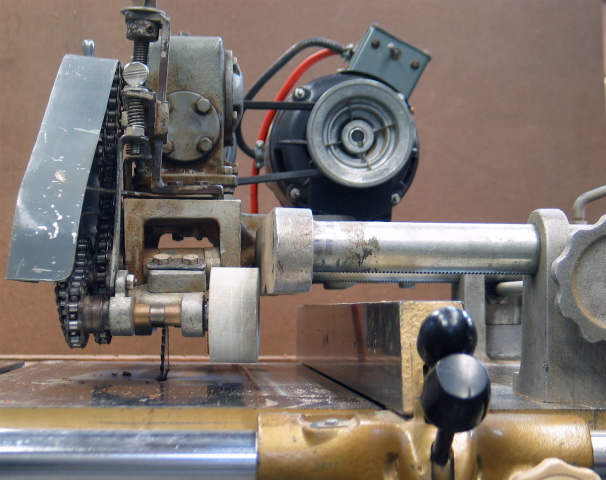

Photo 2:

Comments: Using the offset bracket, the feeder is higher off the table than it is when mounted on the fence.
Source: my camera

Direct Link
IMG Code

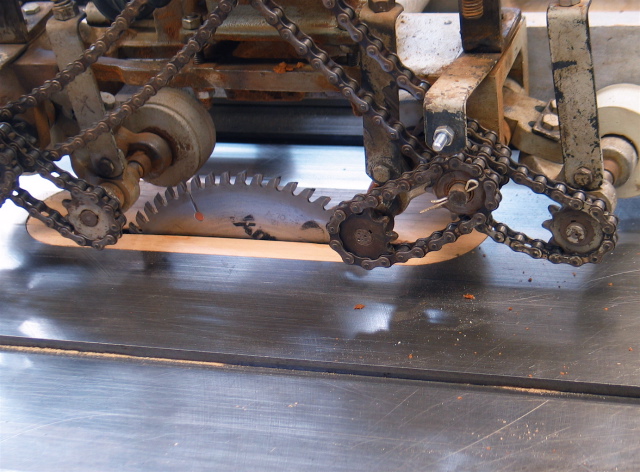

Photo 3:

Comments: overall view sans guard
Source: my camera

Direct Link
IMG Code

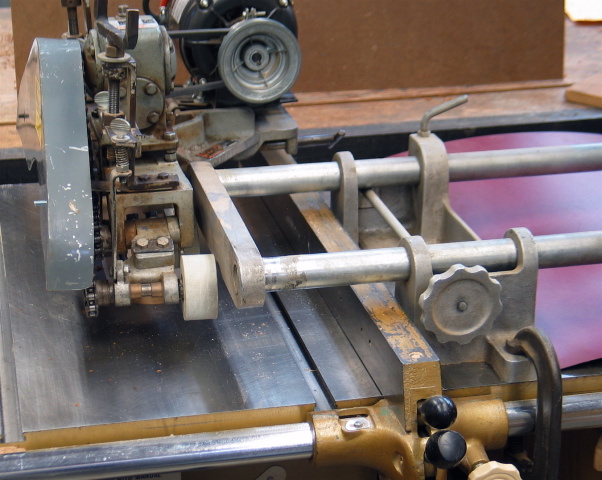

Photo 4:

Comments: with chain guard on offset bracket
Source: my camera

Direct Link
IMG Code

Photo 5:

Comments: operator's view
Source: my camera

Direct Link
IMG Code

Photo 6:

Comments: board's eye view
Source: my camera

Direct Link
IMG Code
