Manufactured/Badged by:
Canedy-Otto Manufacturing Co.
Downer's Grove, IL; Chicago Heights, IL; Great Lakes, IL

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Drill Press
Machine Size:	15"
Submitted By:	Steve Baum

Machine Specifications
Description/Model:	No. 1 Post Drill
Date of Manufacturer:	~1900
Serial Number:	None
Last Updated	4/18/2010 2:58:08 PM

Comments:

As can be seen from the pictures this is a basket case, basically a parts machine. Since there are currently no other examples I thought I would post what's left of this one. This drill has a 1/2" straight shank chuck and does not have the Safety Chuck or Ball Thrust Bearing. Quill travel should be 2 3/4" but I measured 4". There were 32 turns of the top feed wheel. That wheel has 62, 48, and 33 teeth. It weighs 85 1/2 lbs. as pictured (complete should be 130 lbs.). The board appears to be original and the color shown is probably not original. The right side casting reads "CANEDY OTTO MFG CO CHICAGO HEIGHTS ILL". Both the 'Arm Stop' and 'Table Rest' have repairs done to them.

Photo 1:

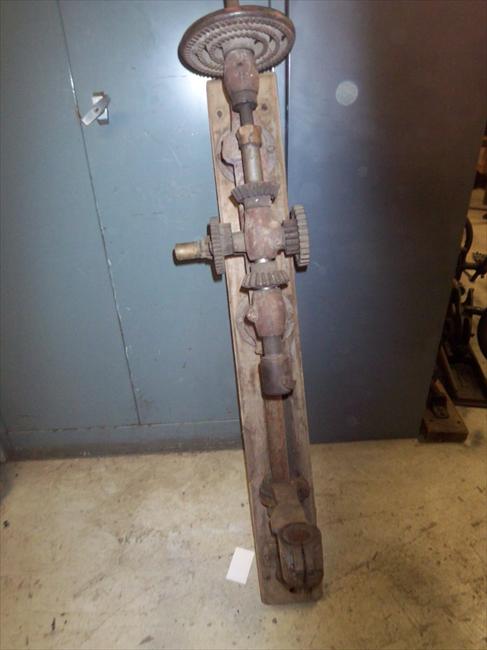

Comments: Front full view.
Source:

Direct Link
IMG Code

Photo 2:

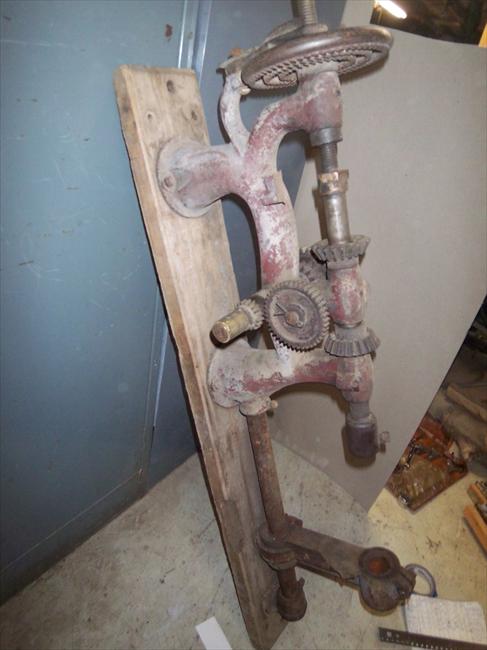

Comments: Left side full view.
Source:

Direct Link
IMG Code

Photo 3:

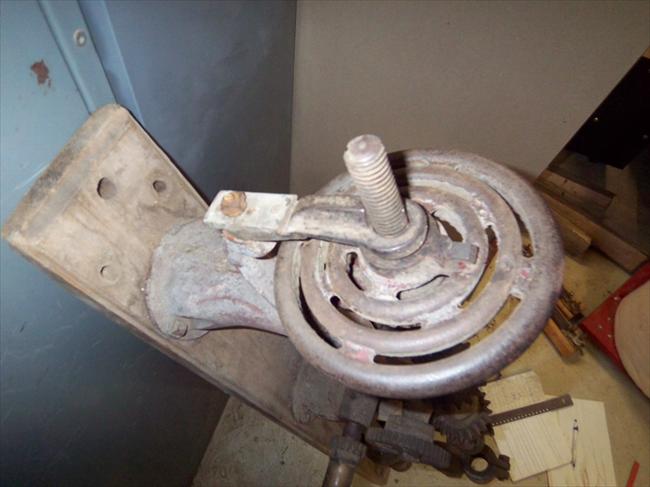

Comments: Top detail showing repair to 'Arm Stop'.
Source:

Direct Link
IMG Code

Photo 4:

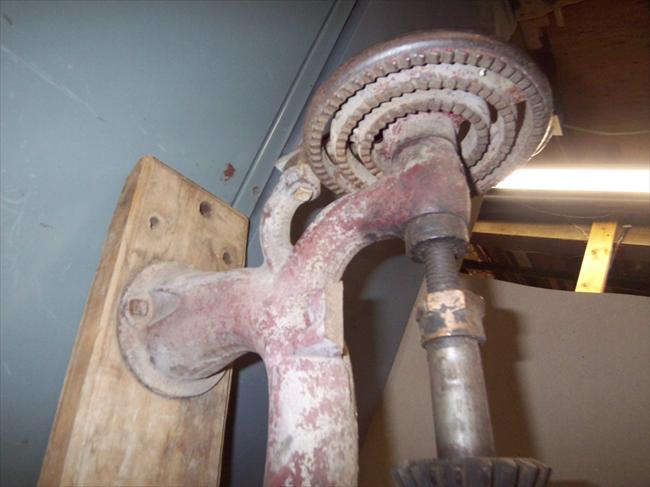

Comments: Under side view of 'Feed Wheel' with three speed selection gears and break in frame where feed arm attaches..
Source:

Direct Link
IMG Code

Photo 5:

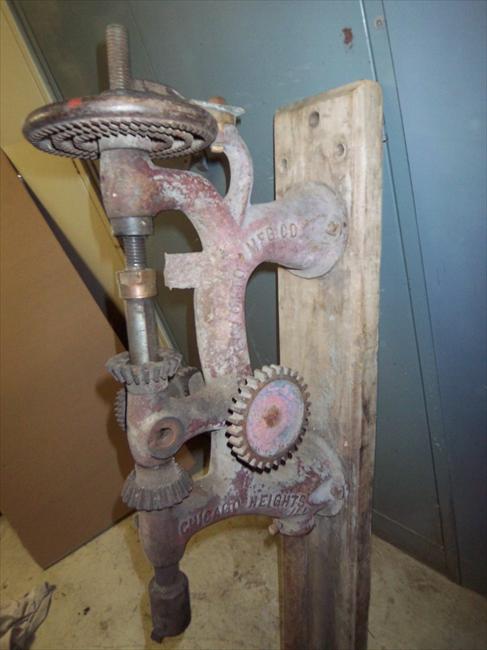

Comments: Right side view.
Source:

Direct Link
IMG Code

Photo 6:

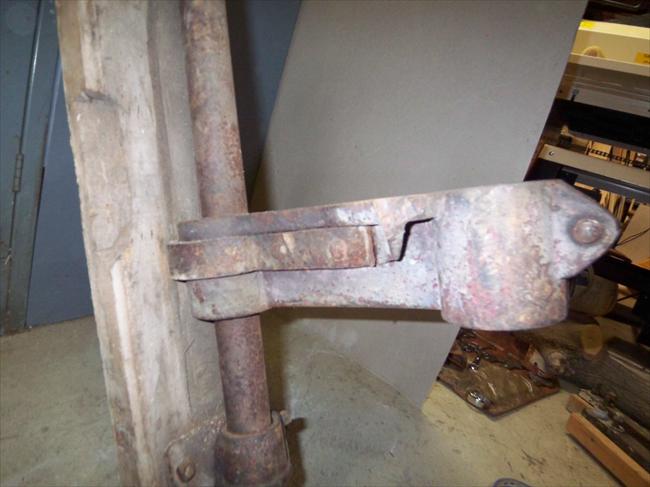

Comments: Detail of 'Table Rest' repair.
Source:

Direct Link
IMG Code
