Photo Index - State Manufacturing & Engineering Co. - S3 oscilation spindle sander

Machinery Photo Index

Manufactured/Badged by:
State Manufacturing & Engineering Co.
Chicago, IL.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Sander
Machine Size:	3" drum maximum
Submitted By:	Craig Stebbins

Machine Specifications
Description/Model:	S3 oscilation spindle sander
Date of Manufacturer:	1940's
Serial Number:	713
Last Updated	5/16/2009 2:16:51 AM

Comments:

This came out of local IRS auction, in Kent, WA from a low-end furniture factory that needed to make room for new equipment. It came with one spindle and drum, and appears to have finished out it professional career a stand in the spray booth. I've since gathered up the remaining spindles, throat plates and drums I needed. I was able get replacement trunnions, sight glass, and badge from State. It uses a 1/2 HP, 3ph, 220/440v, direct drive motor made by Masters. This machine uses a sleeve bearing...that is what the "S" in model S3 stands for.

Photo 1:

Comments: as found with protective overspray
Source:

Direct Link
IMG Code

Photo 2:

Comments: oscillating assembly
Source:

Direct Link
IMG Code

Photo 3:

Comments: Square D starter
Source:

Direct Link
IMG Code

Photo 4:

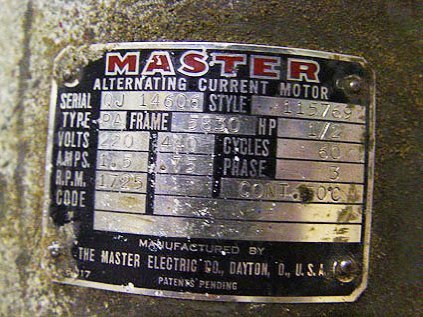

Comments: motor tag
