Photo Index - Yates-American Machine Co., Inc. - single surfacer/model B-4

Machinery Photo Index

Manufactured/Badged by:
Yates-American Machine Co., Inc.
Beloit, WI; Roscoe, IL; Liberty, NC

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Planer, Wood
Machine Size:	24" by 8"
Submitted By:	Jeff Behan

Machine Specifications
Description/Model:	single surfacer/model B-4
Date of Manufacturer:	1928 to 1938?????
Serial Number:	No.B-4905 (View SN Registry Entry)
Last Updated	11/4/2008 9:15:37 AM

Comments:

Yates American 24" Single Surfacer with 7 1/2 H.P.,220 volt,3475 RPM,3 Phase direct drive motor.It has sectional feed roll and chip breaker.Variable feed rate from 22 ft. to 85 ft.

Photo 1:

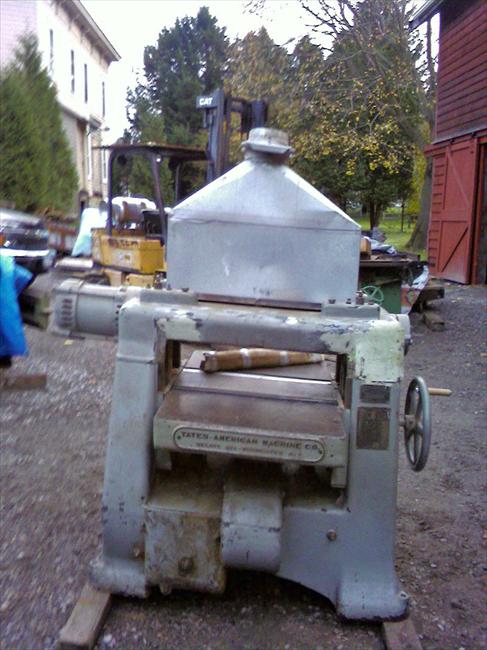

Comments: front shot
Source: myself

Direct Link
IMG Code

Photo 2:

Comments: nameplate/feed selector
Source: myself

Direct Link
IMG Code

Photo 3:

Comments: view of tables
Source: myself

Direct Link
IMG Code

Photo 4:

Comments: sideview of planer
Source: myself

Direct Link
IMG Code

Photo 5:

Comments: outfeed side of planer
Source: myself

Direct Link
IMG Code

Photo 6:

Comments: serail no. plate
Source: myself

Direct Link
IMG Code
