Photo Index - Yates-American Machine Co., Inc. - Single spindle/N-4

Machinery Photo Index

Manufactured/Badged by:
Yates-American Machine Co., Inc.
Beloit, WI; Roscoe, IL; Liberty, NC

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Shaper, Wood
Machine Size:	Big and Heavy Duty
Submitted By:	Jeff Behan

Machine Specifications
Description/Model:	Single spindle/N-4
Date of Manufacturer:	1930's to1940's ?????????????
Serial Number:	B-26104 (View SN Registry Entry)
Last Updated	6/7/2007 12:00:00 AM

Comments:

I acquired this Yates American Shaper from a private party in a trade for my Newton E-30
edge sander.The shaper is V-belt drive (3 of them),5 h.p.,208/220/440 volts,3 phase.The table top is 44"side to side and 42"front to back.It came with a 2 1/2" and 5" throat plates,3 spindles-1 1/4"x 8",1 1/8"x 9",1 1/8"x 7".The shaper has forward and reverse,disc brake and a after market fence with mirco adjustment.The machine is in excellent working condition with no broken or welded castings.

Photo 1:

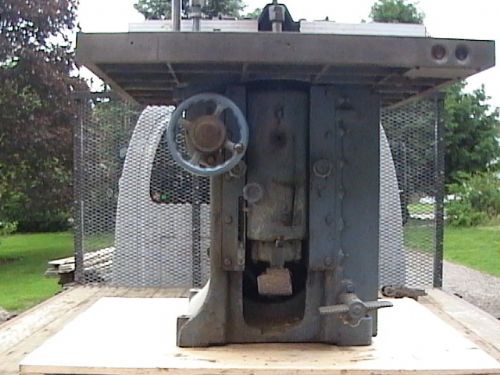

Comments: front view
Source: myself

Direct Link
IMG Code

Photo 2:

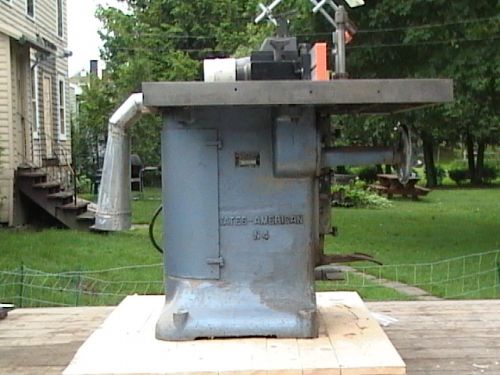

Comments: leftside view
Source: myself

Direct Link
IMG Code

Photo 3:

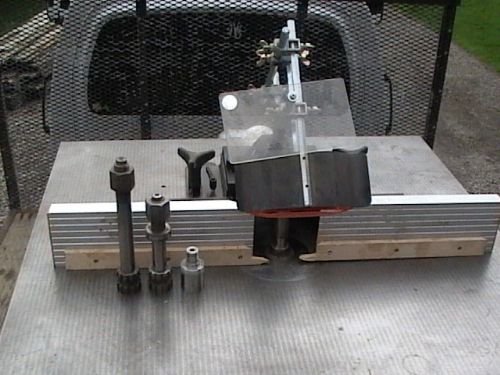

Comments: top and spindles and fence
Source: myself
