Photo Index - Sears | Dunlap - 103.08011 Belt/Disk Sander

Machinery Photo Index

Manufactured/Badged by:
Sears | Dunlap
Chicago, IL

True Manufacturer:
King-Seeley Corp.-Central Specialty Division, Ann Arbor, MI; Ypsilanti, MI

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Sander
Machine Size:	Belt-4"x36" Disk-8"
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	103.08011 Belt/Disk Sander
Date of Manufacturer:	1942-46
Serial Number:	none
Last Updated	7/7/2018 5:42:46 PM

Comments:

>>MACHINE<<
Sears Dunlap/Central Specialty 4"x36" belt/8" disk sander, model 103.08011, catalog no. 2213.
All bronze bearings feel good.
By design, only the idler roller has the rubber sleeve.
It appears to be missing the following: one bearing oil plug and the belt stop/fence.

>>HISTORY<<
I bought this sander from a Craigslist seller in Warren Michigan, on 23Oct2006.
Component casting numbers.
103.592-37 Disk/belt sanding table
592_38_103 Table pivot
2159 8" aluminum sanding disk
592-2_103 Belt platen
5921.103 Base

UPDATE-July 2007:
Found a belt fence (592-6) at a resale shop.
Used clear RTV to glue rubber sleeve to idler drum--runs and tracks properly now.

UPDATE-January 2013:
Attached sander to a 11x26 board.
The sander is powered by a Delco 1/3 hp motor with 2" pulley and ½x44 V-belt.
A Chicago Die Casting motor arbor was added to the open sander drum shaft end, to turn small accessories.
Attempted to run a second sanding disk on the open shaft end but machine vibration became excessive.

UPDATE-July 2018:
Attached sander to a Craftsman 16x30 Universal Stand.
The sander is currently powered by a Craftsman/Leland 1/2 hp 1725 rpm RI Oilite bearing motor.
A Chicago Die-Casting 5/8 bore motor arbor was added to the drive roller shaft end with a sanding flap wheel.

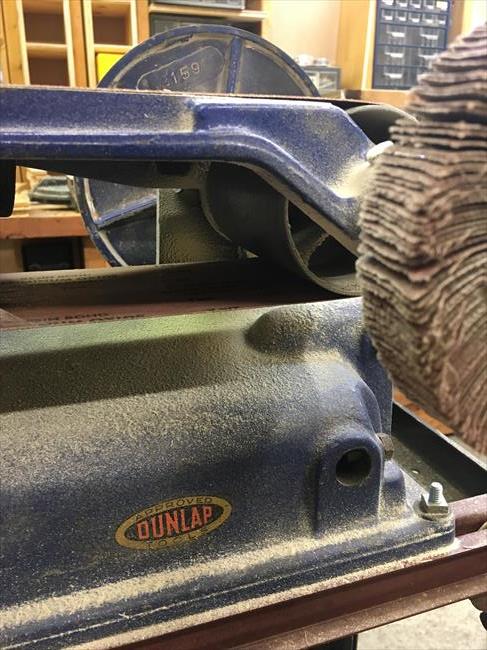

Photo 1:

Comments: Complete machine.
Source: Canon S230 with flash in basement workshop

Direct Link
IMG Code

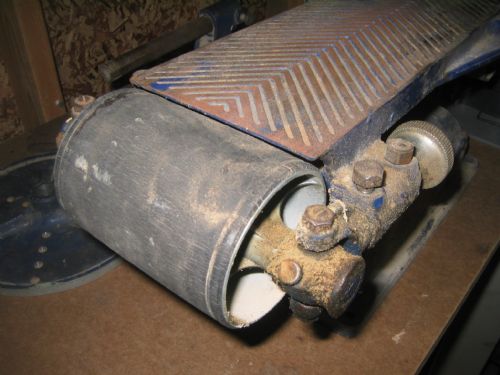

Photo 2:

Comments: Idler pulley adjustment.
Source: Canon S230 with flash in basement workshop

Direct Link
IMG Code

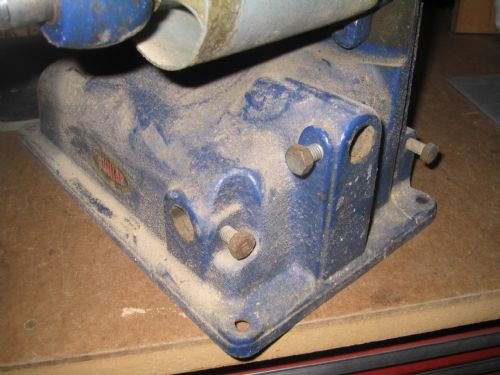

Photo 3:

Comments: The table can be moved to the belt or disk. The disk can be used on either side.
Source: Canon S230 with flash in basement workshop

Direct Link
IMG Code

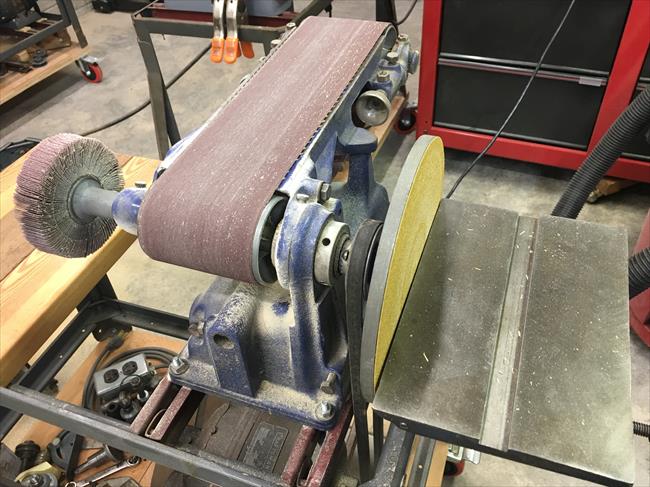

Photo 4:

Comments: July 2018
Source: iPhone 6S camera-existing light.

Direct Link
IMG Code

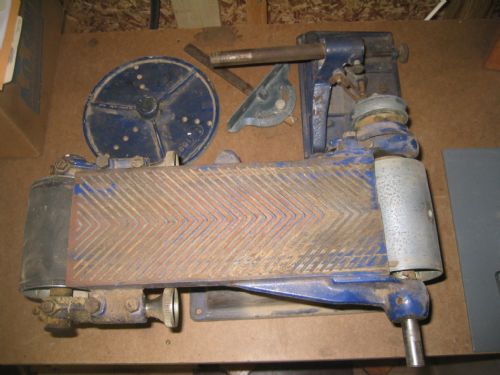

Photo 5:
