Photo Index - Chicago Machinery Exchange - tilt top -No. 5

Machinery Photo Index

Manufactured/Badged by:
Chicago Machinery Exchange
Chicago, IL

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Table Saw
Machine Size:	12"
Submitted By:	Patrick Haire

Machine Specifications
Description/Model:	tilt top -No. 5
Date of Manufacturer:	1990+
Serial Number:	none
Last Updated	10/16/2006 7:20:13 PM

Comments:

Found rural Salina, Ks. The top tilts-pivots at out feed end to adjust blade height. Self contained countershaft makes for compact mach. Basic and not convenient for quick & multiple set ups. Castings are very rough. I use it dedicated for dado work and as an example of variations in table saw construction. I can imagine saws of this caliber being marketed to lumber yards and construction co. shops.

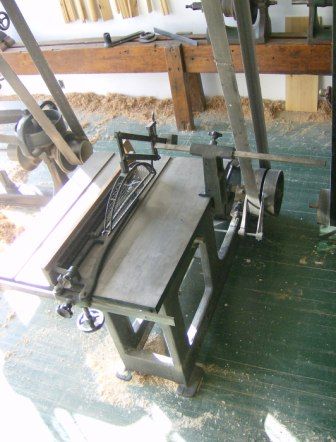

Photo 1:

Comments: top view-note mach. mount after market blade guard
Source: self

Direct Link
IMG Code

Photo 2:

Comments: out feed-countershaft \ shifter
Source: self

Direct Link
IMG Code

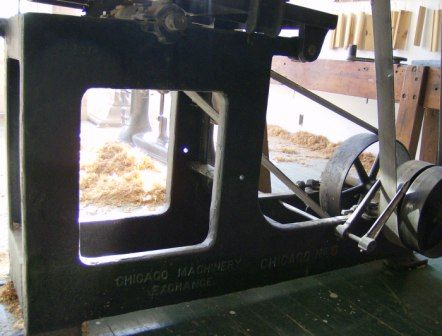

Photo 3:

Comments: frame const.- makers name
Source: self

Direct Link
IMG Code
