Photo Index - Sears | Dunlap - 103.23622 Bench Drill Press '80'

Machinery Photo Index

Manufactured/Badged by:
Sears | Dunlap
Chicago, IL

True Manufacturer:
King-Seeley Corp.-Central Specialty Division, Ann Arbor, MI; Ypsilanti, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Drill Press
Machine Size:	12¼"
Submitted By:	Chris Schmidt

Machine Specifications
Description/Model:	103.23622 Bench Drill Press '80'
Date of Manufacturer:	1950's
Serial Number:	none
Last Updated	9/29/2010 12:22:23 PM

Comments:

I just won this on eBay...will be in my posession soon. I will be getting a copy of the manual as well, and will make copies of it if requested.
Info I have on the machine is as follows:

Sears Dunlap "80" Drill Press
Model 103.23622 from the late 40's or early 50's.
Specifications:
Throat: 6-1/8"
Spindle travel: 3"
Column diameter: 1-7/8"
Table travel: 8-7/8"
7-3/4" square table (non-tilting)
Base size: 9"x14"
Pulleys: 4-step
Overall dimensions: 25-7/8" high, 10-1/8" wide,15-1/2" deep
Chuck: No. 33 Jacobs key chuck
Motor: 1/3 hp, 1750 rpm, split phase, 110 v

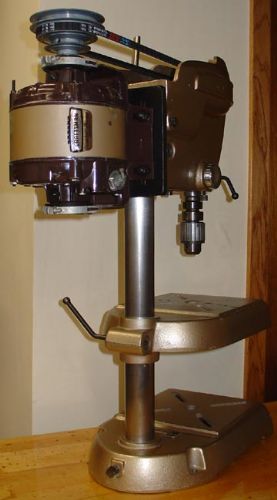

Photo 1:

Comments:
Source:

Direct Link
IMG Code

Photo 2:

Comments:
Source:

Direct Link
IMG Code

Photo 3:

Comments:
Source:

Direct Link
IMG Code

Photo 4:

Comments:
Source:

Direct Link
IMG Code
