Photo Index - Carroll & Jamieson Machine Tool Co. - 15” Conehead

Machinery Photo Index

Manufactured/Badged by:
Carroll & Jamieson Machine Tool Co.
Batavia, OH

True Manufacturer:
Carroll & Jamieson Machine Tool Co., Batavia, OH

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	15x96
Submitted By:	Dwayne McBryde

Machine Specifications
Description/Model:	15” Conehead
Date of Manufacturer:	1909
Serial Number:	683
Last Updated	10/5/2025 1:55:05 PM

Comments:

Found in Lafayette, LA on a working cattle farm. Purchased about six years earlier from an old local machine shop but never used on the farm. Sat in the back of a barn for over six years before being rescued. Complete and restorable example of an early 1900s Carroll-Jamieson 15” conehead lathe built in Batavia, Ohio.

Photo 1:

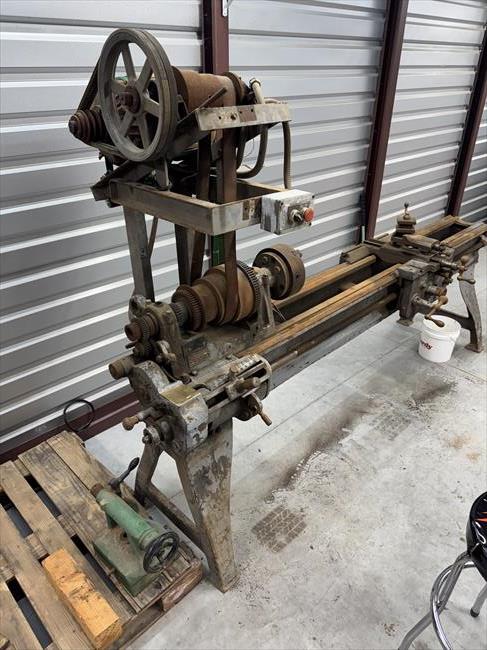

Comments: New home in my shop.
Source: Dwayne McBryde

Direct Link
IMG Code

Photo 2:

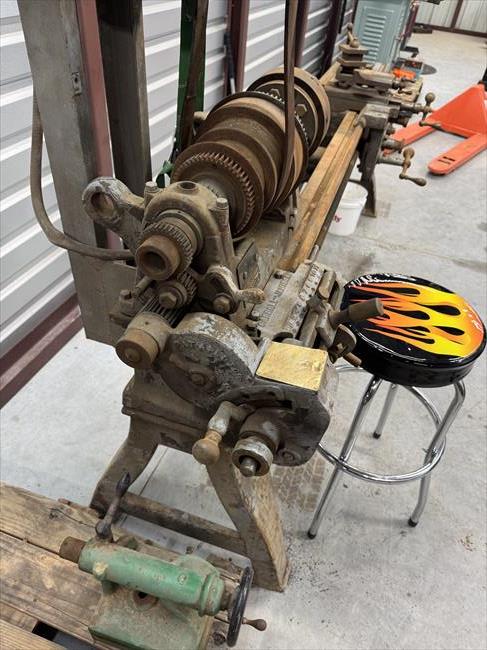

Comments: QCGB
Source: Dwayne McBryde

Direct Link
IMG Code

Photo 3:

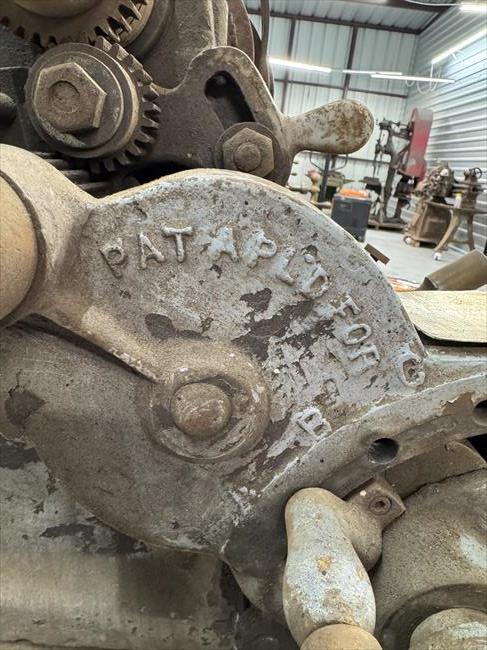

Comments: Patent Applied For Casting
Source: Dwayne McBryde

Direct Link
IMG Code

Photo 4:

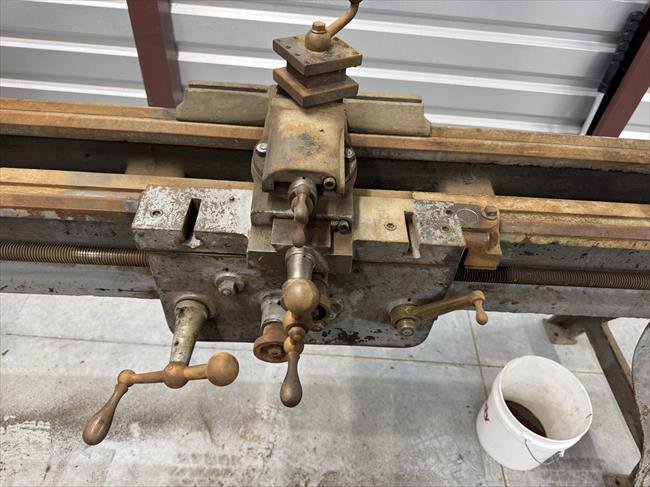

Comments: Carriage picture. Notice no dials on longitudinal feed.
Source: Dwayne McBryde

Direct Link
IMG Code

Photo 5:

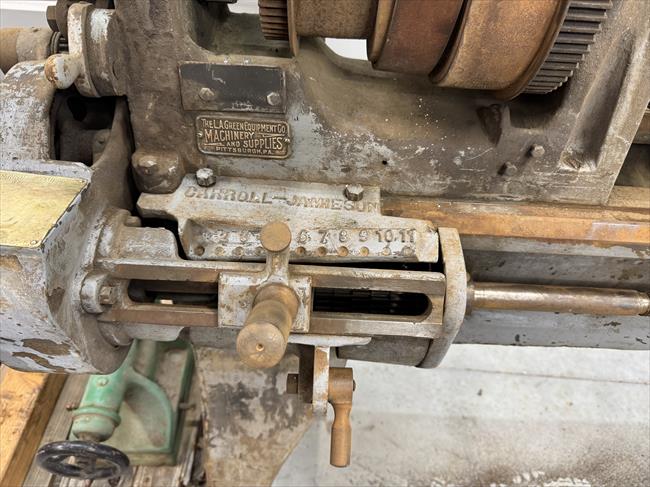

Comments: Cleaned up brass threading/feed tag on QCGB to get information. It's a true Batavia, Ohio C&J.
Source: Dwayne McBryde

Direct Link
IMG Code

Photo 6:

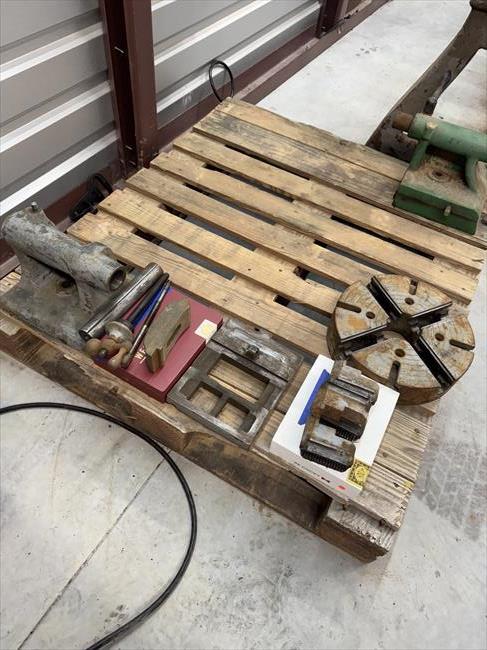

Comments: Tailstock and original chuck disassembled to prep for cleaning and restoration.
Source: Dwayne McBryde
