Photo Index - Diamond Machine Tool Co. - M-22 Horizontal Mill

Machinery Photo Index

Manufactured/Badged by:
Diamond Machine Tool Co.
Los Angeles, CA, Pico, CA

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Mill, Horizontal
Machine Size:
Submitted By:	Bill Minsinger

Machine Specifications
Description/Model:	M-22 Horizontal Mill
Date of Manufacturer:	1960
Serial Number:	9251
Last Updated	9/13/2025 7:17:51 PM

Comments:

Just picked up another Diamond M22 horizontal mill. Found it in a local salvage yard when I went there to buy a piece of steel for a project. Guy said he just got it. No motor and a broken handwheel but otherwise complete and seems in good shape. Needs some degreaser, emery cloth and some paint. Will be an easy restoration. Will get around to it in a couple months. This is the 4th one I own.

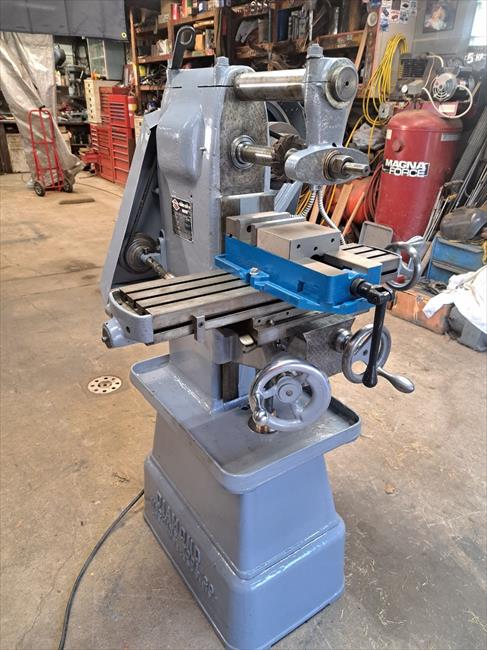

Finished the restoration. Turned out really well. Meticulously restored. Fresh restoration, completely torn down, cleaned, lubricated, painted, new belts, new switch, all new electrical wiring, new vise and new 1 HP 110/220 volt single phase motor, power feed, 5-3/4"x 24" table with 3 T-slots, 1" arbor, brand new never used 5" milling vise. Perfect size machine for a home shop.
