Photo Index - Sears | Craftsman - 115.7376

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
Packard Electric Co. | Packard Electric Division - General Motors Corp., Warren, OH

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Motor
Machine Size:	1/3 hp - 1750 rpm
Submitted By:	Brian Kachadurian

Machine Specifications
Description/Model:	115.7376
Date of Manufacturer:	1950
Serial Number:	none
Last Updated	4/6/2025 3:31:46 PM

Comments:

I don't own one of these motors--documenting the details of a 1950 sample for archive purposes.

Craftsman/Packard Appliance Motor
Capacitor start - induction run
1/3 hp
1750 rpm
115/230 volts AC
6.0 / 3.0 amps
60 Hz
Catalog number 1976
Type: CW160
Reversible - interchange yellow leads
115 volt connections: L1-LINE, L2-LINE, L3-SHUNT to L1, L4-SHUNT to L2
230 volt connections: L1-LINE, L2-LINE, L3-both SHUNTS to L4
Oilite bearings
1/2" shaft with flat for pulley set screw.
End bells-cast iron painted gray.
End bell attachment-four bolts with jam nuts at shaft end
Center band-stamped steel painted gray.
Base-stamped steel painted gray, bolted to armature.
Capacitor cover-stamped steel painted gray, attached to center band.
Terminal cover-located on the right side of the end bell opposite the shaft end.
Tag part number-5216726

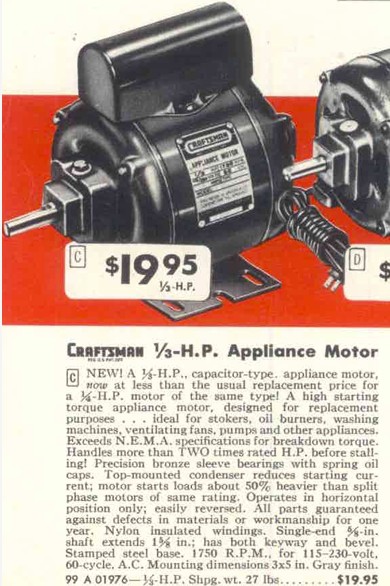

Photo 1:
