Photo Index - Sears | Craftsman - 103.22171 Bench Saw

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
King-Seeley Corp.-Central Specialty Division, Ann Arbor, MI; Ypsilanti, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Table Saw
Machine Size:	8-inch
Submitted By:	Curtis Garrett

Machine Specifications
Description/Model:	103.22171 Bench Saw
Date of Manufacturer:	1959-60
Serial Number:	None
Last Updated	7/24/2024 10:25:51 PM

Comments:

This table saw came from yard sale in Round Rock Texas (Austin area) in August 2016 and was purchased for me by a customer who I was doing some other machines restorations for at that time.The pedestal stand was bought by another customer of mine who found it up in North Texas very rusted up to all hell from sitting outside a few years later after he bought this table saw from me all restored. I got this saw given back to me in July of 2023.

1960 Craftsman Power Tools Catalog:
"Craftsman 8-inch Tilting Arbor Saw" - "Our newest 8-inch saw..improved design new features"

Specifications
Dept of cut (maximum)..2.5"
Blade size.............8 in.diameter (.50" arbor hole)
Dado capacity..........6 in.dado saw
Blade tilt.............45 degrees - (left hand tilt arbor)
Arbor bearings.........2 sealed for life lubricated ball bearings (water pump style assembly)
Table size.............17 in. wide, 20 in. long depth
Distance in front of blase a 1 in. depth.............10 inches
Rip Fence length.......24 inches (Pick-off type)
Arbor speed recommended................4500 RPM
Minimum motor size.....1/2-HP - 3450 RPM
Machine arbor pulley...2-inch (5/8-in. diameter arbor)
Motor pulley...........2.5-inch (5/8-in. diameter motor shaft)
V-Belt.................40-in. long - 1/2-in. wide A-Type belt
Table Saw weight.......66 pounds ($80.95 cost new)
Saw with 1/2-HP motor..94 pounds ($105.00 cost new)
Saw with 3/4-HP motor..98 pounds ($110.00 cost new)
Pedestal Stand weight..61 pounds ($29.95 cost new)

Repainted in the original Craftsman Powder-Bronze color using a True Value XO-Rust "Bronze" paint product that is a dead on match. Saw has the original factory "grid-type" extension wings on it repainted in the same smoke grey color they came with. The pedestal stand cast out of North Texas and was the older Model 80 8-inch bench saw version with the motor mount behind the saw and not mounted to the back of the saw like this version bench saw is. I slightly modified this stand to fit this newer much nice motor mount version on this bench saw.
This saw has a green link belt, machined and balanced arbor and motor pulleys I added. Saw is running a new CMT 40-tooth 8.25-in. blade that is a very nice quiet all chrome plated blade.

This table saw is going to a new owner here in Harrison Arkansas who works with me at the United States Postal Service.

Photo 1:

Comments: Front View on Optional Pedestal Stand
Source: C.Garrett

Direct Link
IMG Code

Photo 2:

Comments: Rear View with newer Century 3/4-HP 3450 RPM Motor
Source: C.Garrett

Direct Link
IMG Code

Photo 3:

Comments: Right Side View
Source: C.Garrett

Direct Link
IMG Code

Photo 4:

Comments: Left Side View
Source: C.Garrett

Direct Link
IMG Code

Photo 5:

Comments: Restored Underside Carriage Assembly
Source: C.Garrett

Direct Link
IMG Code

Photo 6:

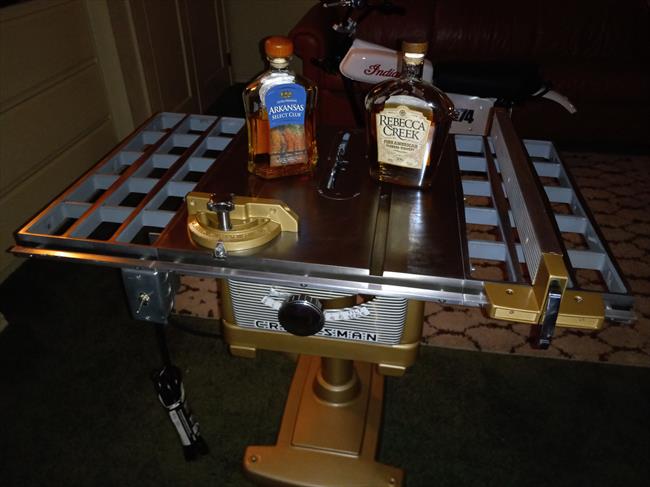

Comments: Both the Nickel & Whisky Vibration Test passed with ease...LOL
