Photo Index - A. D. Waymoth & Co. - 1889 patent automatic lathe - tools and tool carriage

Machinery Photo Index

Manufactured/Badged by:
A. D. Waymoth & Co.
Fitchburg, MA

True Manufacturer:
A. D. Waymoth & Co., Fitchburg, MA

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Lathe, Wood
Machine Size:
Submitted By:	Jeff Joslin

Machine Specifications
Description/Model:	1889 patent automatic lathe - tools and tool carriage
Date of Manufacturer:
Serial Number:
Last Updated	5/6/2021 10:14:57 AM

Comments:

These photos show the tools and tool carriage that came with the lathe shown in another Photo Index entry. The machine was seen on Facebook Marketplace. Seller gave permission to preserve the photos here.

Lathe has been disassembled and the components for automatic operation are a jumble. To understand how the pieces go together, refer to the drawings for patents 213,718; 319,531; and 397,528.

Photo 1:

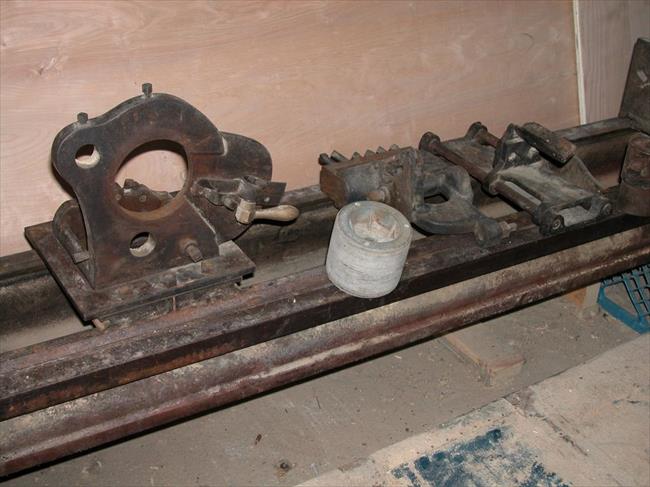

Comments: Tool holders. Carriage, left, should be rotated 90 degrees clockwise (looking from above)
Source:

Direct Link
IMG Code

Photo 2:

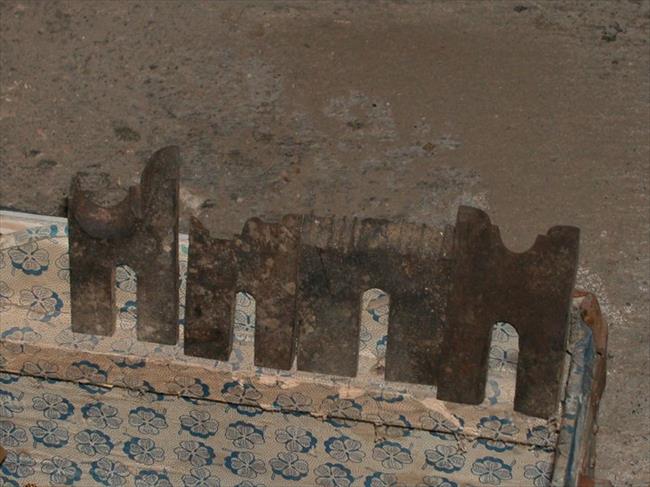

Comments: Cutter holder, with cutter
Source:

Direct Link
IMG Code

Photo 3:

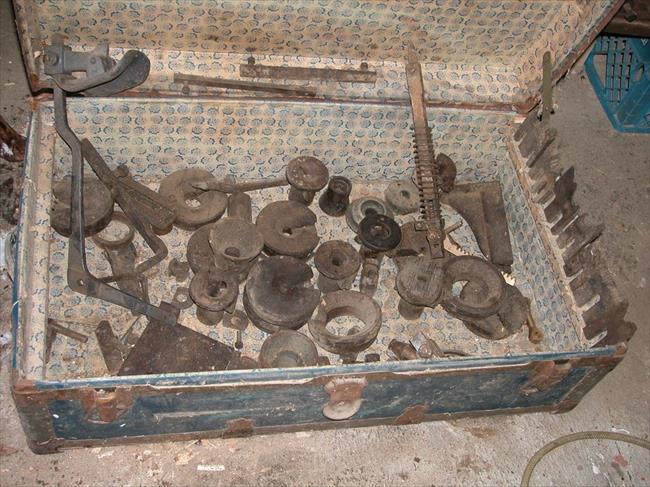

Comments: Some cutters
Source:

Direct Link
IMG Code

Photo 4:

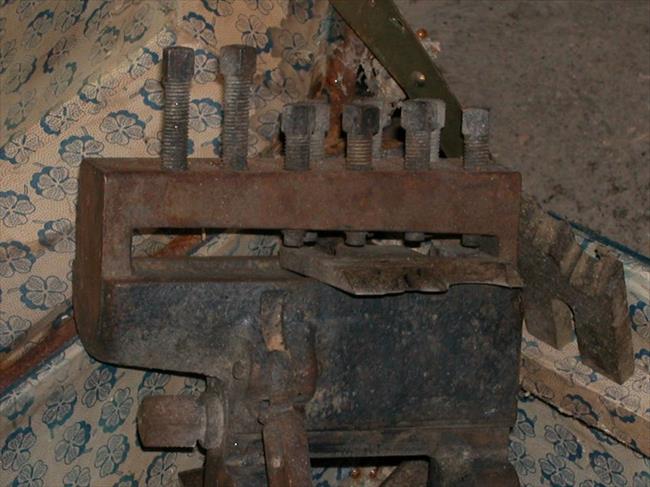

Comments: More components. See patent drawing for more information
