Photo Index - Wagner Electric Corp. - Repulsion Induction

Machinery Photo Index

Manufactured/Badged by:
Wagner Electric Corp.
St. Louis, MO

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Motor
Machine Size:	2HP
Submitted By:	Adrian McCullough

Machine Specifications
Description/Model:	Repulsion Induction
Date of Manufacturer:	1933
Serial Number:	8B2767
Last Updated	1/16/2021 8:35:53 PM

Comments:

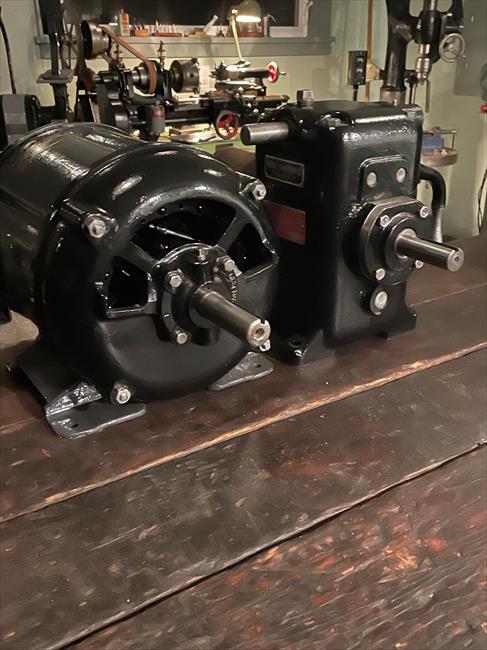

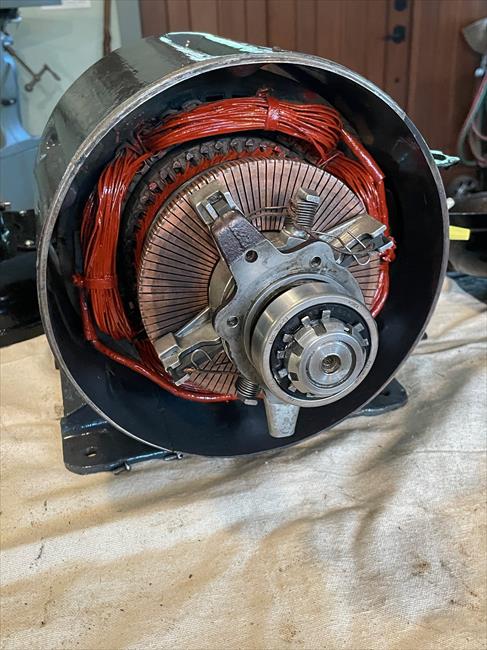

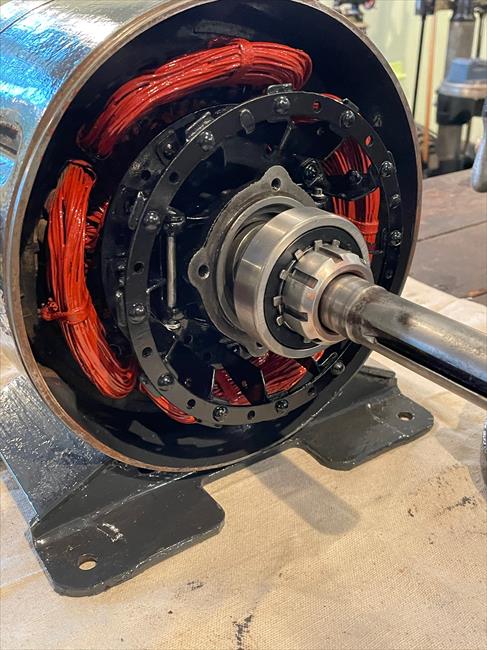

Fellow OWWMer gave this to me for a lathe project. Wagner 2PH 1PH 1750RPM Model 8R80J896. It was in good overall shape but not running. I tried to take as many pictures as possible because there is very little information on the web regarding the armature assembly or Wagner motors in general. This was a very easy and fun project because the Repulsion Induction armatures are very mechanical in design and operation and you don't need to be an electrical engineer to understand and trouble shoot.

Photo 1:

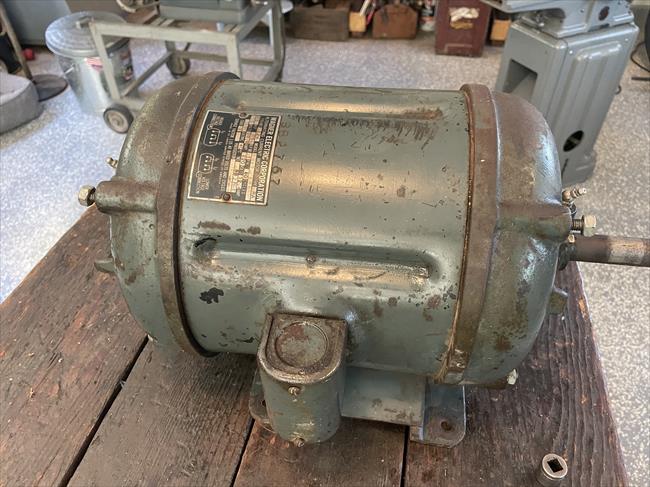

Comments: before
Source:

Direct Link
IMG Code

Photo 2:

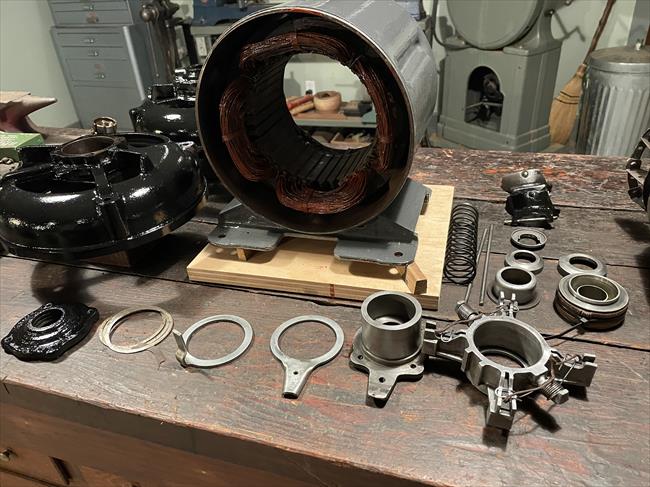

Comments: armature torn down
