Photo Index - Unknown Manufacturer - Unknown

Machinery Photo Index

Manufactured/Badged by:
Unknown Manufacturer
*

True Manufacturer:
Unknown Manufacturer, *

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Jig or Scroll Saw
Machine Size:	14 inch
Submitted By:	Marc Darisse

Machine Specifications
Description/Model:	Unknown
Date of Manufacturer:	cir 1920s?
Serial Number:	Unknown
Last Updated	12/3/2020 2:32:00 PM

Comments:

A member suggested "WWI era" also possibly Waco Tool works / Up to Date machine Works because of the unusual mechanism / . Both Cos seem to be the same. After an extensive search I have not found a specific Patent but have found a patent for the major mechanical works: It is a "floating" C-frame. The C-frame moves up and down from a eccentric wheel and connecting rod. The C-frame rides in 3 brass guides. (see patent #1)
Because of the first reference to Waco TW and an Ad posted here I thought that the Red paint on the machine was a link to Waco but I'm not certain it is! The red paint was applied to a coat of white paint and under that is a black paint which leads me to believe the base color was black.
I have included pictures of the SS as found. (At first glance of the Ad on a web site I thought it was a lathe attachment. when I arrived to pick it up it was so much bigger! The original owner was a machinist if that's of any help?

Photo 1:

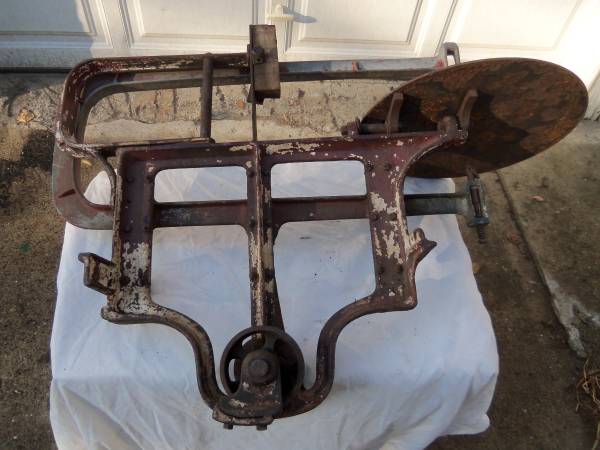

Comments: From the Ad
Source:

Direct Link
IMG Code

Photo 2:

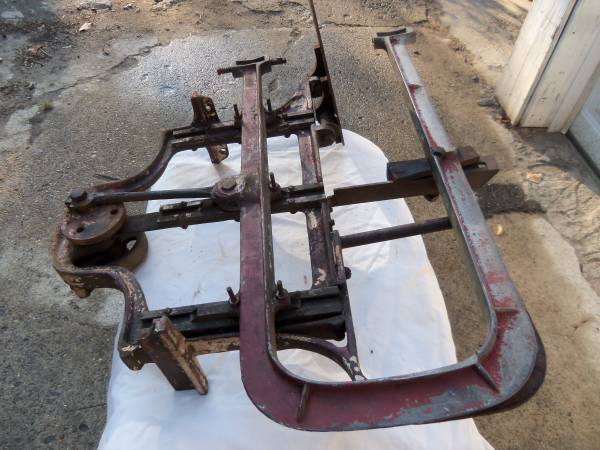

Comments: Back side FTA
Source:

Direct Link
IMG Code

Photo 3:

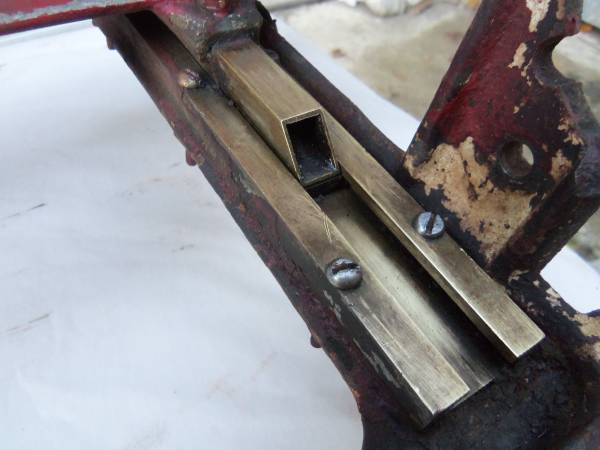

Comments: 1 of 3 brass guides
Source:

Direct Link
IMG Code

Photo 4:

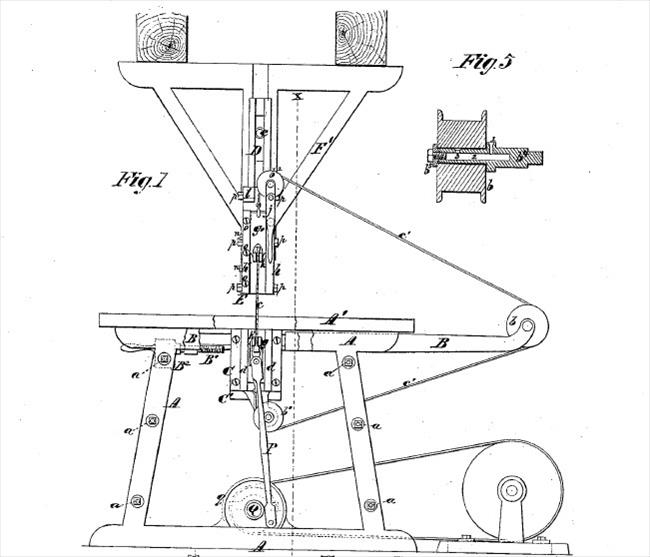

Comments: Patent #1
Source:

Direct Link
IMG Code

Photo 5:

Comments: UTD ad w/floatin c_frame
Source:

Direct Link
IMG Code
