Photo Index - Wadkin Ltd. - RS 1824 Patternmakers Gap Lathe

Machinery Photo Index

Manufactured/Badged by:
Wadkin Ltd.
Nottingham

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Lathe, Wood
Machine Size:	10"
Submitted By:	Phil Kezele

Machine Specifications
Description/Model:	RS 1824 Patternmakers Gap Lathe
Date of Manufacturer:	1957
Serial Number:	56622
Last Updated	5/4/2023 7:48:16 PM

Comments:

Due to Covid-19, I was not able to travel to Northern California in March 2020 to pickup this machine. PO kept the machine and waiting for me to find a good opportunity and when the PO purchased some equipment in my own hometown area the trip was planned. The PO delivered the lathe before picking up his new machine. This is the largest RS lathe, it has 10 1/4" height to centers (32 1/2" in the gap), 8 speeds (4 spindles x 2 motor speeds); floor space = 11' x 2'3"; 7'6" between centers. Machine was built in Leicester not Nottingham UK. Morse taper 2 in head/tailstocks. Headstock spindle is 1-3/8-6 BSW, not a common size here in the US but Oneway has adapters for their Stronghold Chucks. Weight 1710lbs. 1 1/2 HP 2 speed motor running at 900-1,800 rpm (240, 380, 600, 900, 1,150, 1,750, 2,220, 3,360). 12" and 18" face plates came on the 1-1/2 outboard spindle; 6" and 12" plates available on the inboard spindle. 2-18-21 VFD with remote station Installed to give virtually limitless speed control.

Photo 1:

Comments: Setup in the shop. Steel rectangular rails were used to support lathe during transportation and installation.
Source: My Nikon

Direct Link
IMG Code

Photo 2:

Comments: Tailstock end with outboard tripod.
Source: My Nikon

Direct Link
IMG Code

Photo 3:

Comments: Speed Control, 4 belt speeds x 2 motor speeds
Source:

Direct Link
IMG Code

Photo 4:

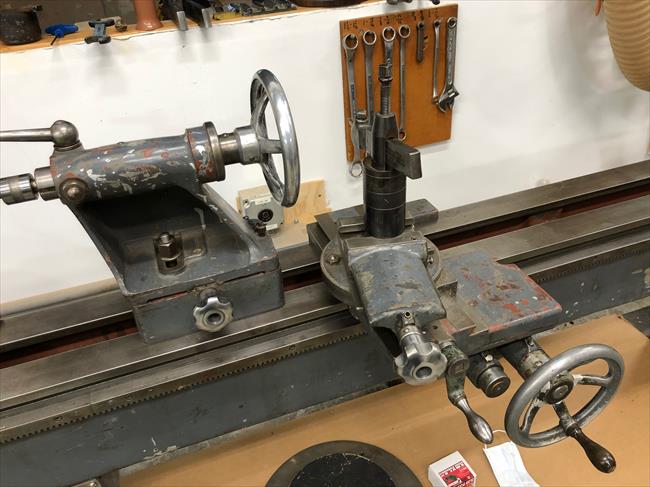

Comments: Tailstock with revolving center and Traveling Slide Tool Carriage
Source: My Nikon

Direct Link
IMG Code

Photo 5:

Comments: Traveling slide tool carriage
Source: My Nikon

Direct Link
IMG Code

Photo 6:

Comments: Serial # Plate
Source: My Nikon

Direct Link
IMG Code
