Manufactured/Badged by:
South Bend Lathe Works
South Bend, IN

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	10"
Submitted By:	Larry Roth

Machine Specifications
Description/Model:	line shaft drive-South Bend
Date of Manufacturer:	Unknown
Serial Number:	1434
Last Updated	6/13/2020 7:23:23 PM

Comments:

I bought this lathe on an on-line auction. It is very old. I contacted South Bend and they told me it was too old to identify! They also told me the serial number was not a good number. This lathe is an "overhead line shaft drive". There is no model number plate on it. The only identification is a brass plate with the threading gear setup. This plate says that it is a South Bend lathe. I would like to know the model and year built. The current drive is not a very good setup and I plan on installing the motor over the top of the headstock. The back gear and the other step pulley was included with the sale.

Photo 1:

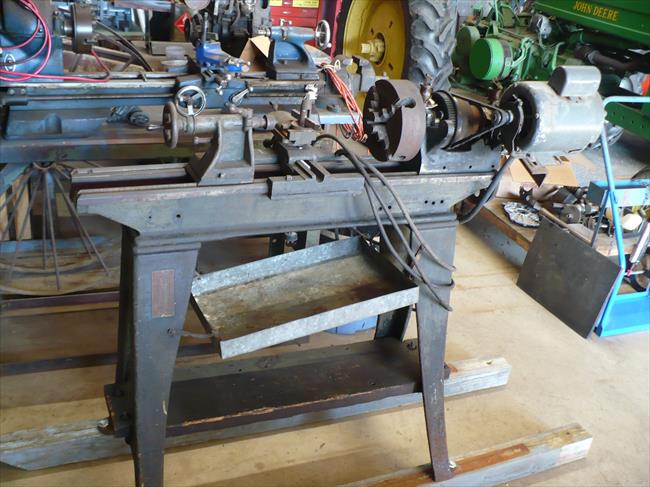

Comments: Side view
Source: Larry Roth

Direct Link
IMG Code

Photo 2:

Comments: End view
Source: Larry

Direct Link
IMG Code

Photo 3:

Comments: Serial number
Source: Larry

Direct Link
IMG Code

Photo 4:

Comments: Tailstock
Source: Larry

Direct Link
IMG Code

Photo 5:

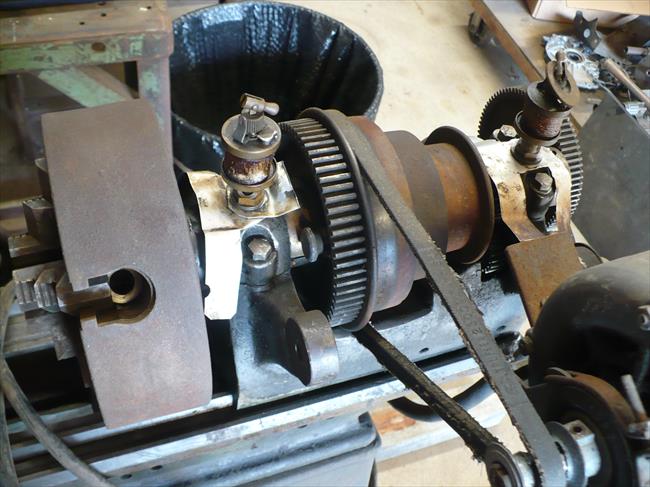

Comments: Current drive setup
Source: Larry

Direct Link
IMG Code

Photo 6:

Comments: Front view
Source: Larry

Direct Link
