Barnes Drill Co.
Rockford, IL

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	14”-24”
Submitted By:	Patrick Moser

Machine Specifications
Description/Model:	Barnes drill co gap bed lathe
Date of Manufacturer:	Early 1900s
Serial Number:
Last Updated	2/1/2020 3:28:53 PM

Comments:

This is my Barnes drill co gap bed lathe, it was in rough shape when I got it. The power feed is broken which I will fix eventually but for now I hand mill things with it. I believe I bought it around 2010. The people I bought it from said they had only been using it a month before but it was covered in sand and junk and I probably overpaid for it. But I use it as much as I can. It has a conversion from line shaft to single motor with a 4 speed gearbox. Has a 12 inch 4 jaw chuck and a swing of 14” with the bed gap closed and 24” with the gap open.

Photo 1:

Comments: Barnes drill co lathe
Source: Myself

Direct Link
IMG Code

Photo 2:

Comments: 4 speed gearbox on lathe
Source: Myself

Direct Link
IMG Code

Photo 3:

Comments: Gear selection tag for threading
Source: Myself

Direct Link
IMG Code

Photo 4:

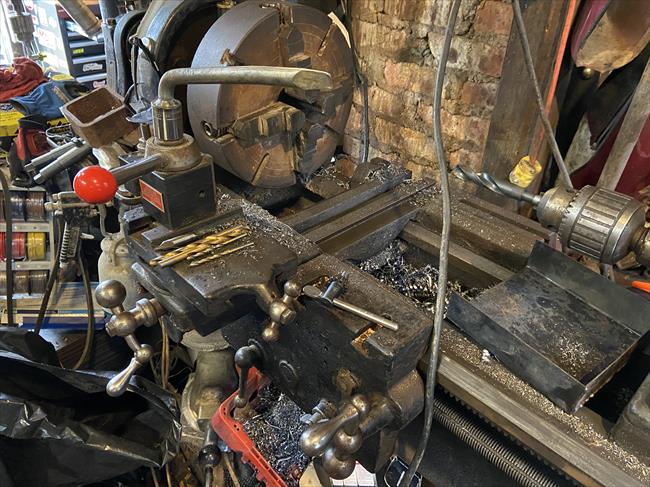

Comments: Lathe covered with metal shavings
Source: Myself

Direct Link
IMG Code
