Manufactured/Badged by:
Willson Lathes Ltd.
Halifax, England

True Manufacturer:
Willson Lathes Ltd., Halifax, England

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	17x46
Submitted By:	Jeff Joslin

Machine Specifications
Description/Model:	Gap-bed engine lathe
Date of Manufacturer:	1952 (roughly)
Serial Number:	755
Last Updated	3/7/2019 9:10:59 AM

Comments:

This is not my lathe, I saw it for sale on my local kijiji and got permission from the seller to post it here. This model is known as the "Pitel" lathe, after the telegraph code used to order it. This model was manufactured between 1950 and '60, and this example is from early in its run (see Grace's Guide page, linked below). Center height is 8? inches, giving a usable swing of 17 inches. Total bed length is about 78 inches, giving 46 inches between centers.

Spindle speed tops out at 477 RPM. Spindle hole is 2 inches. Somewhat unusual for an English machine, it has an L1 taper on the spindle nose.

Grace's Guide page on this model:
http://www.lathes.co.uk/willson/page7.html

Photo 1:

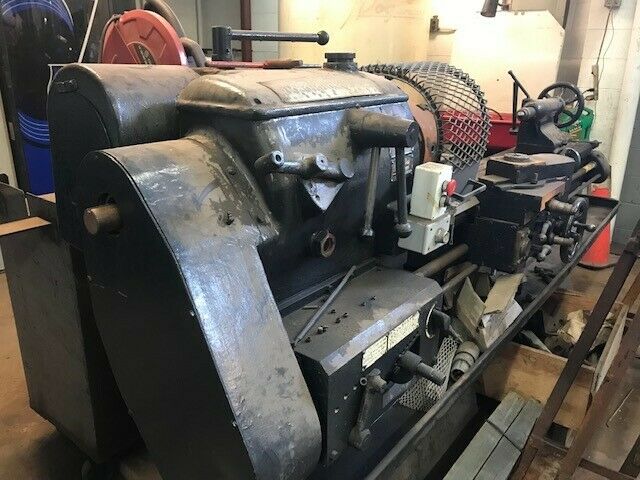

Comments: Left side of headstock
Source: Malmberg Truck Trailer Equipment

Direct Link
IMG Code

Photo 2:

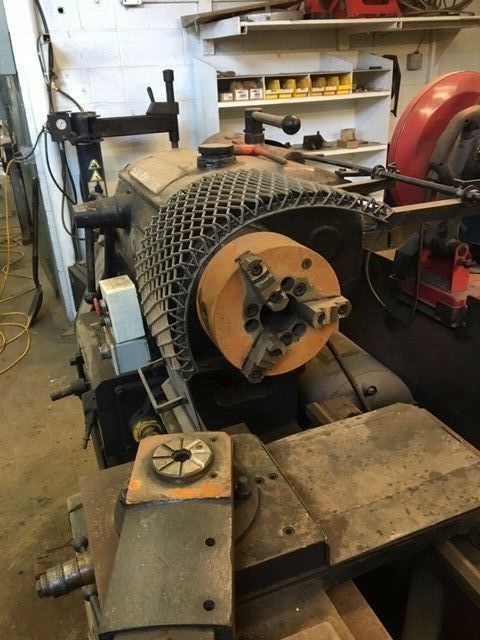

Comments: Headstock and compound
Source: Malmberg Truck Trailer Equipment

Direct Link
IMG Code

Photo 3:

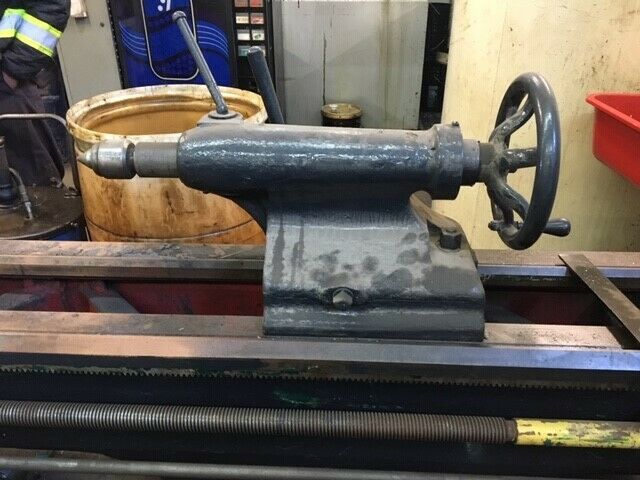

Comments: Tailstock
Source: Malmberg Truck Trailer Equipment

Direct Link
IMG Code

Photo 4:

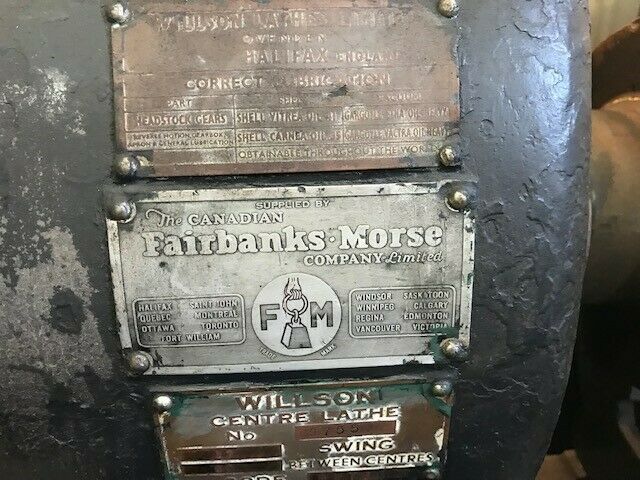

Comments: Plaques
Source: Malmberg Truck Trailer Equipment

Direct Link
IMG Code

Photo 5:

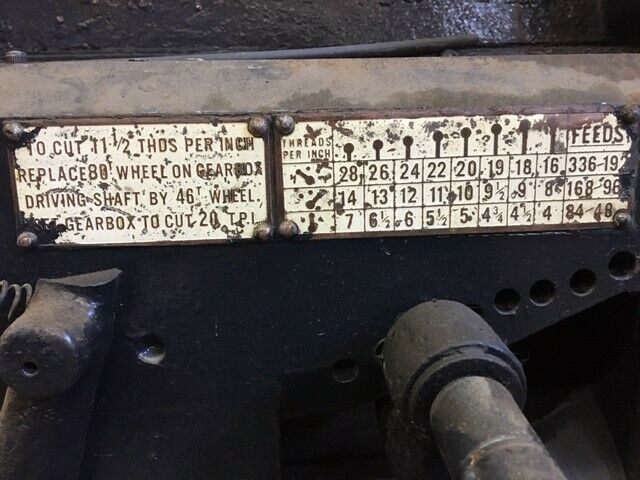

Comments: Speeds & feeds
Source: Malmberg Truck Trailer Equipment

Direct Link
IMG Code
