Photo Index - Champion Tool Works Co. - 12” Engine Lathe

Machinery Photo Index

Manufactured/Badged by:
Champion Tool Works Co.
Cincinnati, OH

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	12”
Submitted By:	M Heidelbaugh

Machine Specifications
Description/Model:	12” Engine Lathe
Date of Manufacturer:	1905-1935
Serial Number:
Last Updated	1/17/2019 2:42:06 AM

Comments:

I have inherated an early 1900's Champion Tool Works Co flat belt metal lathe in full working condition. The lathe has an added 3/4 hp motor added to make the flat belt work. I have pictures in my photo bucket account, mike096photos, and i have two short videos of the lathe working and the carriage moving both ways. The lathe came with the chuck, 8” face plate and 7 extra change gears. I believe my uncle purchased this from his work in the 1980's as he did buy a tool holder then. My uncle passed away about 2 years ago and I have been undecided on what to do with this lathe since.
I located 7 change gears that go with this lathe and a 8" plate that screws on where the 4 jaw chuck is currently located. I believe I got the pictures on my Photo Bucket website. I tried to get both short movies on there but only one is there now, I have the carriage moving x

Photo 1:

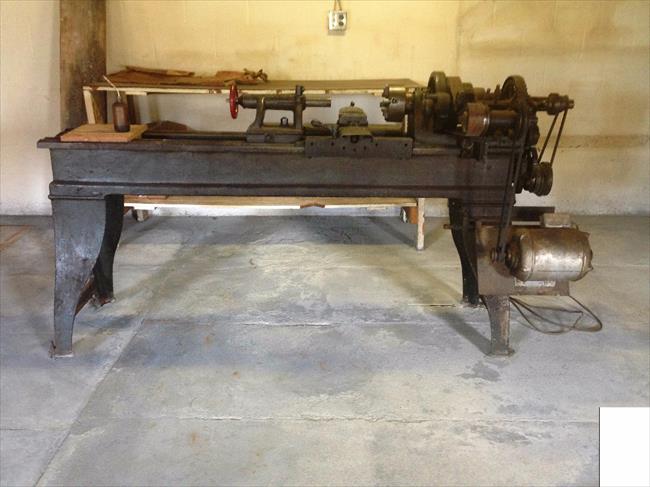

Comments: Entire Lathe with flat belt and added motor
Source: My cell phone

Direct Link
IMG Code

Photo 2:

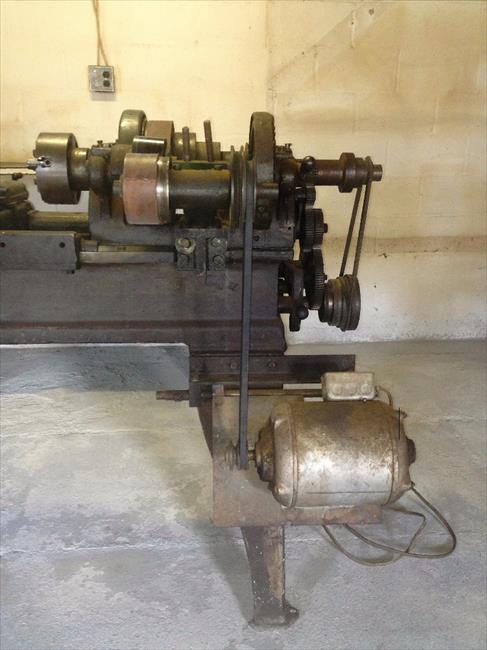

Comments: Closeup of belt end
Source: My cell phone

Direct Link
IMG Code

Photo 3:

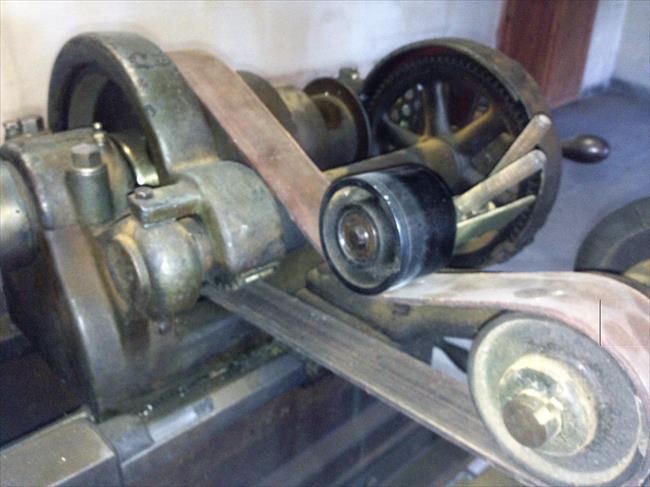

Comments: Closeup of flat belt
Source: My cell phone

Direct Link
IMG Code

Photo 4:

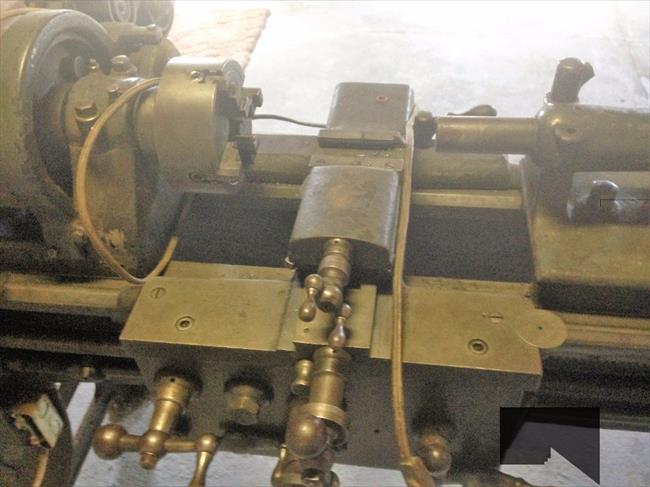

Comments: Carriage
Source: My cell phone

Direct Link
IMG Code

Photo 5:

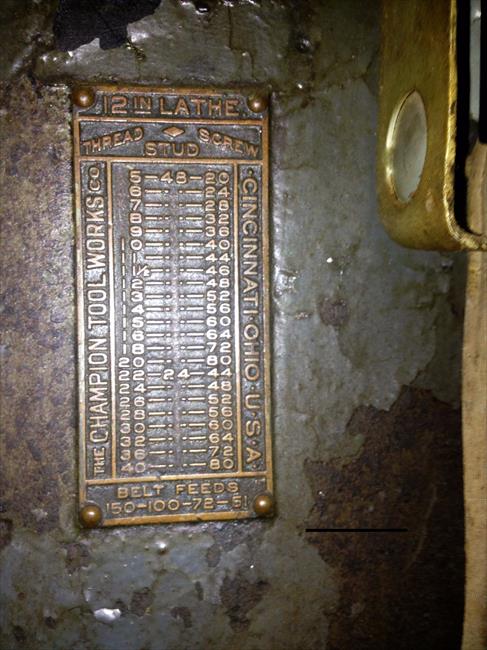

Comments: Closeup of gear label
Source: My cell phone

Direct Link
IMG Code

Photo 6:

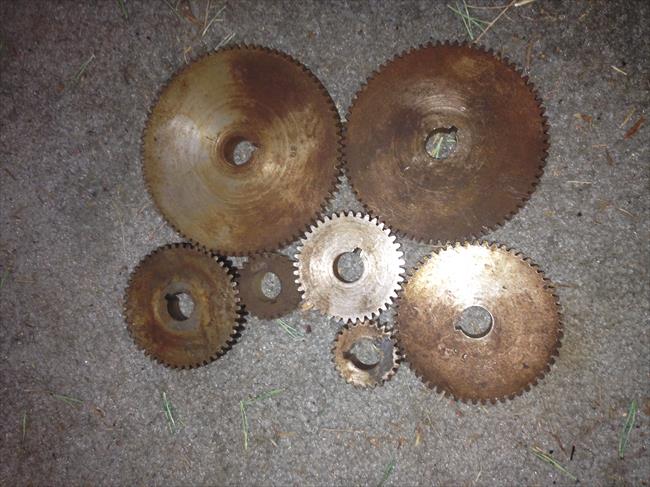

Comments: Extra gears
Source: My cell phone
