Photo Index - W. F. & John Barnes Co. - No. 5 Twin Lead Screw

Machinery Photo Index

Manufactured/Badged by:
W. F. & John Barnes Co.
Rockford, IL.

True Manufacturer:
W. F. & John Barnes Co., Rockford, IL.

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	11 x 36
Submitted By:	Rory Brown

Machine Specifications
Description/Model:	No. 5 Twin Lead Screw
Date of Manufacturer:	1800's - 1920
Serial Number:
Last Updated	10/17/2018 8:00:14 PM

Comments:

I purchased this machine through the local Buy/Sell/Trade. The lathe had obviously been used and maintained as there was a conspicuous lack of rust. All moving parts were well oiled and moved freely. Once I got it home I cleaned it up, added a safety guard, changed the linen belt to a rubber (serpentine) belt, replaced the motor with a permanent magnet variable speed motor with a variable speed controller and for added pizzaz added a digital tachometer.

I hope that the makers of this lathe approve! It somehow seems befitting of their unique, forward thinking design.

I liked this lathe so much that I made a video/slide show with more pre and post pictures. Here is the link https://www.youtube.com/watch?v=z-gLAGyTHu4&feature=youtu.be

Photo 1:

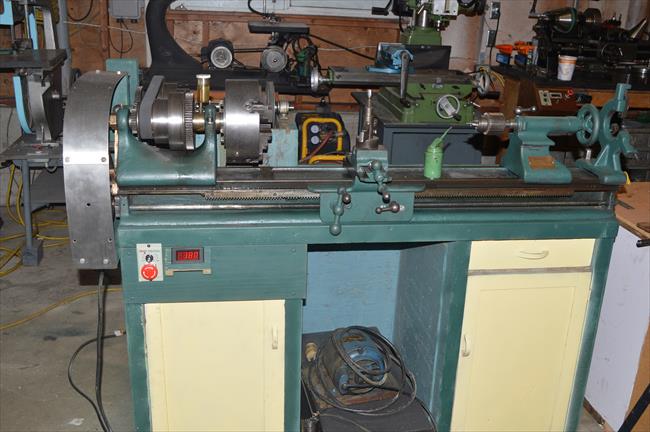

Comments: After restoration. Added stainless steel guard, changed the motor from 1/4 HP to 2.5 HP permanent magnet motor with variable speed control. For added pizzaz I added a digital tachometer.
Source: my camera

Direct Link
IMG Code

Photo 2:

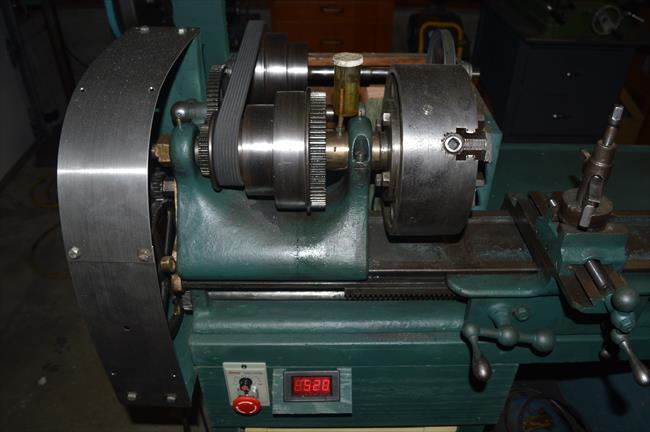

Comments: Post restoration view of headstock, Ker and Goodwin chuck, on/off switch, digital tachometer and safety guard.
Source: my camera

Direct Link
IMG Code

Photo 3:

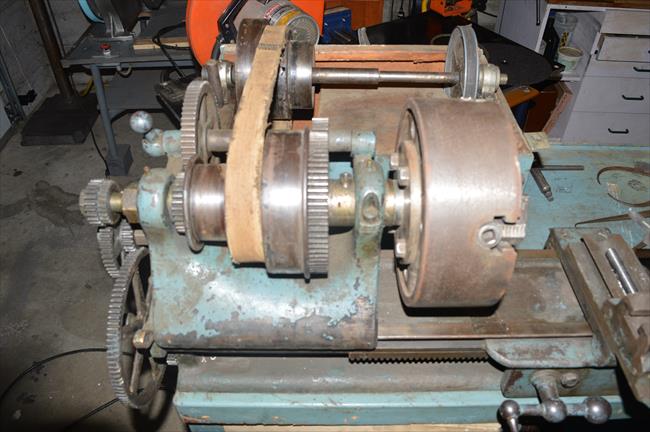

Comments: Pre restoration view of headstock with linen belt
Source: my camera

Direct Link
IMG Code

Photo 4:

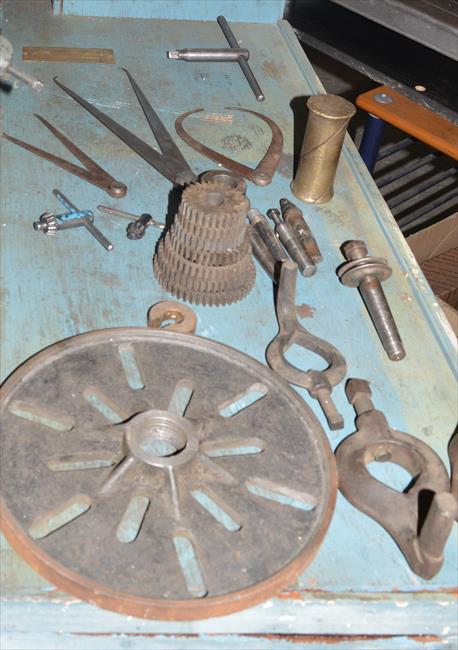

Comments: Some of the tooling that came with the lathe
Source:

Direct Link
IMG Code

Photo 5:

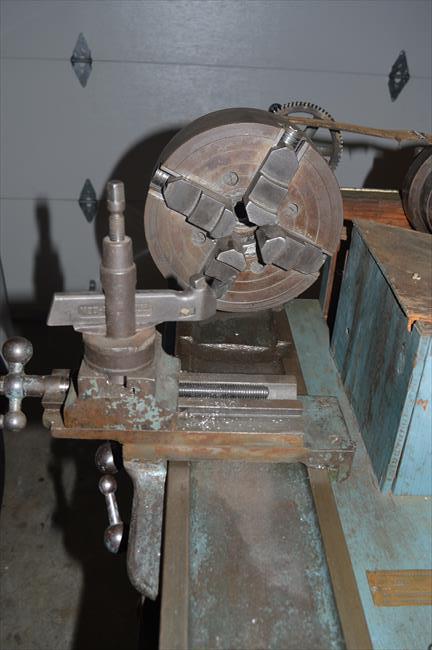

Comments: Image from the tailstock end showing the tool carriage and the Ker and Goodwin 4 jaw chuck.
Source: my camera

Direct Link
IMG Code

Photo 6:

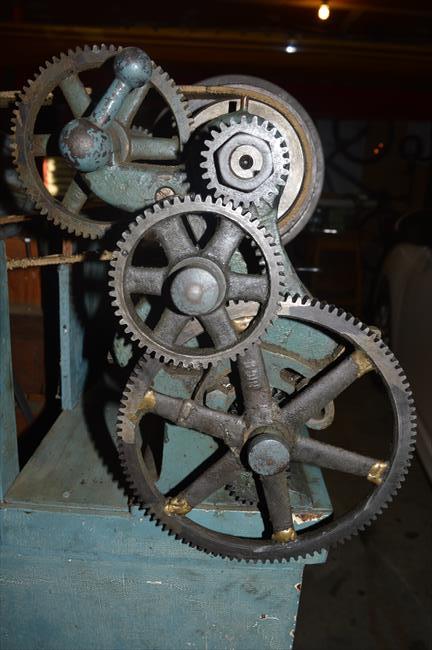

Comments: Change gears and Back Gear before restoration
Source: my camera

Direct Link
IMG Code
