Photo Index - Sears | Craftsman - 109.20630

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
Double A Products Co., Ann Arbor, MI; Manchester, MI

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Lathe, Metal
Machine Size:	6 x 12
Submitted By:	LeRoy Jones

Machine Specifications
Description/Model:	109.20630
Date of Manufacturer:	~1948
Serial Number:	NA
Last Updated	10/4/2018 10:38:09 PM

Comments:

I won this at the arnfest silent auction in 2018.

Came with some correspondence on the purchase of the 3 jaw chuck. Dated 1961.

Apparently had the spindle replaced at one time, had the old one in the box.

Seems pretty tight for its age, and other than pretty dirty, not seen a lot of use.

Came with: full set of change gears, face plate with dog, extra set of chuck jaws and centers for holding wood.

Will clean up, lube, and add a small hp 1725 motor. I will start my grandson out on this before going to the big one.

Photo 1:

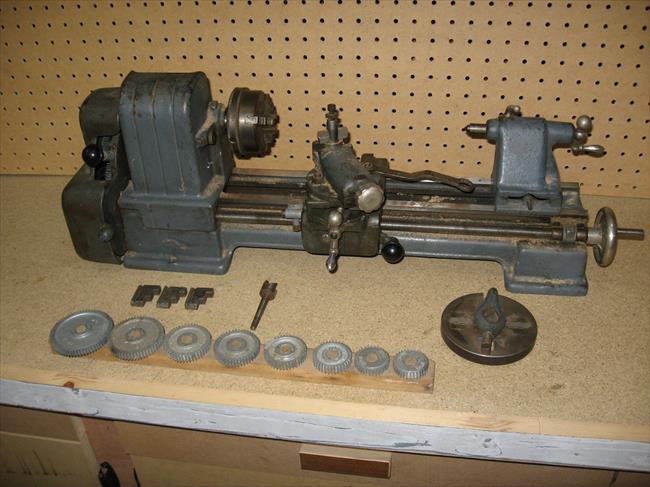

Comments: Front shot with acces.
Source: Cannon Powershot

Direct Link
IMG Code

Photo 2:

Comments: Backside
Source: Cannon Powershot

Direct Link
IMG Code

Photo 3:

Comments: 3 Jaw Chuck
Source: Canon Powershot

Direct Link
IMG Code

Photo 4:

Comments: Threading Chart
Source: Canon Powershot

Direct Link
IMG Code

Photo 5:

Comments: Zamak Gears look OK
Source: Canon Powershot

Direct Link
IMG Code

Photo 6:

Comments: Model Tag
Source: Canon Powershot

Direct Link
IMG Code
