Photo Index - Beach Manufacturing Co. - Single Axis Wood Shaper

Machinery Photo Index

Manufactured/Badged by:
Beach Manufacturing Co.
Montrose, PA

True Manufacturer:
Beach Manufacturing Co., Montrose, PA

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Shaper, Wood
Machine Size:	2 HP 1 1/4 spindle
Submitted By:	Daniel Catizone

Machine Specifications
Description/Model:	Single Axis Wood Shaper
Date of Manufacturer:	Circa 1947
Serial Number:	54D19
Last Updated	2/27/2018 10:06:52 AM

Comments:

I don't know much about the origin of this machine. I seems that there is very scarce information about Beach MFG Co on the internet I'd love to know this date of manufacturing for this guy as I am currently restoring and upgrading it piece by piece. It did come from the factory with a single phase 115 volt Baldor motor which I find odd. I would imagine a machine of this age would have a three phase 208 motor. I also have some paper tags that came with the machine going over greasing procedure, setup, and wiring diagrams for high and low voltage. The inside of the Cutler Hammer motor control shows a Manufacture date of April 1947 so I'm assuming the shopper was assembled within a few years of that date if not that same year.

Photo 1:

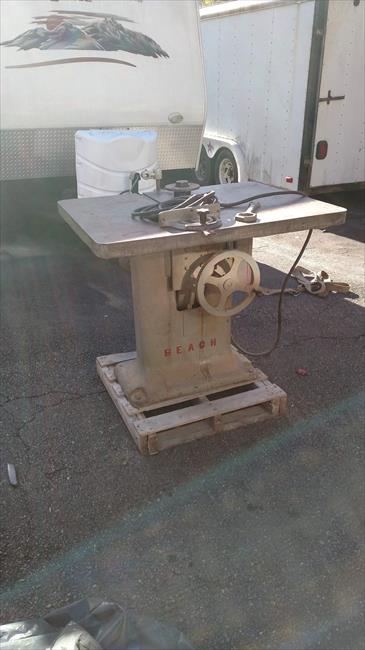

Comments: Day 1 after I unloaded the shaper off my trailer the day I purchased it p
Source: Daniel Catizone

Direct Link
IMG Code

Photo 2:

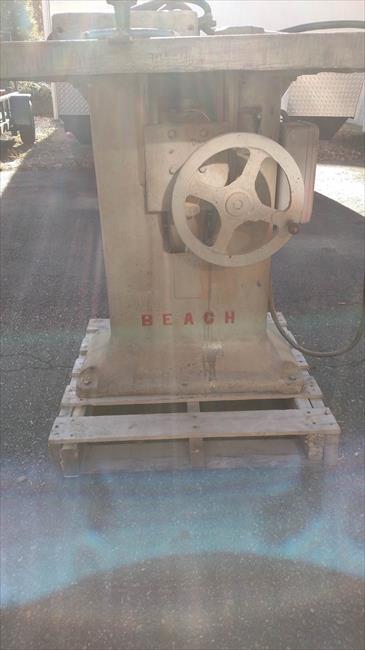

Comments: Vertical mounted height adjustment wheel
Source: Daniel Catizone

Direct Link
IMG Code

Photo 3:

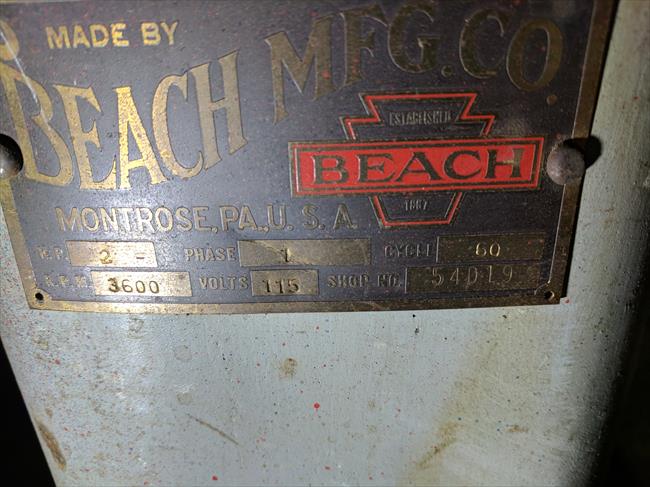

Comments: The nameplate on the machine itself.
Source: Daniel Catizone

Direct Link
IMG Code

Photo 4:

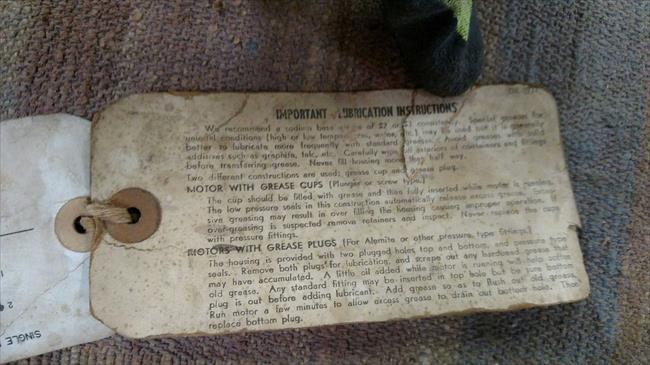

Comments: Spindle lubrication guide
Source: Daniel Catizone

Direct Link
IMG Code

Photo 5:

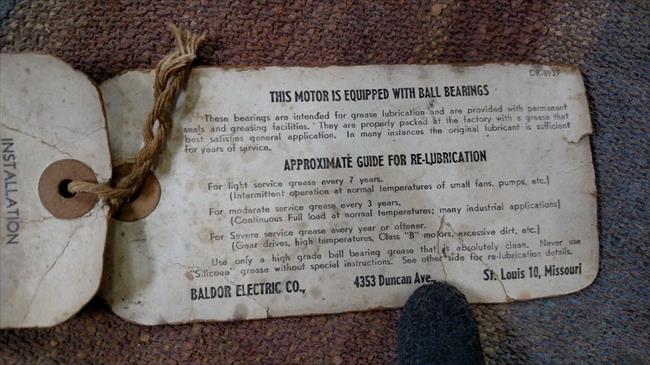

Comments: Motor lubrication guide
Source: Daniel Catizone

Direct Link
IMG Code

Photo 6:

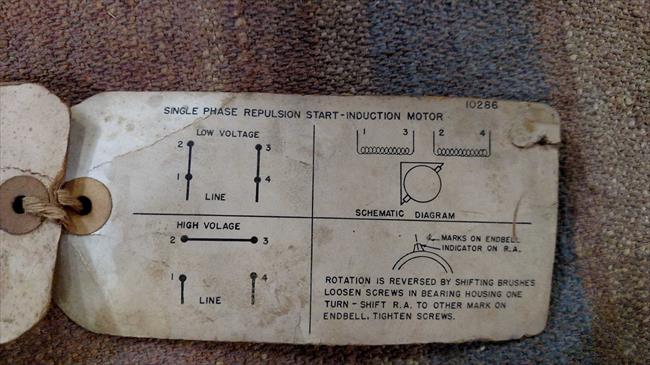

Comments: High and low voltage wiring diagrams
Source: Daniel Catizone

Direct Link
IMG Code
