Photo Index - South Bend Lathe Works - Chain drive to 9" junior lathe

Machinery Photo Index

Manufactured/Badged by:
South Bend Lathe Works
South Bend, IN

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Other
Machine Size:	9" Lathe (Cat.# 322 YC)
Submitted By:	jordie field

Machine Specifications
Description/Model:	Chain drive to 9" junior lathe
Date of Manufacturer:	1927
Serial Number:	36753 (View SN Registry Entry)
Last Updated	1/15/2018 1:59:25 PM

Comments:

This very rare chain drive is on a 9" Junior lathe. They were originally together when sold, and still are. See other listing for details of lathe and drive under my name. This is to provide more details of the drive itself. This originally double the cost of the lathe in the 1930's. You can imagine that the depression limited sales of this attachment. This is in all original shape and is uncleaned and as found condition. The oversized Westinghouse and Switch are original to itself. This is the same equipment as is found in the 1930's South Bend Lathe Works catalogs under this lathe.

Photo 1:

Comments: profile of chain drive, scaled to machine
Source: my tool

Direct Link
IMG Code

Photo 2:

Comments: profile of chain drive with cover removed
Source: my i tool

Direct Link
IMG Code

Photo 3:

Comments: chain, motor and switch
Source: my tool

Direct Link
IMG Code

Photo 4:

Comments: top view of chain drive. Cover removed to show chain type
Source: my iPhone

Direct Link
IMG Code

Photo 5:

Comments: close up of hardware and engaging laver
Source: my iPhone

Direct Link
IMG Code

Photo 6:

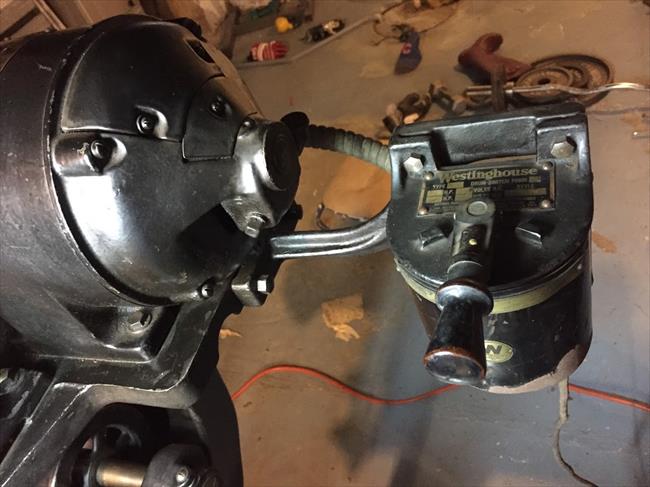

Comments: westinghouse motor and switch and hardware to mount. Oversized and made with unprecedented quality before or since
Source: my iPhone

Direct Link
IMG Code
