Photo Index - Oliver Machinery Co. - Pattern Makers 16" Jointer

Machinery Photo Index

Manufactured/Badged by:
Oliver Machinery Co.
Grand Rapids, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Jointer
Machine Size:	16" wide, 9' long
Submitted By:	M C

Machine Specifications
Description/Model:	Pattern Makers 16" Jointer
Date of Manufacturer:
Serial Number:	204-16
Last Updated	11/23/2017 3:26:38 PM

Comments:

Purchased at an estate auction. Yet to confirm the horse power, but the heaters are Furnas E67, which works out to 220v @ 7.5 hp. Going to make the VFD/phase conversion expensive (or, just run a smaller VFD and let it trip). No data plate for either the motor or machine. There is an end cap on the motor with a design on it. And it is 3 phase. The auction house powered it on, said it ran right up to speed. The head looks to be a gib style with 3 blades. The oil cups have clean steel wool in them, otherwise no idea of the condition at this time. https://books.google.com/books?id=QX_mAAAAMAAJ&pg=PA18&dq=oliver+mfg+company+pattern+maker+jointer+1903&hl=en&sa=X&ved=0ahUKEwi7qZ3svdXXAhVQ7mMKHUPeA80Q6AEIJjAA#v=onepage&q=oliver%20mfg%20company%20pattern%20maker%20jointer%201903&f=false

Photo 1:

Comments: On the way home: does my trailer make my jointer look small?
Source: Cell phone

Direct Link
IMG Code

Photo 2:

Comments: Does my jointer got booty?
Source:

Direct Link
IMG Code

Photo 3:

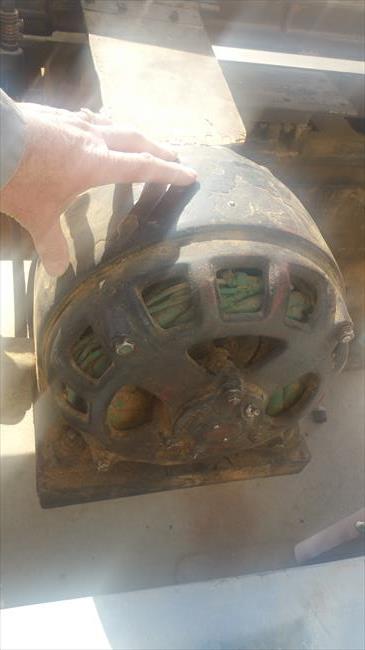

Comments: My hand on the motor.
Source:

Direct Link
IMG Code

Photo 4:

Comments: motor coupling
Source:

Direct Link
IMG Code

Photo 5:

Comments: Guard, most of it that is.
Source:

Direct Link
IMG Code

Photo 6:

Comments: Drive motor, unable to figure out who made it, etc. Note the drain plug. That is at the bottom of the motor.
Source:

Direct Link
IMG Code
