Photo Index - Seymour & Whitlock - Foot Miter Trimmer

Machinery Photo Index

Manufactured/Badged by:
Seymour & Whitlock
Newark, NJ

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Universal Trimmer
Machine Size:	2 1/4 Cut
Submitted By:	Gary Naylor

Machine Specifications
Description/Model:	Foot Miter Trimmer
Date of Manufacturer:	1873
Serial Number:
Last Updated	1/17/2017 5:46:28 PM

Comments:

In the A.J.Wilkinson Boston Hardware and tool Catalogue of 1873-1874 they list this as

Seymour's Pat. Foot Miter Available in three sizes to cut 2 1/4" 3" 4"
This is the 2 1/4 size.

A complete example with original Finish

In the last photo you can see the holes in the blades, they must have used the same knifes for
the 3 different size machines , but if you move the blades up they will not reach below the table
on this model.

Photo 1:

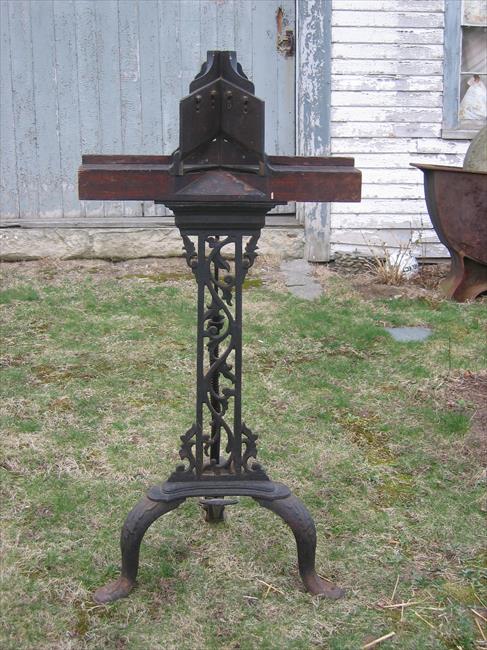

Comments: Front View
