Photo Index - Montgomery Ward | Powr-Kraft - 15FD3481A Medium Duty 8" tilting arbor

Machinery Photo Index

Manufactured/Badged by:
Montgomery Ward | Powr-Kraft
*

True Manufacturer:
Duro Metal Products Co., Chicago, IL.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Table Saw
Machine Size:	8"
Submitted By:	Reuben Deumling

Machine Specifications
Description/Model:	15FD3481A Medium Duty 8" tilting arbor
Date of Manufacturer:	1951
Serial Number:
Last Updated	5/3/2016 6:11:41 AM

Comments:

No examples of this low end Montgomery Ward table saw appeared here so I felt sorry for it and bought it for purposes of documentation. The 4" wide drum pulley is perhaps its most distinctive feature. This allows the saw arbor to be tilted up to 45deg while the motor remains stationary. It is a rather small saw, and the internals appear to be mostly Zamac/potmetal.

Photo 1:

Comments: side view showing drive layout
Source: own photo

Direct Link
IMG Code

Photo 2:

Comments: front view, badge, tilt scale, elevation and tilt wheels/locking knob
Source: own photo

Direct Link
IMG Code

Photo 3:

Comments: 3/4 view with original switch, table extensions, miter gauge
Source: own photo

Direct Link
IMG Code

Photo 4:

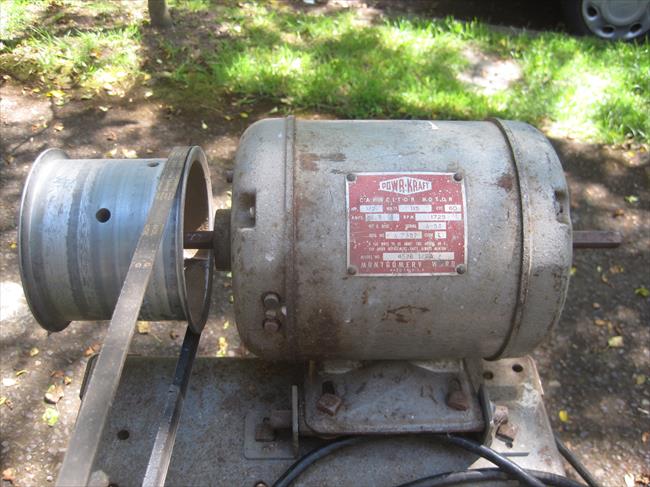

Comments: motor and pulley setup
Source: own photo

Direct Link
IMG Code

Photo 5:

Comments: Interesting extension table leveling mechanism. The tables are attached with a bolt at the rear, and the front leveling screws are set before tightening the bolt in the front center
Source: own photo

Direct Link
IMG Code

Photo 6:

Comments: 1952-53 catalog cut
Source: http://vintagemachinery.org/pubs/657/891.pdf
