Photo Index - Linley Brothers Co. - Linley Jig Borer, Mk. 1A, quill power feed and General Electric Polydyne Adjustable Speed Dri

Machinery Photo Index

Manufactured/Badged by:
Linley Brothers Co.
Bridgeport, CT

True Manufacturer:
Linley Brothers Co., Bridgeport, CT

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Other
Machine Size:	7" by 17.5" table
Submitted By:	Daniel Burgoyne

Machine Specifications
Description/Model:	Linley Jig Borer, Mk. 1A, quill power feed and General Electric Polydyne Adjustable Speed Dri
Date of Manufacturer:	Approx 1966
Serial Number:	4448
Last Updated	4/3/2016 6:31:37 PM

Comments:

Linley Jig Borer, Mk. 1A, with quill up and down power feed and General Electric Polydyne Adjustable Speed Drive. This Polydyne drive adjusts speeds from 276 to 2760 RPM with a 1200 RPM, 3 phase motor. Final spindle speed range is 110 to 3533 RPM by changing the v belt on two-step pulleys. Table travel is approx 5.75" by 11" while quill travel is just under 3". Weighs 800 lbs.

This machine resided in a research lab of the Government of Canada until I acquired it.

Photo 1:

Comments: Linley jig borer with table covers in place.
Source:

Direct Link
IMG Code

Photo 2:

Comments: Quill with power up and down gearbox
Source:

Direct Link
IMG Code

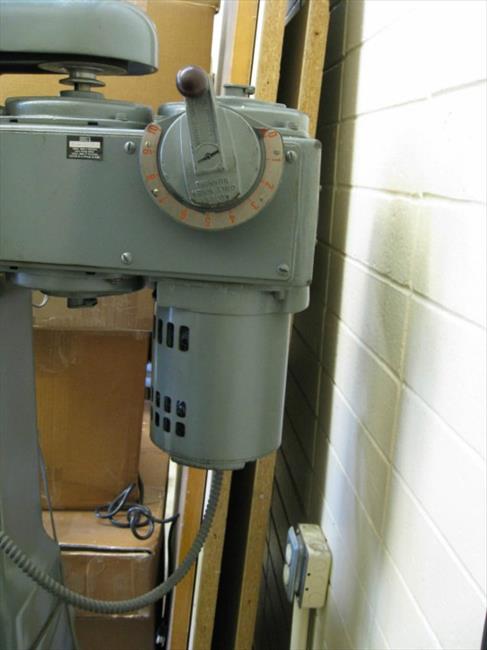

Photo 3:

Comments: GE Polydyne Adjustable Speed Drive 276-2760 RPM
Source:

Direct Link
IMG Code

Photo 4:

Comments: GE Polydyne Unit instruction label
Source: Daniel Burgoyne

Direct Link
IMG Code

Photo 5:

Comments: GE Polydyne and Motor label
Source: Daniel Burgoyne

Direct Link
IMG Code

Photo 6:

Comments: Large gearbox for quill feed and original light
Source:

Direct Link
IMG Code
