Photo Index - William Laidlaw, Inc. - JM 20

Machinery Photo Index

Manufactured/Badged by:
William Laidlaw, Inc.
Belmont, NY

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Band Saw
Machine Size:	20"
Submitted By:	Bob Nawa

Machine Specifications
Description/Model:	JM 20
Date of Manufacturer:	1930's through early 50's
Serial Number:	1156
Last Updated	1/3/2016 5:04:10 PM

Comments:

This is my shop band saw. All castings are Meehanite. It is 20" but a unique feature is the table can be rotated and longer stock cut. Vise is quick acting with lever. The vise can be rotated for angle cuts. Entire vise can be removed with one cap screw. Gravity feed with an automatic stop. All bearings are flood lubricated except top which is greased. Wheels 20" with 1" face. Upper wheel use cup and cone ball bearings. Mine has 4 speeds 100 to 300 fpm. It appears that the table was machined flat with a planer. Here is link to thread that shows more detailed parts: http://www.owwm.org/viewtopic.php?f=77&t=168004.

Photo 1:

Comments: Side View
Source: Bob Nawa

Direct Link
IMG Code

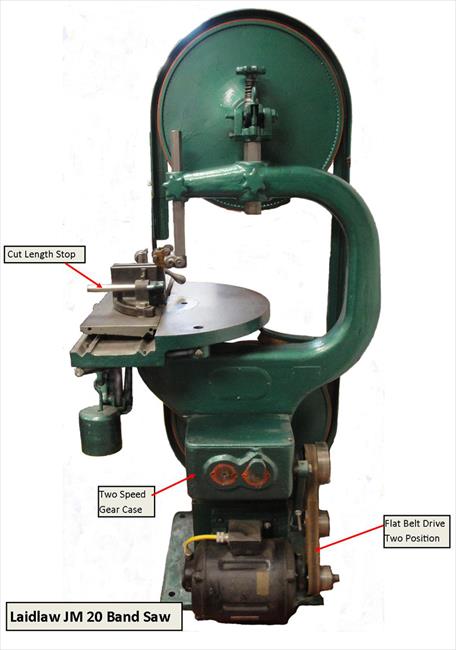

Photo 2:

Comments: Front View
Source: Bob Nawa

Direct Link
IMG Code

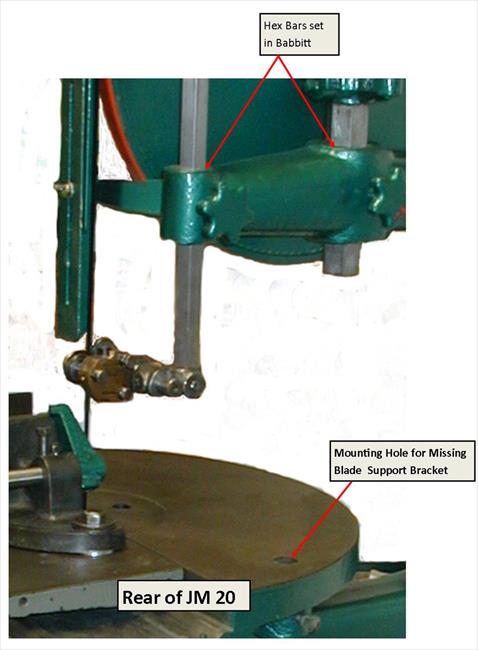

Photo 3:

Comments: Rear view
Source: Bob Nawa

Direct Link
IMG Code

Photo 4:

Comments: Table view
Source: Bob Nawa

Direct Link
IMG Code

Photo 5:

Comments: Manufacturer Plate
Source: Bob Nawa

Direct Link
IMG Code
