Photo Index - Oliver Machinery Co. - Type H fence for model 270

Machinery Photo Index

Manufactured/Badged by:
Oliver Machinery Co.
Grand Rapids, MI

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Table Saw
Machine Size:	n/a
Submitted By:	Doug Westlind

Machine Specifications
Description/Model:	Type H fence for model 270
Date of Manufacturer:	1942
Serial Number:
Last Updated	2/20/2005 12:00:00 AM

Comments:

This is the type H fence that came with a 1942 Oliver 270 table saw. The 270 was offered with the type G which was a plain t-square style fence, the type J center mounted micrometer fence, and the type H which was the same as the J style but with the tilting face. The saws came standard with the G style and the J and H fences were considered upgrades. The fence itself is 27" long and 3" high. The assembly is positioned on the table by two tapered pins that fit into tapered holes precision drilled in the table top and it is locked down with a threaded hand knob. It has 9 3/4" of lateral adjustment before the need to switch to a new set of index holes which are on 9" centers across the saws table. The process of changing to a new set takes about 30 seconds.

Photo 1:

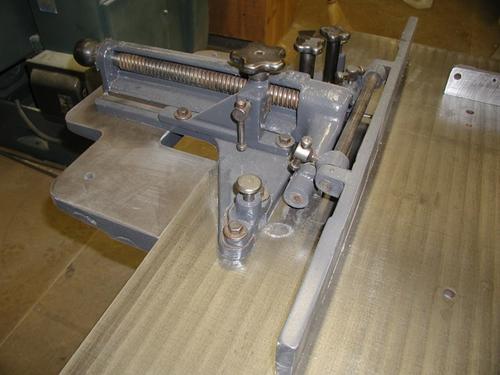

Comments: type H fence on 270
Source: D. Westlind

Direct Link
IMG Code

Photo 2:

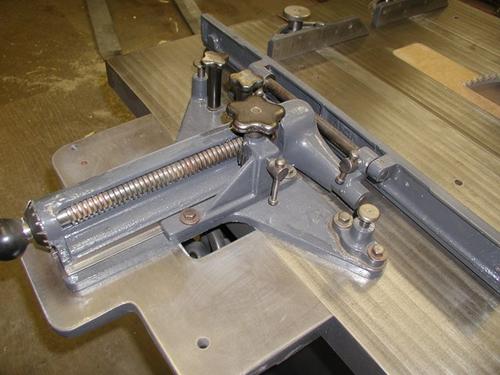

Comments: type H fence on 270
Source: D. Westlind

Direct Link
IMG Code

Photo 3:

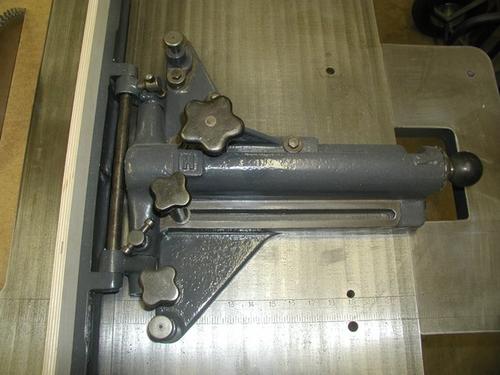

Comments: Another view type H
Source: D. Westlind

Direct Link
IMG Code
