Photo Index - Prestolite-Leland Co. - Electric motor

Machinery Photo Index

Manufactured/Badged by:
Prestolite-Leland Co.
Sarnia, ON

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Motor
Machine Size:	1-1/2 h.p.
Submitted By:	Laurence Byers

Machine Specifications
Description/Model:	Electric motor
Date of Manufacturer:	No idea
Serial Number:	S7111
Last Updated	11/1/2015 10:21:34 AM

Comments:

I bought a homebuilt compressor in a garage sale and this motor was on it. However it had been dropped and the start capacitor was damaged. I recently installed a suitable capacitor and it runs fine, so I went online to look for information. I realized that there was only one other picture of this make of motor and decided to add mine to the resource.
It appears that the motor may have been originally motivating a Jacuzzi, which isn't strictly speaking woodworking machinery. It may not even be old enough to be classed as vintage. However, there appears to be a paucity of information available for this manufacturer, especially in the larger motor sizes. I believe the specs and wiring diagram may be useful to others. And it is certainly going to be used to work wood from now on.

Photo 1:

Comments: Motor with shroud removed
Source: Laurence Byers Samsung phone

Direct Link
IMG Code

Photo 2:

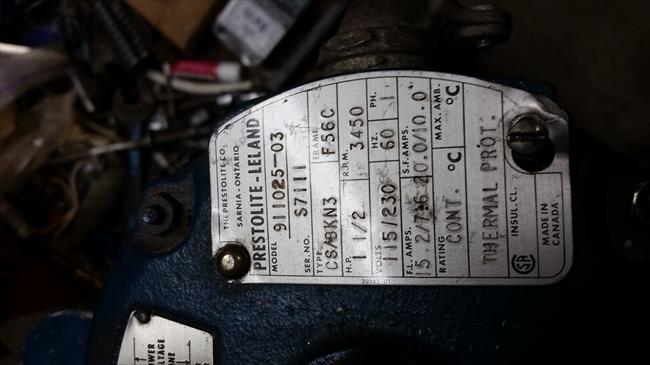

Comments: Motor specs
Source: Laurence Byers Samsung phone

Direct Link
IMG Code

Photo 3:

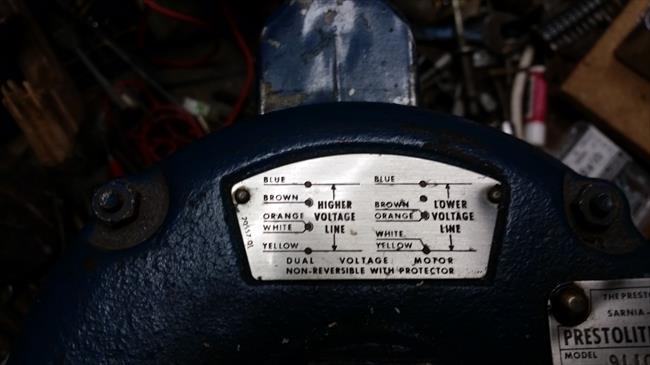

Comments: Dual voltage wiring diagram
Source: Laurence Byers Samsung phone

Direct Link
IMG Code

Photo 4:

Comments: Motor mount
Source: Laurence Byers Samsung phone

Direct Link
IMG Code

Photo 5:

Comments: Jacuzzi certification
Source: Laurence Byers Samsung phone

Direct Link
IMG Code
