Photo Index - Ajax Electric Motor Corp. - M-3-184T drip proof single phase dual voltage

Machinery Photo Index

Manufactured/Badged by:
Ajax Electric Motor Corp.
Rochester, NY

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Motor
Machine Size:	3hp 1750 RPM
Submitted By:	Thom Trail

Machine Specifications
Description/Model:	M-3-184T drip proof single phase dual voltage
Date of Manufacturer:	1970s?
Serial Number:
Last Updated	8/23/2015 6:20:58 AM

Comments:

This is a drip proof motor from a self serve car wash. It ran the high pressure pumps for the spray wands. I bought it off a guy who rescues stuff like this. I changed to sealed bearings and removed the grease nipples. Bearings are 6206 2NSE and 6203 2NSE. Output shaft is 1 1/8"
This motor is unusual in that when wired for 230 volt operation the capacitors are in series with the start windings. When wired for 115 volts each capacitor and it's winding are in series and parallel to the other start winding. Photo 4 shows the two 115 volt capacitors.
Even with new bearings it runs a bit noisily. Maybe due to the sheet metal internal shroud used to direct air around the windings.

Photo 1:

Comments: Origina color was machinery grey, now painted black and gold.
Source: My Nikon Coolpix

Direct Link
IMG Code

Photo 2:

Comments: Nameplate
Source: My Nikon Coolpix

Direct Link
IMG Code

Photo 3:

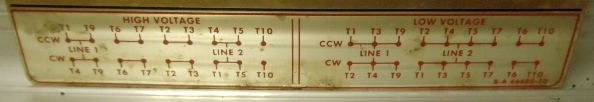

Comments: Wiring diagram
Source: My Nikon Coolpix

Direct Link
IMG Code

Photo 4:

Comments: When wires for 230 volts the capacitors are in series
Source: My Nikon Coolpix

Direct Link
IMG Code
