Photo Index - Sears | Craftsman - 5642

Machinery Photo Index

Manufactured/Badged by:
Sears | Craftsman
Chicago, IL

True Manufacturer:
Sears | Craftsman, Chicago, IL

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Motor
Machine Size:	5 HP
Submitted By:	LeRoy Jones

Machine Specifications
Description/Model:	5642
Date of Manufacturer:	1936/37
Serial Number:	824745
Last Updated	6/16/2015 6:00:51 PM

Comments:

No real history known. Acquired from a fellow OWWM'r in SW Michigan. He received it in a multi machine deal.
This motor is a Repulsion Induction Motor and is very large and heavy.

-Motor tag info-

5HP
Cat # 5642 60 cycle
Volts-110/220 Ph 1
RPM 1750 Amps 52/26
Serial# 824745 74

The tag and case style match the examples in the 1936/37 Craftsman Power Tool Catalogs along with some of the other stated info.
342 lbs.
1 1/4 keyed shaft
Bolt spacing for feet = 12 7/8 x 11
Also noted that there is a cast in # on one of the feet = R36 1. Did not find a reference to this #.

On very odd thing about this motor, all the 5642 catalog #'s are for sleeve bearing motors. This motor is ball bearing.

I was hoping that the grill design on the brush end of the motor would give me a clue as to the true manufacturer of the motor. I compared many makes and did not come up with even a similar design.

Photo 1:

Comments: Side view w/can for size comparison
Source: Myself

Direct Link
IMG Code

Photo 2:

Comments: Tag
Source: Myself

Direct Link
IMG Code

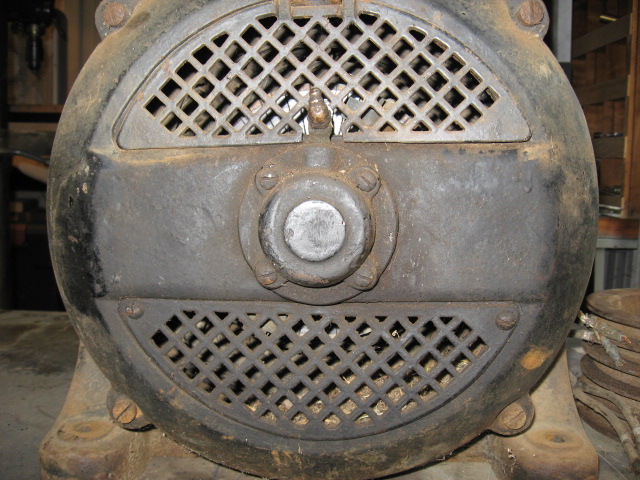

Photo 3:

Comments: Brush end grills
Source: Myself

Direct Link
IMG Code

Photo 4:

Comments: Brushes under grills
Source: Myself

Direct Link
IMG Code

Photo 5:

Comments: Definately Ball Bearing
Source: Myself

Direct Link
IMG Code

Photo 6:

Comments: R36 1 Number on foot
Source: Myself

Direct Link
IMG Code
