Photo Index - J. A. Fay & Egan Co. - No 4-A Miter Trimmer

Machinery Photo Index

Manufactured/Badged by:
J. A. Fay & Egan Co.
Cincinnati, OH.

True Manufacturer:
J. A. Fay & Egan Co., Cincinnati, OH.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Universal Trimmer
Machine Size:	Tabletop
Submitted By:	Dan Davis

Machine Specifications
Description/Model:	No 4-A Miter Trimmer
Date of Manufacturer:
Serial Number:	144311 (View SN Registry Entry)
Last Updated	3/22/2015 6:48:36 PM

Comments:

I picked up this little guy from a gentleman in Rhode Island in the spring of 2015. It was smaller than I was expecting because the last one I had was a freestanding Oliver #3 with a big captains wheel. This piece is interesting because you can see the Fox name also in the casting and for the handle. The handle appears to be brass or bronze which was a surprise to me. As with others the angle marks are scribed into the top. They are barely visible in picture 3. I think it is a 4-A based on the catalog and the slot in the center of the table presumably for carrying it.

Photo 1:

Comments: Front view with wings and stops visible
Source:

Direct Link
IMG Code

Photo 2:

Comments: Rear view including gear mechanism
Source:

Direct Link
IMG Code

Photo 3:

Comments: wing and stop closeup
Source:

Direct Link
IMG Code

Photo 4:

Comments: Bottom view with wings in upper center
Source:

Direct Link
IMG Code

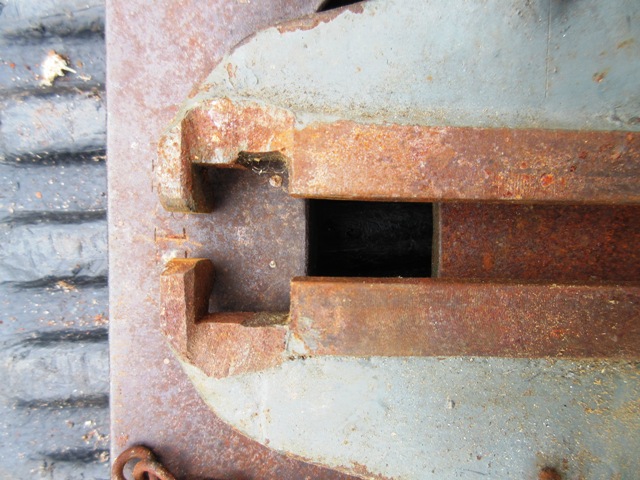

Photo 5:

Comments: closeup of wing upper pivot points
Source:

Direct Link
IMG Code

Photo 6:

Comments: Serial number center front on top surface
Source:

Direct Link
IMG Code
