Photo Index - American Saw Mill Machinery Co. - Monarch X-17

Machinery Photo Index

Manufactured/Badged by:
American Saw Mill Machinery Co.
New York, NY; Hackettstown, NJ.

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Table Saw
Machine Size:	8"
Submitted By:	Bob P

Machine Specifications
Description/Model:	Monarch X-17
Date of Manufacturer:	1920's
Serial Number:	None
Last Updated	8/28/2014 7:43:39 AM

Comments:

I had gone to pick up a WF & John Barnes Co Drill Press and while in one of the owners barns I spotted this old Monarch table saw. I might add this older gentlemen has three barns full of old wood/metal working machines; I felt like a kid in a candy store. I stayed and talked to him for over an hour, taking the tour.
OK back to the table saw. I have gone through the 1928-35 catalogs on our site and found references to an X-17 model but no X17-22 model. Those models shown do not match this entry. The table elevation arm is longer, has a four spoked wheel and does not match the catalogs versions. In the 1923 catalog there are a number of smaller saw' which utilize the same type of extended arm and wheel but again they do not match this saw.
There is no motor attached but in photo 5 a foot peddle can be seen, which I was told, attached to the motor pulley in some way.
The owner said he recalls using many of these tools with his father, as a young person, but was unable to offer a lot of history.
Note: The original entry was on 11/8/12 but due to problems with getting restoration photo's to upload to the original entry I deleted it and posted a new entry.

Photo 1:

Comments:
Source:

Direct Link
IMG Code

Photo 2:

Comments:
Source:

Direct Link
IMG Code

Photo 3:

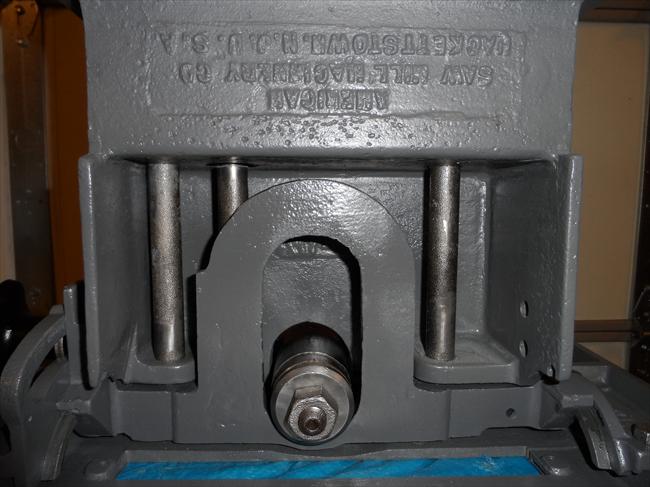

Comments: Laying upside down viewing arbor.
Source:

Direct Link
IMG Code

Photo 4:

Comments: Right side up
Source:

Direct Link
IMG Code

Photo 5:

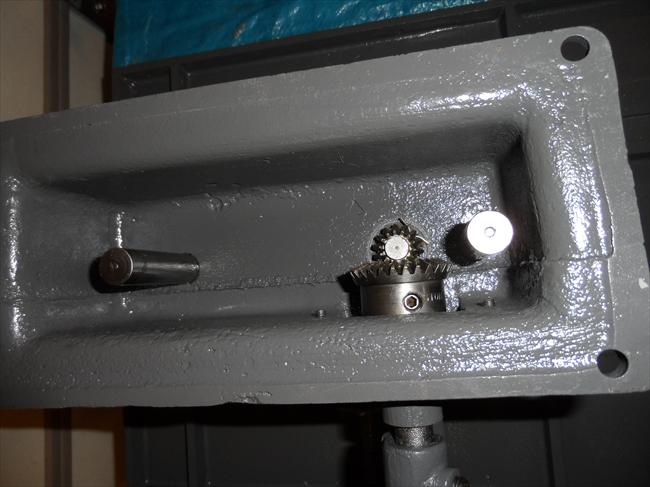

Comments: Elevation gear.
Source:

Direct Link
IMG Code

Photo 6:

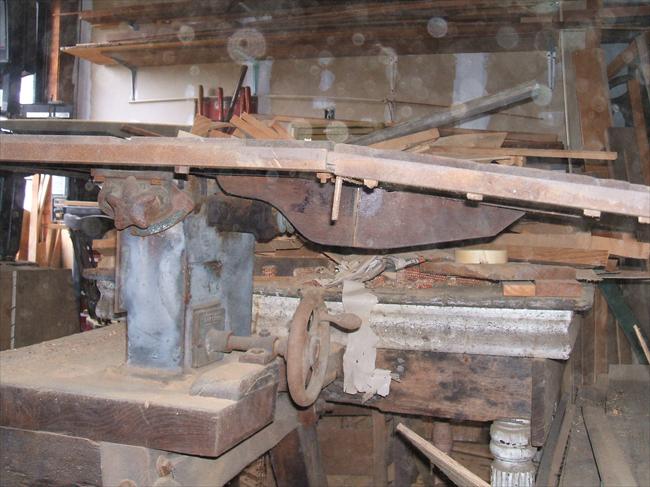

Comments: As it appeared when picked up.
