Photo Index - International Harvester Company of America - Sickle Saw Grinder

Machinery Photo Index

Manufactured/Badged by:
International Harvester Company of America
Chicago, IL

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Grinder, Bench
Machine Size:
Submitted By:	Bob P

Machine Specifications
Description/Model:	Sickle Saw Grinder
Date of Manufacturer:	1903-
Serial Number:	None
Last Updated	7/3/2014 10:26:29 AM

Comments:

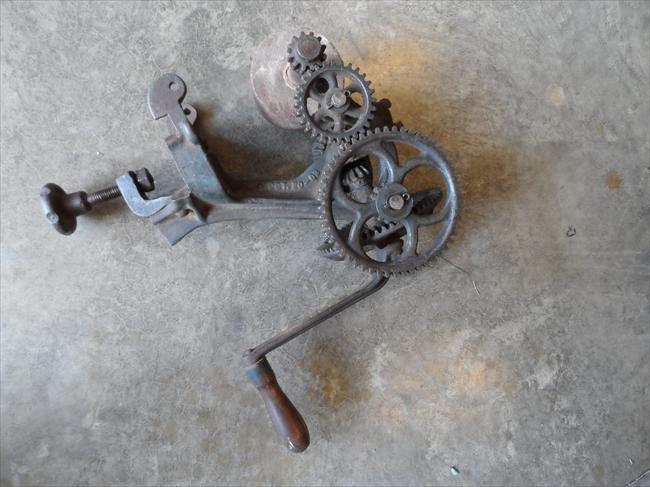

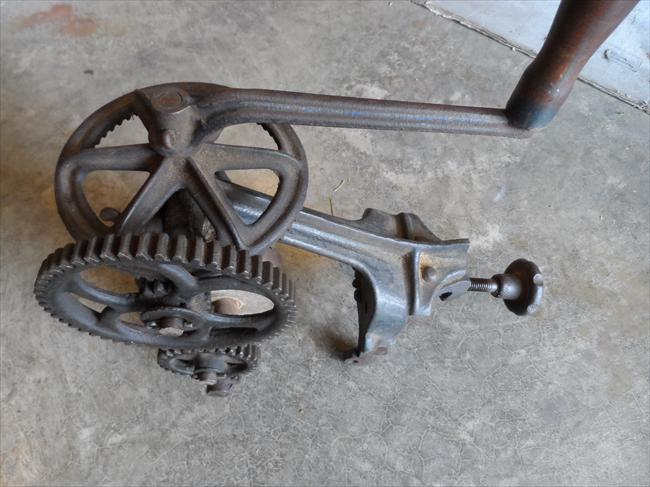

I picked this up at an antique shop in Grafton IL along the historical River Road. The seal on the grinder is one of those used by IH on their farm implements. It works perfectly.

Photo 1:

Comments:
Source: My photo's.

Direct Link
IMG Code

Photo 2:

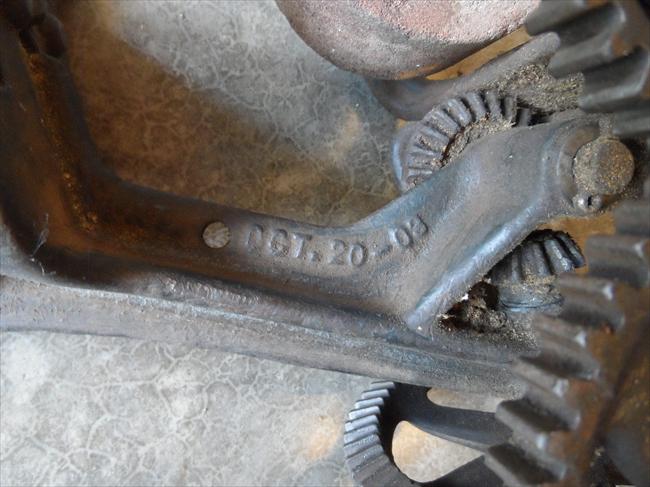

Comments: Patent date Oct 20, 1903.
Source:

Direct Link
IMG Code

Photo 3:

Comments:
Source:

Direct Link
IMG Code

Photo 4:

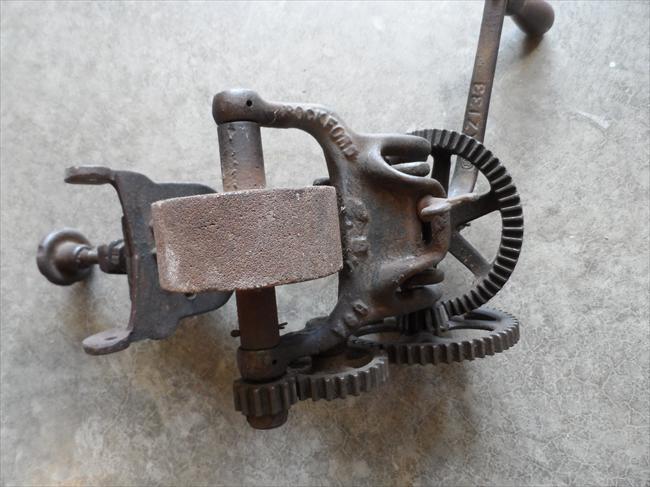

Comments: The wing nut on top controls the slide to engage or disengage the cam. When engaged the turning of the hand wheel results in the grinding wheel arm to rise and fall to sharpen the sickle saw.
Source:

Direct Link
IMG Code

Photo 5:

Comments:
Source:

Direct Link
IMG Code

Photo 6:

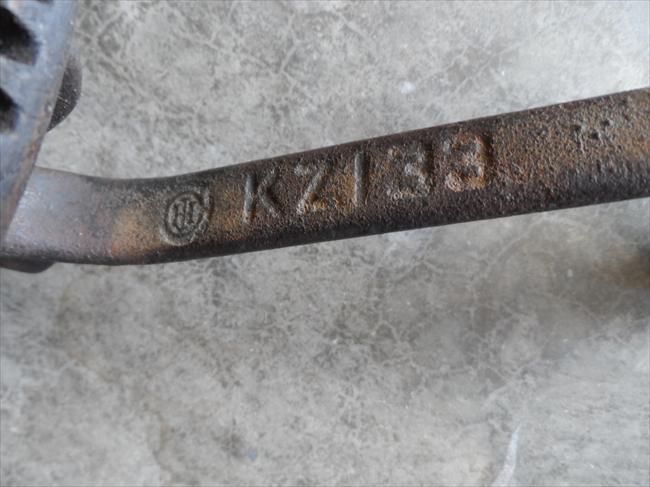

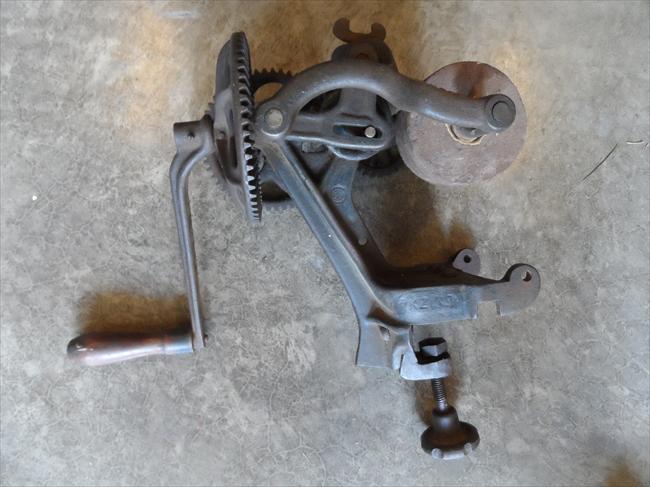

Comments: The IH seal is on the left encircled in a "C" representing the Chicago area factory. The KZ133 and KZ139 are, I'm assuming, parts numbers.
