Photo Index - E. M. Heald Machine Works - Heald Horizontal Mill with vertical head option

Machinery Photo Index

Manufactured/Badged by:
E. M. Heald Machine Works
Springfield, MO

True Manufacturer:
E. M. Heald Machine Works, Springfield, MO

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Mill, Horizontal
Machine Size:	30.5x6.5" table
Submitted By:	Stephen Heape

Machine Specifications
Description/Model:	Heald Horizontal Mill with vertical head option
Date of Manufacturer:	1950's
Serial Number:	9657
Last Updated	6/22/2014 1:15:47 PM

Comments:

This milling machine is a horizontal mill with an optional Heald vertical head attachment. I purchased it from a Craigslist post in my hometown. I plan to do a restoration on it eventually but plan to use it first to finish some other projects. It has the optional smaller table for increase clearance (2"). Longitudinal feed 20" - Traverse feed 6.5" - Vertical Feed 15" - no.9 B&S taper - approx. wt 2300pounds (and I believe it!) - 5hp 220 motor

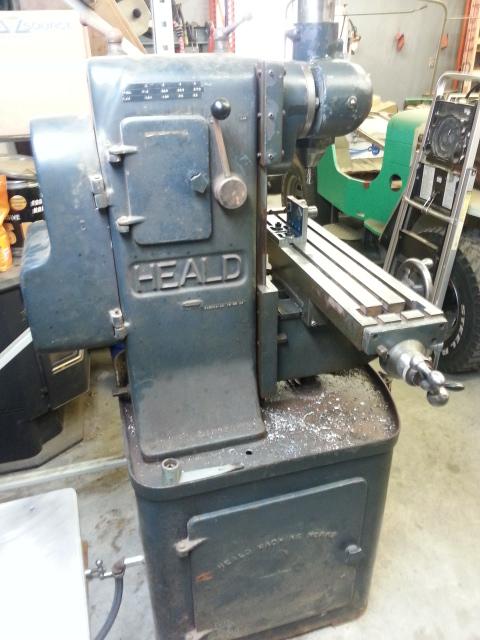

Photo 1:
