Photo Index - Champion Blower & Forge Co. - HAND CRANKED POST DRILL

Machinery Photo Index

Manufactured/Badged by:
Champion Blower & Forge Co.
Lancaster, PA

Machine Specifications
Machine Class:	Wood Working Machinery & Metal Working Machinery
Machine Type:	Drill Press
Machine Size:
Submitted By:	Joe Strefezza

Machine Specifications
Description/Model:	HAND CRANKED POST DRILL
Date of Manufacturer:
Serial Number:
Last Updated	1/12/2014 1:01:06 PM

Comments:

This machine has been fully restored by AMERICAN MACHINE of Shelby NC. It has a ratcheting mechanism which when engaged will lower the spindle with each turn of the crank. The amount and speed that the spindle lowers is adjustable. The lowering mechanism is easily disengaged by flipping a lever and this allows the spindle to remain at a set height. The 6" cast iron table is adjustable vertically and can swivel left or right A sweet upper arm builder.

Photo 1:

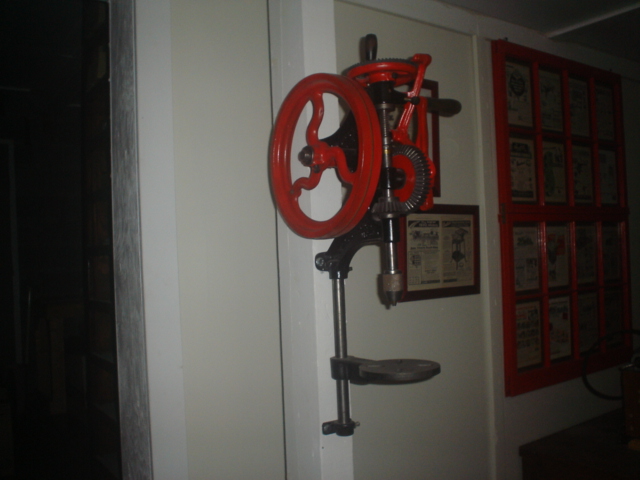

Comments: Post Drill showing fly wheel
Source:

Direct Link
IMG Code

Photo 2:

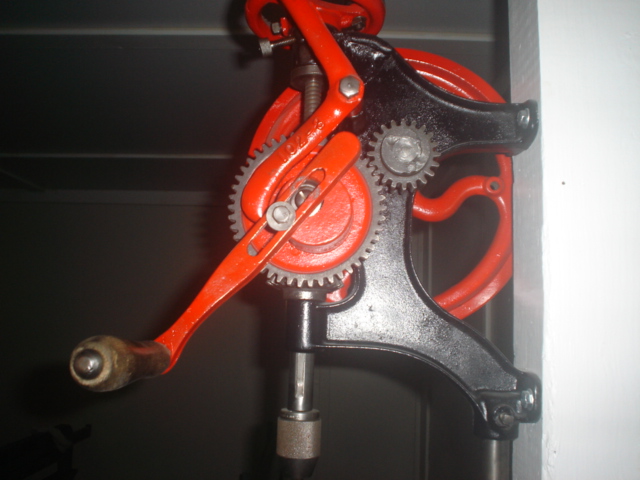

Comments: Post Drill showing Cranking assembly
Source:

Direct Link
IMG Code

Photo 3:

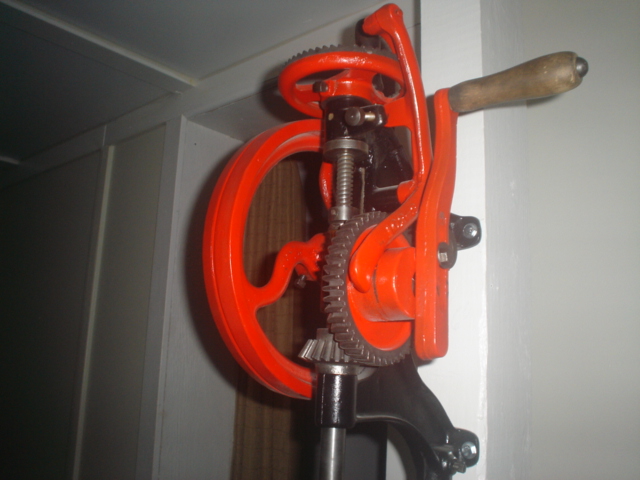

Comments: Close-up of lowering mechanism and adjustible hand crank
Source:

Direct Link
IMG Code

Photo 4:

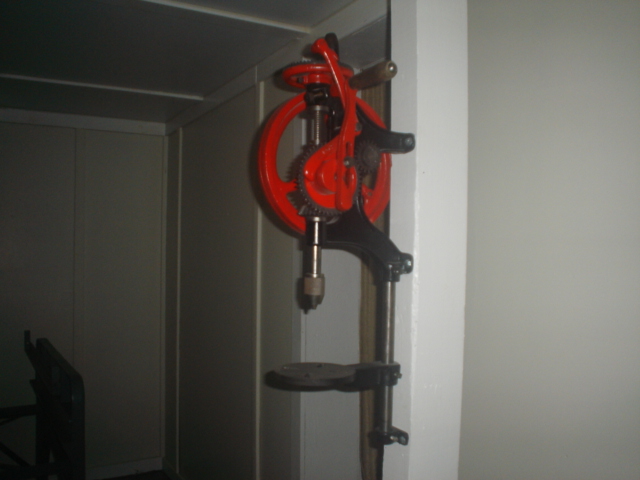

Comments: Knurled knob at top of photo adjusts the speed spindle drops
Source:

Direct Link
IMG Code

Photo 5:

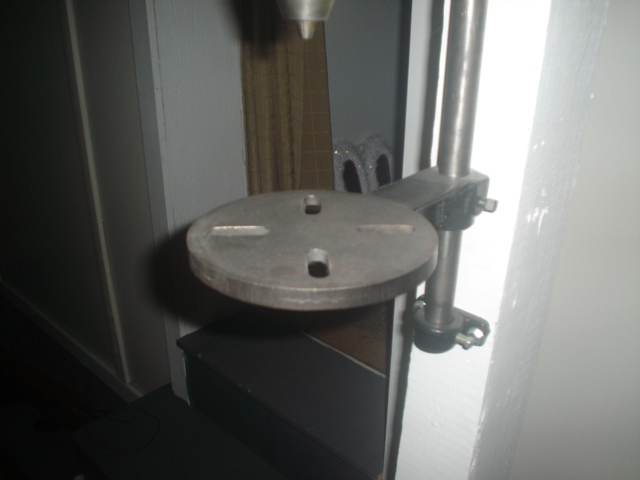

Comments: Close up of adjustable table
Source:

Direct Link
IMG Code

Photo 6:

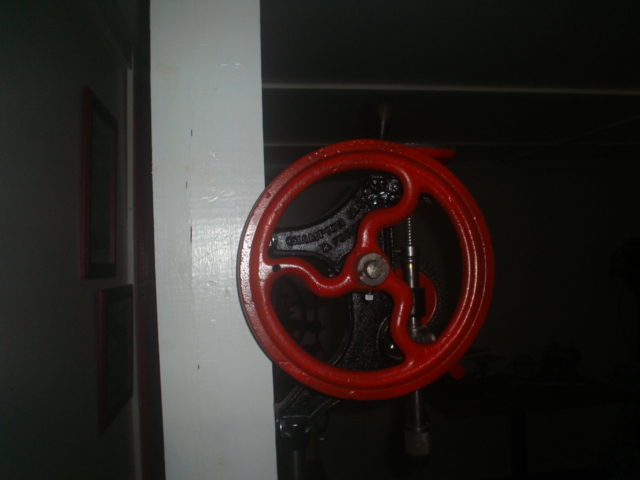

Comments: Fly wheel notice name cast in assembly
Source:

Direct Link
IMG Code
