Photo Index - United States Electrical Tool Co. - 10" Pedestal Grinder

Machinery Photo Index

Manufactured/Badged by:
United States Electrical Tool Co.
Cincinnati, OH; Miamitown, OH

Machine Specifications
Machine Class:	Metal Working Machinery
Machine Type:	Grinder, Bench
Machine Size:	10"
Submitted By:	John Olsen

Machine Specifications
Description/Model:	10" Pedestal Grinder
Date of Manufacturer:	1915 - 1920
Serial Number:	43663
Last Updated	6/14/2016 6:15:09 PM

Comments:

A friend of mine and I spotted this machine sitting with a large group of grinders at a machinery clearing house. Something about the shape of the cast iron base caught my eye so I purchased it. After I got it home and started researching the machine I was pleased to find that the company was still in business producing top quality grinders after 100 years! They were very friendly and informative and gave 1915 to 1920 as their best guess at the manufacture date.

Although the unit still ran smoothly, the motor winding was packed full of grease and the cloth insulation on the wiring was disintegrating. Apparently sometime in her life she had the original open bearings replaced with sealed and shielded bearings. But the maintenance department kept pumping grease into the fittings and with nowhere to go it backed up into the motor itself. Ugh! So we took the motor assembly to a professional rewind shop and they did a great job putting in new copper winding, bearings, and testing the motor. She runs wonderfully.

Photo 1:

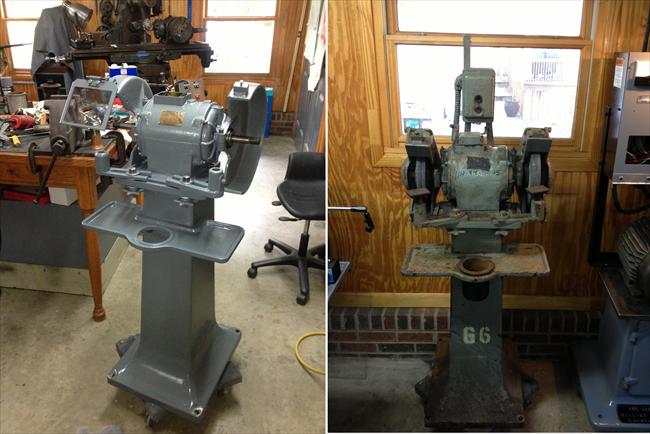

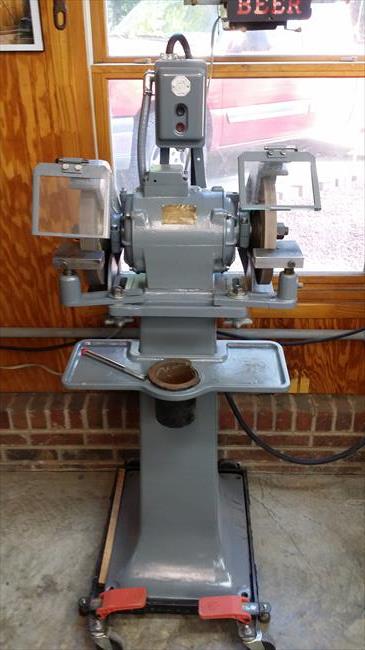

Comments: Finished unit. Note the switch assembly on top and the spark shields were added in the 1950's (best guess) due to new safety regs. We chose to leave them.
Source: John Olsen.

Direct Link
IMG Code

Photo 2:

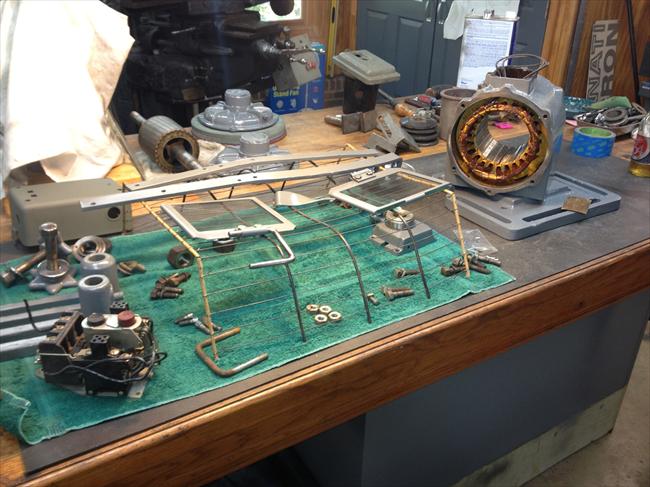

Comments: A fun before and after picture during rebuild.
Source: John Olsen

Direct Link
IMG Code

Photo 3:

Comments: Motor freshly rewound and parts ready for reassembly.
Source: John Olsen

Direct Link
IMG Code

Photo 4:

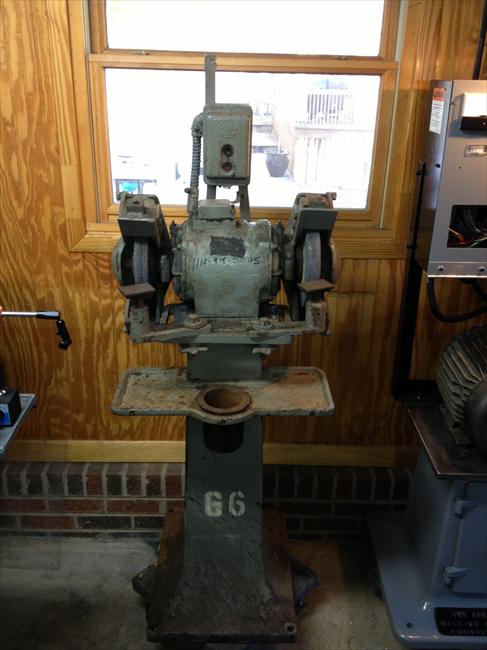

Comments: As found before rebuild.
Source: John Olsen

Direct Link
IMG Code

Photo 5:

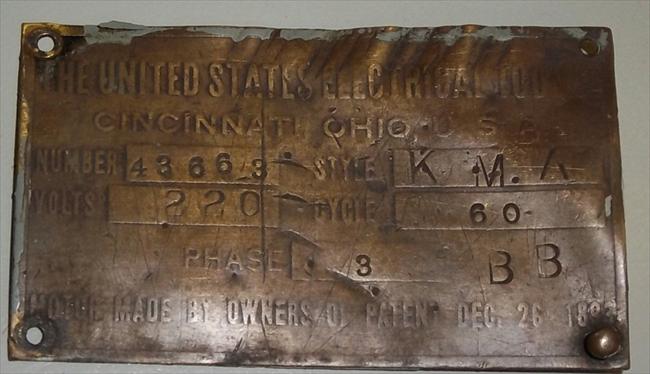

Comments: Original label with serial number. Note the patent date of 1893.
