Photo Index - Franklin Electric Co., Inc. - capacitor start, model C1554C1

Machinery Photo Index

Manufactured/Badged by:
Franklin Electric Co., Inc.
Bluffton, IN

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Motor
Machine Size:	3/4 HP, frame 5651
Submitted By:	Stanislav Vitha

Machine Specifications
Description/Model:	capacitor start, model C1554C1
Date of Manufacturer:	1950's ??
Serial Number:
Last Updated	6/17/2013 9:46:00 PM

Comments:

It was installed in a Yates American J-136 jointer from the 1950's that I purchased in 2012.
Most pictures are after disassembly, cleaning, bearing replacement and painting.
3450 RPM, single phase, 115/208-230V, 8/4 Amp

Photo 1:

Comments:
Source:

Direct Link
IMG Code

Photo 2:

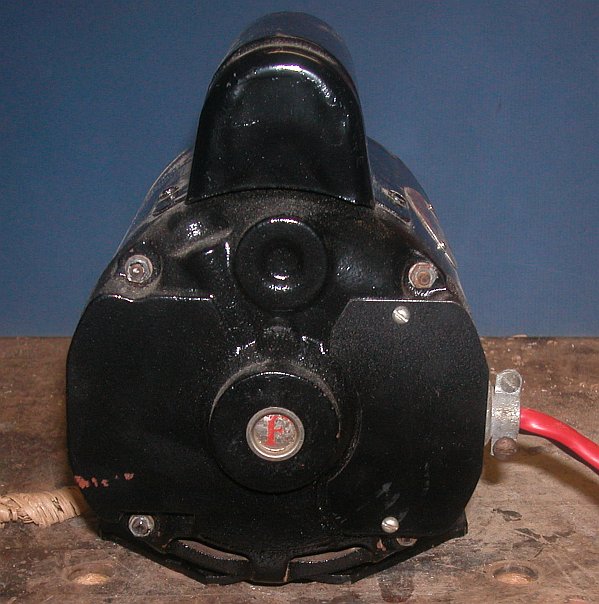

Comments: end bell view. I love the "F" on the cap
