Machinery Photo Index

Manufactured/Badged by:
Jack & Heintz, Inc.
Cleveland, OH

True Manufacturer:
Jack & Heintz, Inc., Cleveland, OH

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Motor
Machine Size:	1/4 HP
Submitted By:	Frank Seltzer

Machine Specifications
Description/Model:	Jack & Heintz (Jahco)
Date of Manufacturer:	LB
Serial Number:	N/A
Last Updated	6/2/2013 2:12:36 PM

Comments:

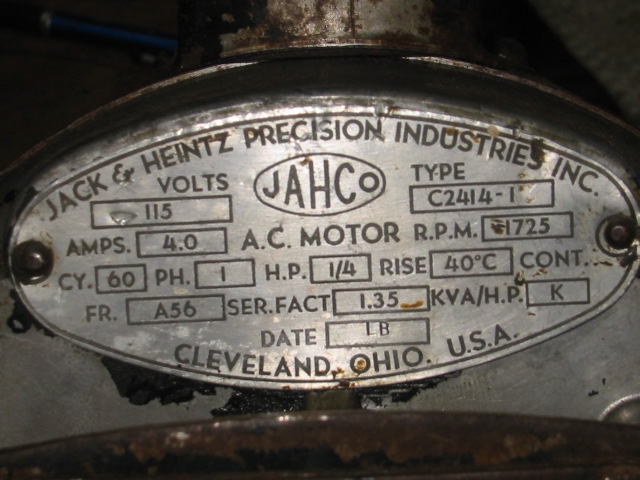

It's been a while and I don't remember with what (probably sold or traded) machine I got this motor. It's a 1/4 HP 1725 RPM. Date code is LB whatever that translates to.

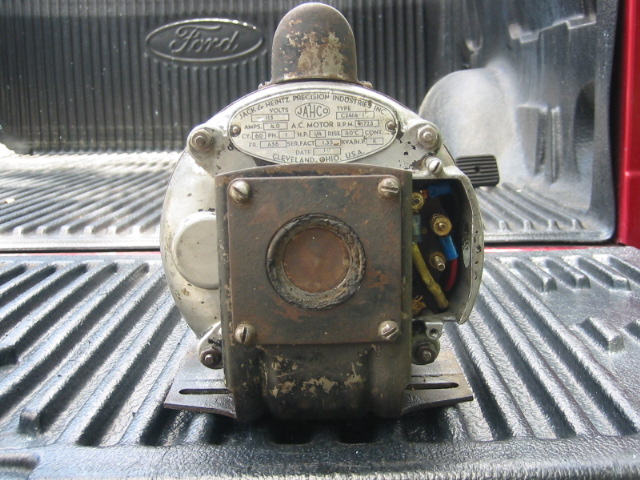

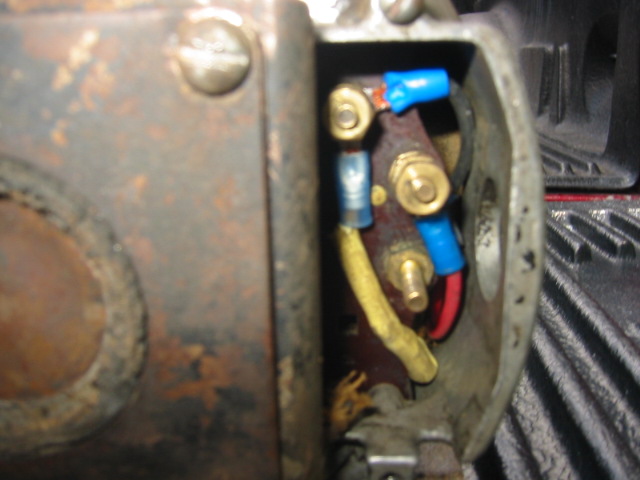

I took it apart to inspect and clean (making witness marks and a wiring diagram), let it sit for X days/weeks/months and somehow lost the wiring diagram. Bill Nance was kind enough to pull a Jahco motor from his stash and take pictures of the wiring so that I could get this one running again while retaining all the factory smoke. Thanks Bill!

Sorry, I didn't take any pre-disassembly photos but I think I removed about a pint or so of miscellaneous crap and corruption from inside. All interior wiring was rotten and cracked so I soldered in and heat shrunk all new.

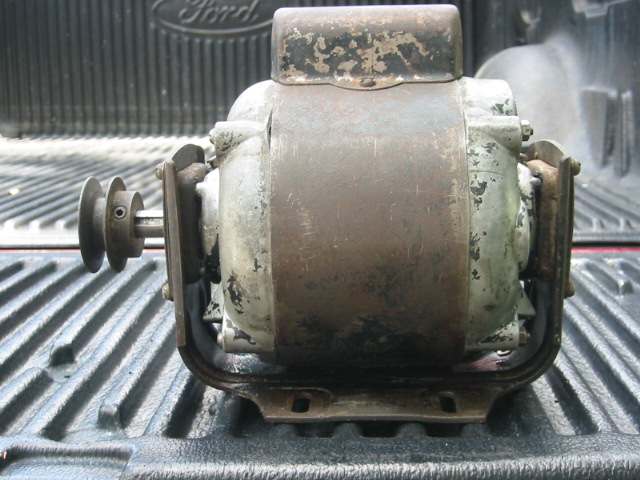

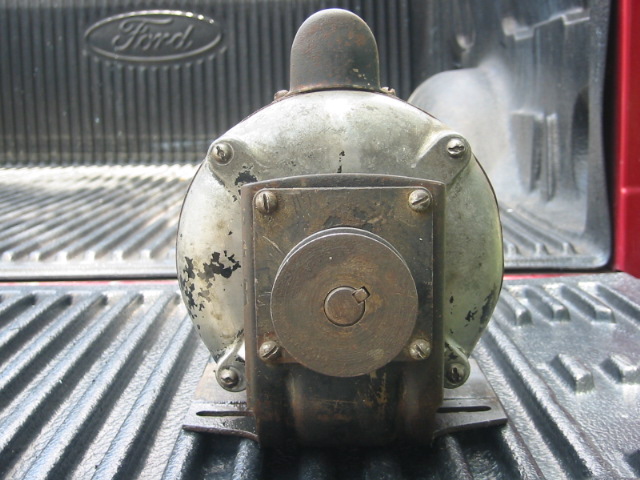

The motor itself is 7.25" long, 6.5" tall, and weighs 24 lbs. It has a surprising amount of torque and runs very smooth and is almost silent.

I didn't scrub and paint it since it's going into the rathole for now but I probably will when I need it for something. I'll add pictures of it painted and dolled up when that happens.
