Photo Index - Jack & Heintz, Inc. - small sleeve bearing

Machinery Photo Index

Manufactured/Badged by:
Jack & Heintz, Inc.
Cleveland, OH

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Motor
Machine Size:	1/3 hp
Submitted By:	Bill Nance

Machine Specifications
Description/Model:	small sleeve bearing
Date of Manufacturer:	??
Serial Number:
Last Updated	5/21/2013 11:21:10 AM

Comments:

I picked up this motor in 2010, powering a small 6" jointer. Discussion can be found at http://www.owwm.org/viewtopic.php?f=1&t=77511. After cleaning up and repainting, it is a very nice small motor, as quiet and smooth as I've seen. It has a very interesting motor mount assembly that is shown below.

Photo 1:

Comments: motor tag, before restoration
Source:

Direct Link
IMG Code

Photo 2:

Comments:
Source:

Direct Link
IMG Code

Photo 3:

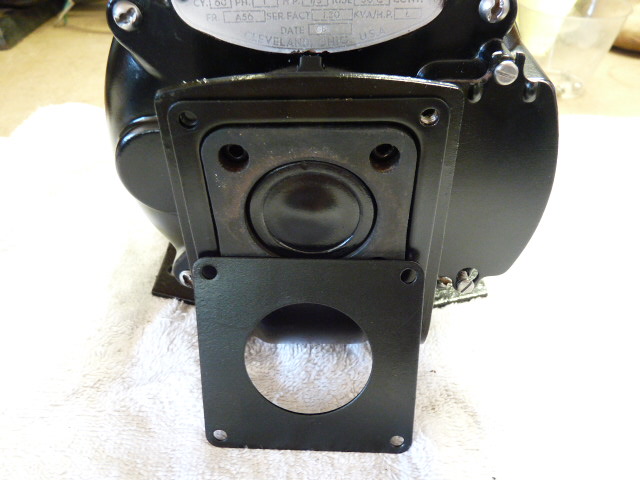

Comments: mount assembly parts
