Photo Index - W. A. Patrick - Pattern tracer lathe.

Machinery Photo Index

Manufactured/Badged by:
W. A. Patrick
Ludlow, VT

True Manufacturer:
W. A. Patrick, Ludlow, VT

Machine Specifications
Machine Class:	Wood Working Machinery
Machine Type:	Lathe, Wood
Machine Size:	16" throw by 7ft length
Submitted By:	Daniel Grinnell

Machine Specifications
Description/Model:	Pattern tracer lathe.
Date of Manufacturer:	Patent date of Feb 14, 1860
Serial Number:	Not found yet.
Last Updated	2/21/2013 9:27:09 PM

Comments:

I bought this lathe at the "Air Works" auction in Kidron Ohio on Feb 23, 2013. The other bidder actually wanted another lathe parked right next to this one. We found out they came together and he offered this one to me. I took it.

Photo 1:

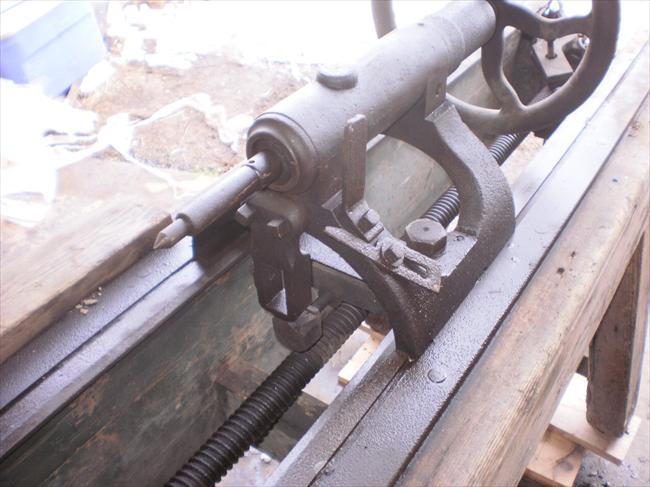

Comments: Tail stock, shows lead screw under, iron covered ways.
Source: My camera.

Direct Link
IMG Code

Photo 2:

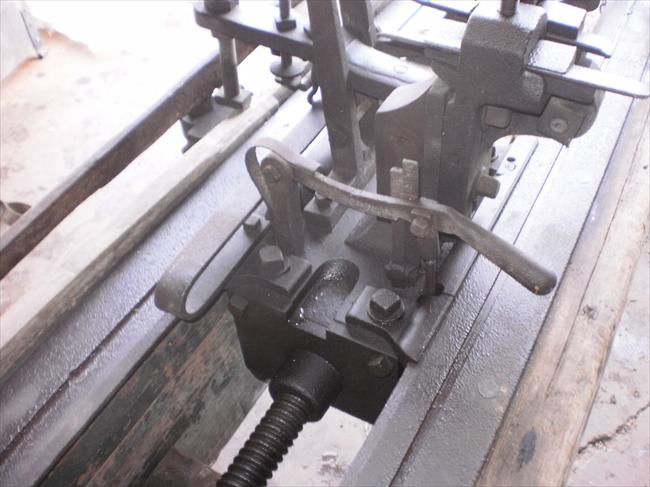

Comments: this is the carriage assembly. the lever on the right is what engages the half nuts. lead screw is clearly visible and is approx 1 1/4" diameter.
Source: My camera.

Direct Link
IMG Code

Photo 3:

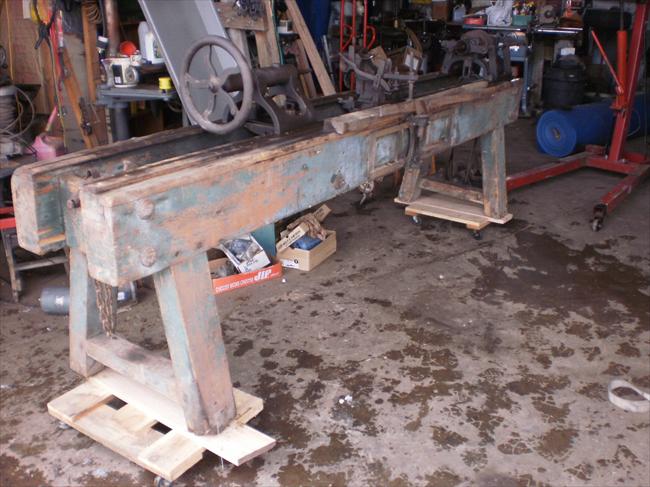

Comments: As you can see this is a large lathe.Wood beams are 4X8 laninated beams I can barely lift the tail end, certainly not the head-end. Frame is bolted together with thru-bolts in several places, it does have some looseness, most likely from dry wood. The lat
Source: My camera.

Direct Link
IMG Code

Photo 4:

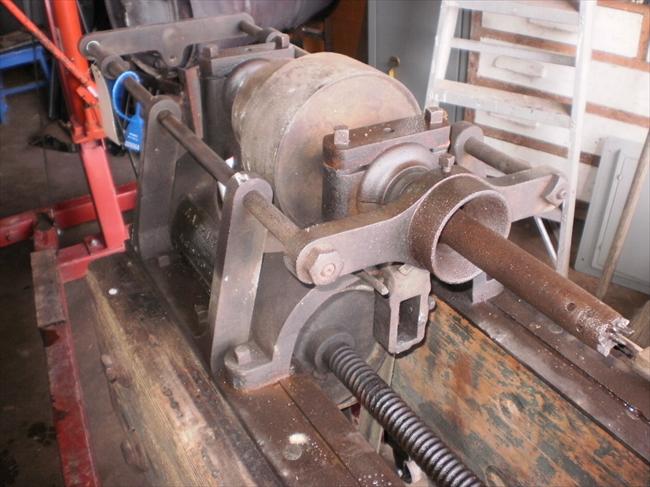

Comments: Headstock,the round rods with the brace/guide across the spindle slides back and forthabout a foot. The part surrounding the spur appears to be for centering a cone shaped work piece.
